vibration screen machine for separate black soldier fly larvae

Availability:
Quantity:

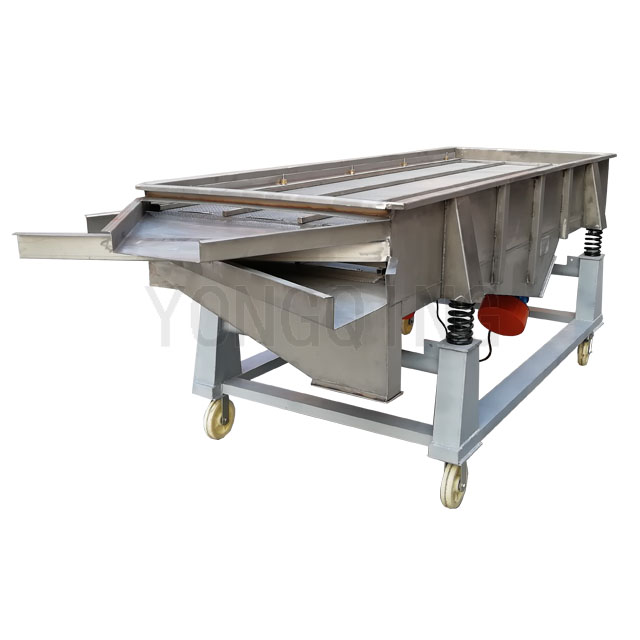

vibration screen machine for separate black soldier fly larvae



YongQing DZSF series linear vibrating screen machine is a electric vibrating machine with sieves. this vibrating screen mainly used for sizing/sorting different size of particles, to remove fine dust, to separate oversize impurities ,to sorting sizes etc.


The DZSF series vibro screen separator is widely used for black sodier fly (BSF) larvae separation process. to separate bsfl from frass or substrate. the linear vibrator screen separator keep the larvae and frass move forward on the screen and separate them by screen vibration, then discharge from individual outlets

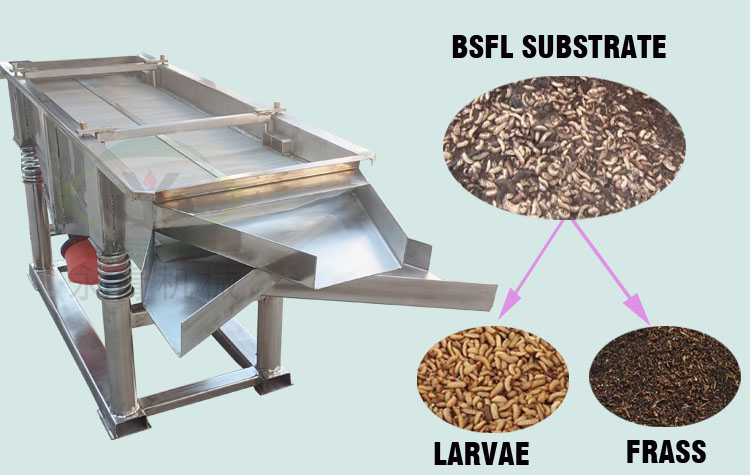

BSF LARVAE SEPARATOR


Mostly we make the bsf larvae screen separator stainless steel 304 structure materail, or at least contact part stainless steel 304 structure material, to make it long service life, especially for moist processed raw materials.

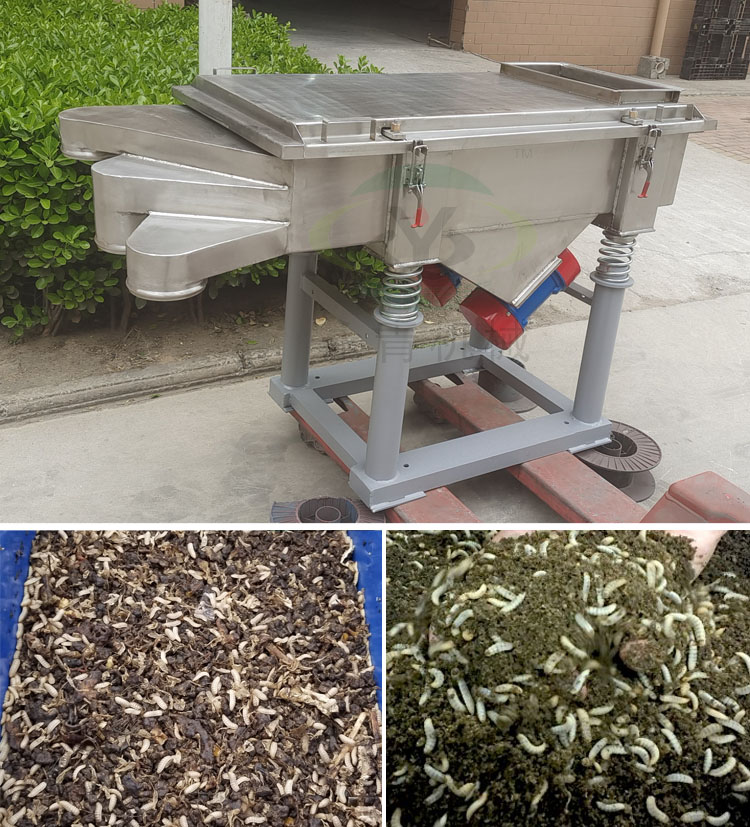

bsfl screen separator


To separate black soldier fly larvae from the feedstock, customers usually use round perforated hole mesh screens or woven wire square mesh screens.

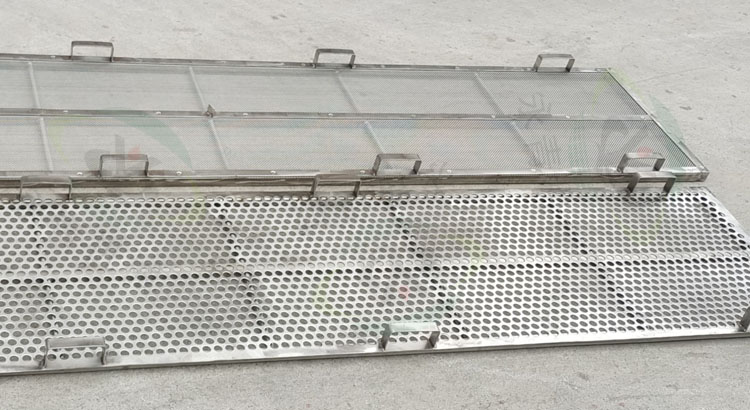

replacement screens


There are various size models of the BSFL vibro screen for different process capacities, please contact to get suitable screen separator machine.

Model

Screen layer

Power(KW)

Screen size(mm)

Mesh size

Rotate speed

(rpm)


Double amplitude

(mm)

Inclined angle

(°)

DZSF-612

1—5

0.37*2

600×1200

#2—#325


960







6-10

0—10


DZSF—520

0.37*2

500×2000

DZSF—525

0.37*2

500×2500

DZSF-1020

0.75*2

1000×2000

DZSF—1025

0.75*2

1000×2500

DZSF—1030

1.1*2

1000×3000

DZSF—1224

1.5*2

1200×2400

DZSF—1525

1.5*2

1500×2500

DZSF—1530

2.2*2

1500×3000


packing
