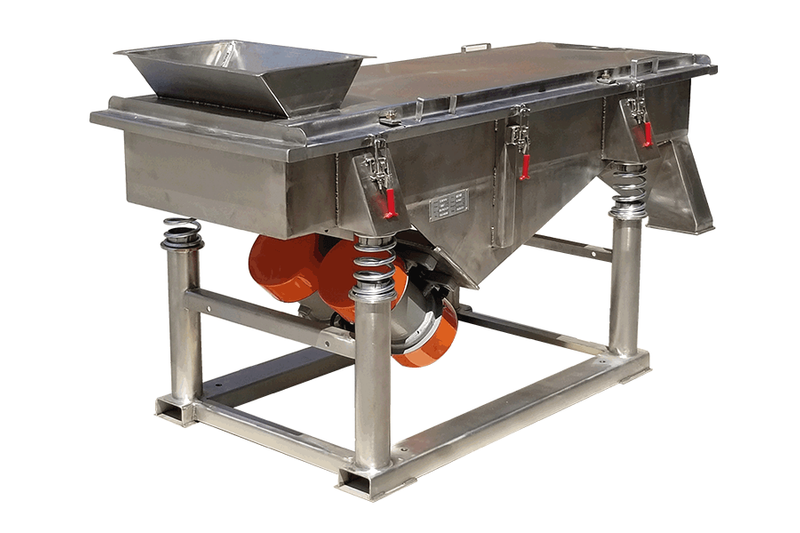

Linear Vibration Sieve

Our linear vibration sieve is another kind of multi-layer fine screening machinery with greater capacity. It can support 5 decks. Any dry material with a diameter of 0.074mm-20 mm could be handled. It is widely used in quartz sand, limestone and dolomite milling production line. It provides a larger capacity for micro powder screening.

Principle

Linear vibration sieve uses dual- motors as vibration source, making materials be tossed and move forward in a straight line on the screen surface. There are several balls on the bottom of the screen frame hit each other when vibrating, which can clear screen cloth and avoid blocking effectively.

The eccentric blocks driven by the motors could provide centrifugal force; make the materials moves forward along the linear frame. The material will move forward quickly and penetrate the screen in a fluffy state.

Features

1. Easy operation and great capacity

2. Excellent screening precision, over 95% screening efficiency;

2. With anti-blocking device

3. No pollution, low noise

4. Uniform feeding system

5. Customization support

It has 3 kinds of material and 1-5 layers for choice.

a. Full stainless steel

b. Contact part stainless steel

c. Full carbon steel

Parameters

Note: The capacity refers to bulk density 1.5t/m3, 1 layer with mesh size 5mm.
