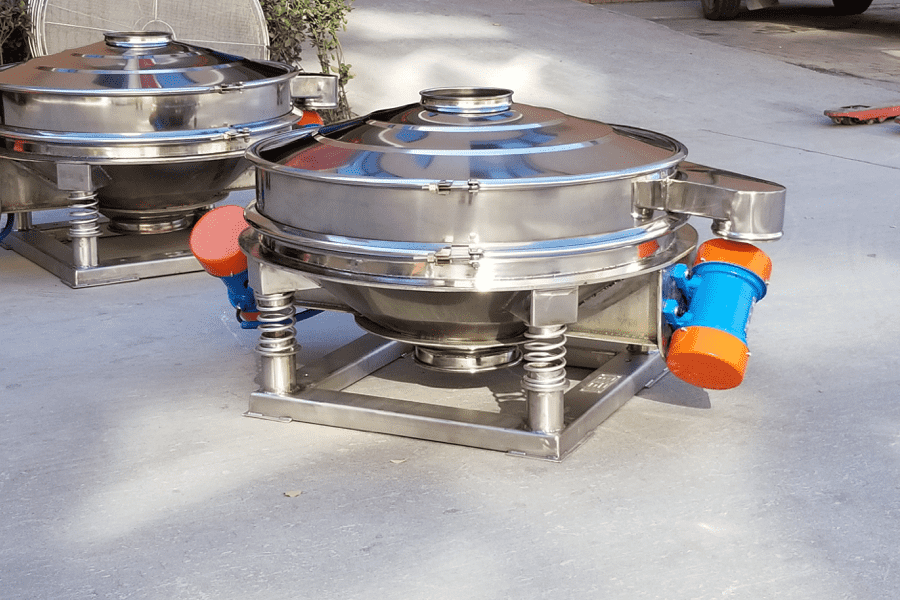

ZPS series straight-flo vibration sieve is a high efficient impurity-removing screening and filtering equipment. It is designed with 1 layer, and the lower discharge hole is at the center of machine, which aimed to higher efficiently removing impurity from material, then improve the product quality.
This sieve is widely used in removing impurity of flour, sugar, spice, sanitary food application, medicine powder, chemical powder, solid-liquid separation, etc.
Compact Structural Design
The discharge hole is under the machine, adopting a compact structural design, which takes less installation space. But its effective screening area is bigger, which make it have a larger capacity.
Greater Capacity
Single layer and straight-flo structure design make it more efficient for removing impurity and separating solid-liquid. The vibrator motor is installed separator’s side, transmission of vibration force is more directly, the rubber spring suspension allow more vibration to transmit directly to the surface of screen cloth, which make the material more easier and faster pass the screen cloth to increase capacity.
Removing Impurity
Compared with other sieve machine, the straight-flo sieve has more advantage at discharge rate. The oversize and undersize could be discharged faster. It aims to removing impurity to increase the qualification rate and improve product quality.
Rapid Replacing Screen Cloth
It adopts a very simple design to tension and install screen cloth, it is very easy to replace. Two staff could finish replacing in 10 minutes, which reduce the downtime and increase the productive efficiency.
Sanitary production line
Connected with silicon soft hose, it can realize full-sealing working. No dust, no float powder, no liquid splashing, it is very suitable for sanitary production line, dust-free workshop, and also very helpful to safeguard your staff healthy and product quality.
Easy mobility
Four nylon mobile wheels are mounted at the basement. The user could move it safely and easily to ideal location, without using any other extra equipment and tool, which is a convenient and practical feature.
Parameters
Model | ZPS- 500 | ZPS- 600 | ZPS- 800 | ZPS- 1000 | ZPS- 1200 | ZPS- 1500 | ZPS- 1800 | ZPS- 2000 |
Diameter(mm) | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Layer | 1 | |||||||
Screen Diameter (mm) | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 |
Screen mesh (mm) | 0.4-20 | |||||||
Feeding size(mm) | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
RPM | 1460 | |||||||
Power(KW) | 0.12 | 0.18 | 0.36 | 0.5 | 1.1 | 1.1 | 1.5 | 1.5 |
ZPS series straight-flo vibration sieve is a high efficient impurity-removing screening and filtering equipment. It is designed with 1 layer, and the lower discharge hole is at the center of machine, which aimed to higher efficiently removing impurity from material, then improve the product quality.
This sieve is widely used in removing impurity of flour, sugar, spice, sanitary food application, medicine powder, chemical powder, solid-liquid separation, etc.
Compact Structural Design
The discharge hole is under the machine, adopting a compact structural design, which takes less installation space. But its effective screening area is bigger, which make it have a larger capacity.
Greater Capacity
Single layer and straight-flo structure design make it more efficient for removing impurity and separating solid-liquid. The vibrator motor is installed separator’s side, transmission of vibration force is more directly, the rubber spring suspension allow more vibration to transmit directly to the surface of screen cloth, which make the material more easier and faster pass the screen cloth to increase capacity.
Removing Impurity
Compared with other sieve machine, the straight-flo sieve has more advantage at discharge rate. The oversize and undersize could be discharged faster. It aims to removing impurity to increase the qualification rate and improve product quality.
Rapid Replacing Screen Cloth
It adopts a very simple design to tension and install screen cloth, it is very easy to replace. Two staff could finish replacing in 10 minutes, which reduce the downtime and increase the productive efficiency.
Sanitary production line
Connected with silicon soft hose, it can realize full-sealing working. No dust, no float powder, no liquid splashing, it is very suitable for sanitary production line, dust-free workshop, and also very helpful to safeguard your staff healthy and product quality.
Easy mobility
Four nylon mobile wheels are mounted at the basement. The user could move it safely and easily to ideal location, without using any other extra equipment and tool, which is a convenient and practical feature.
Parameters
Model | ZPS- 500 | ZPS- 600 | ZPS- 800 | ZPS- 1000 | ZPS- 1200 | ZPS- 1500 | ZPS- 1800 | ZPS- 2000 |
Diameter(mm) | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Layer | 1 | |||||||
Screen Diameter (mm) | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 |
Screen mesh (mm) | 0.4-20 | |||||||
Feeding size(mm) | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
RPM | 1460 | |||||||
Power(KW) | 0.12 | 0.18 | 0.36 | 0.5 | 1.1 | 1.1 | 1.5 | 1.5 |
