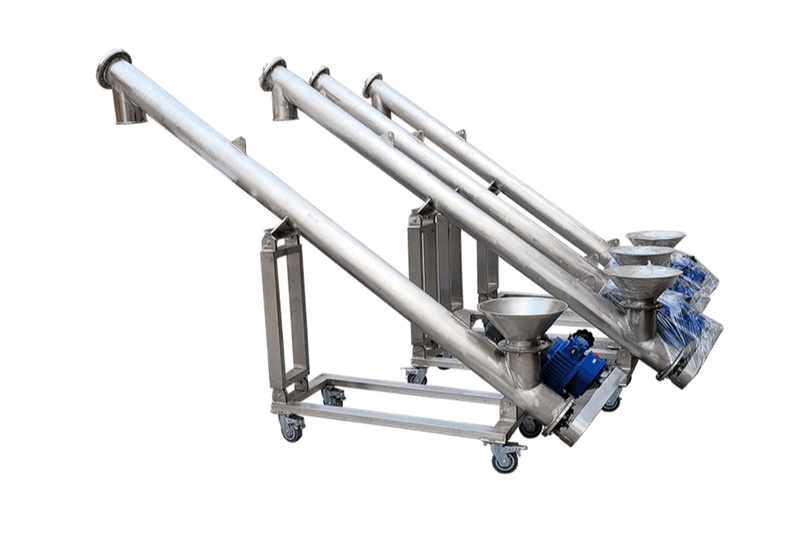

The LS series screw conveyor adopts the Chinese equivalent standard of ISO 1050-75. The hanger bearing comes with outside mounted grease cup, facilitating the replenishing of grease. The material inlet and outlet can be flexibly installed, while an electric outlet is optional for automatic control. Besides, a speed monitoring and alarming device can be added if you want.
Feature
1. Adjustable Height by adding a self-developed lifting gear
2. Flexible design of inlet and outlet
3. Stepless speed regulation of the reducer
4. Easy mobility with wheels
5. Environment friendly
6. Wide application
Parameters
Model | Spiral diameter (mm) | Pitch (mm) | Spiral Rotating speed(r/min) | Capacity (m3/h) | Power (kw) | |
LS133 | 133 | 133 | 133 | 5.0 | 2.2---18.5 | ≤ 45° |
LS160 | 160 | 160 | 112 | 8 | ||
LS219 | 219 | 219 | 100 | 11 | ||
LS250 | 250 | 250 | 90 | 22 | ||
LS300 | 300 | 300 | 85 | 30 | ||
LS315 | 315 | 315 | 80 | 34 |
