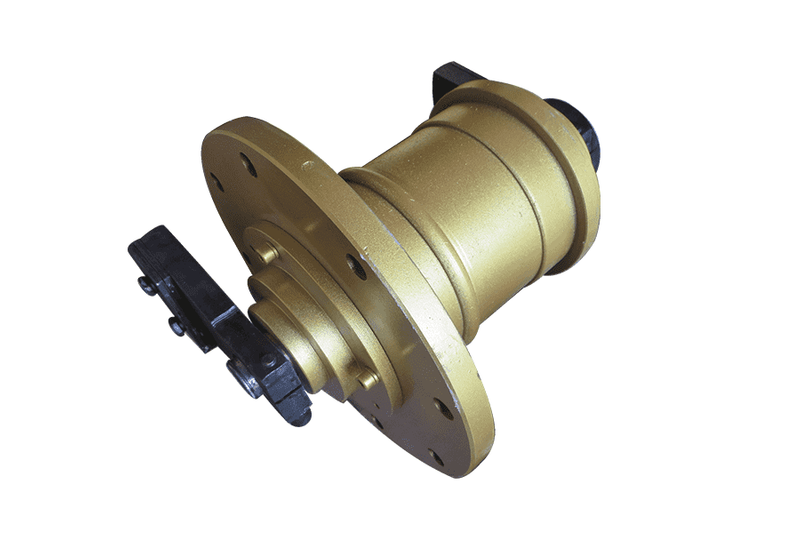

YUZL series vertical vibrator motor uses advanced single-flange structural, sophisticated design, reliable and safety operation. It owns high durability.
Powerful exciting force
It has a wide range of centrifugal force from 3KN to 50KN.
Longer service time
High purity copper wire is used for better performance of the motor compared with the Normal Aluminum coil.
Lower heat
The rotor and stator are made of excellent silicon steel sheet. The heat dissipation is limited, which enables the 24-hour continuous working available.
Durable bearing
Durable ZWZ bearing or HRB bearing guarantee the motor more stable operation and longer service time. Import NSK bearing or SKF bearing could be customized and mounted too according to clients requirements.
Higher adaptation
It could be used in extreme temperate from low temperature -40 degrees to high temperature 40 degrees. The fine powder environment could be used too due to its perfect
Sealing structure, environment-friendly and customization service support
Parameters
Model | Force (N) | Frequency (rpm) | Power (KW) | Current (A) |
YZUL-3-4 | 3000 | 1460 | 0.18 | 0.6 |
YZUL-5-4 | 5000 | 1460 | 0.25 | 0.75 |
YZUL-8-4 | 8000 | 1460 | 0.55 | 1.5 |
YZUL-10-4 | 10000 | 1460 | 0.75 | 1.85 |
YZUL-15-4 | 15000 | 1460 | 1.1 | 2.85 |
YZUL-30-4 | 30000 | 1460 | 1.5 | 3.6 |
YZUL-50-4 | 50000 | 1460 | 2.2 | 5.1 |
Rated voltage: 110-550V Rated frequency: 50/60Hz Phase: Three
Protective grade:IP55 Insulation grade: B Work system：SI
Ambient temperature: below 40°C Altitude: below 1000m
