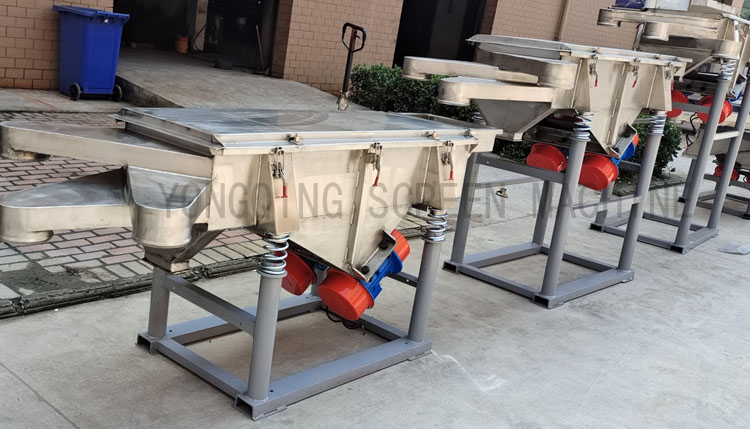

YONGQING DZSF Series vibrating screen, is a high efficiency screen vibrator ,widely used for almond processing.
The vibrating screen separator is an important part in the almond processing line. usually customers use a series of screen separator to sorting almonds, comes with different mesh size screens.
The vibratory screen will sorting almonds into different fractions, like shells, hulled amonds, unhulled almonds etc. and will discharge these from individual outputs.
Except for sorting almonds, the DZSF vibrating screen separator also used for sorting cashew nuts, walnuts, macadamia nuts etc.
Almond sorting machine data sheet
Model | Screen layer | Power （KW） | Screen size（mm） | Mesh size | Rotate speed (rpm) |
Double amplitude （mm） | Inclined angle （°） |
DZSF－612 | 1—5 | 0.37*2 | 600×1200 | #2—#325
| 960
|
6-10 | 0—10
|
DZSF—520 | 0.37*2 | 500×2000 |
DZSF—525 | 0.37*2 | 500×2500 |
DZSF－1020 | 0.75*2 | 1000×2000 |
DZSF—1025 | 0.75*2 | 1000×2500 |
DZSF—1030 | 1.1*2 | 1000×3000 |
DZSF—1224 | 1.5*2 | 1200×2400 |
DZSF—1525 | 1.5*2 | 1500×2500 |
DZSF—1530 | 2.2*2 | 1500×3000 |

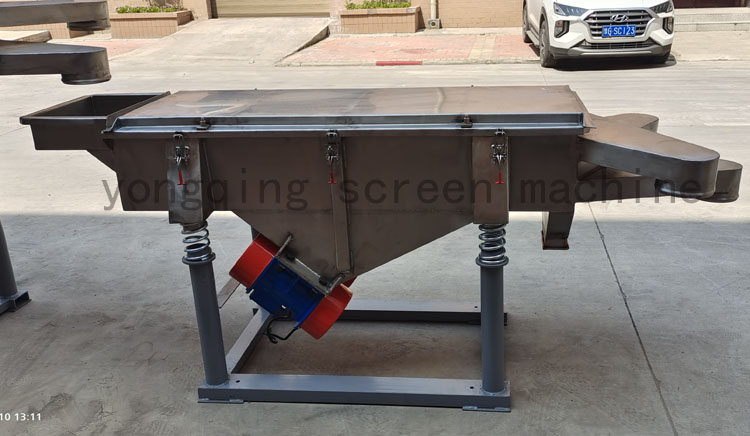

Almond sorting machine specifications 2000X500MM model
almond sorting screen machine
screen dimension: 2000*500mm
screen stage: 3 layers
outputs: 4outputs
screen aperture size: 15mm, 9mm, 5mm
contact part stainless steel 304 structure
power: 0.37kw*2
electric voltage: 220V, 240V, 380V, 415V etc.

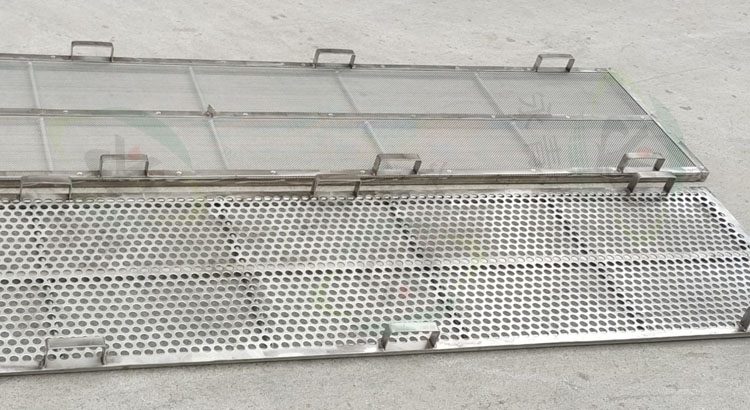

Spare screens for replacement
customers may need a series of screens with different screen mesh hole size, to process different nuts like almond , coffee beans, walnut etc. so they can order spare screens to make replacement when there is a need.
