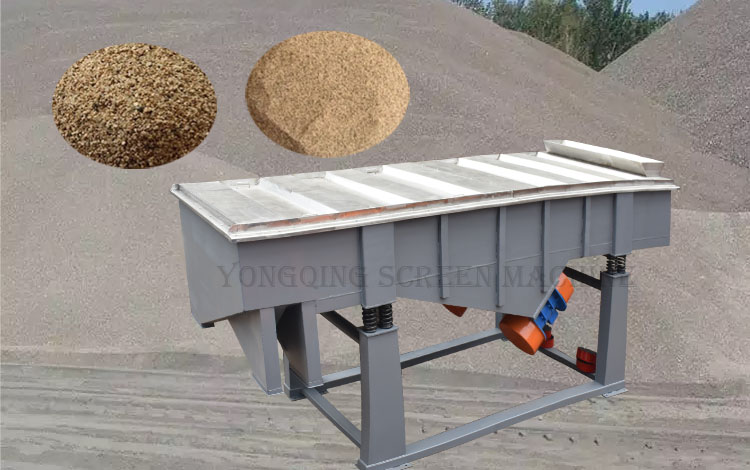

single deck vibration sieve for dry river sand
YONGQING DZSF Series single deck vibration sieve machine is a high efficiency vibrotary screening machine which is widely used for sand screening industries. either for screening coarse sand or for sieving fine sand, the DZSF Series vibrating sieve has a better screening performance. what's more , it also used for separate stones and sand. customers can choose single screen layer or multi screen layers sieve machine as per specific screening requriement.
Different size models of sand screening machine available to meet different process capacity
YongQing Screen is factory manufacturer, if you need special dimension of sand screening machine which is not listed in the following chart, please contact us to get customized screen vibrator.
Model | Screen layer | Power KW) | Screen size(mm) | Mesh size | Rotate speed (rpm) |
Double amplitude (mm) | Inclined angle (°) |
DZSF-612 | 1—5 | 0.37*2 | 600×1200 | #2—#325
| 960
|
6-10 | 0—10
|
DZSF—520 | 0.37*2 | 500×2000 | |||||
DZSF—525 | 0.37*2 | 500×2500 | |||||
DZSF-1020 | 0.75*2 | 1000×2000 | |||||
DZSF—1025 | 0.75*2 | 1000×2500 | |||||
DZSF—1030 | 1.1*2 | 1000×3000 | |||||
DZSF—1224 | 1.5*2 | 1200×2400 | |||||
DZSF—1525 | 1.5*2 | 1500×2500 | |||||
DZSF—1530 | 2.2*2 | 1500×3000 |

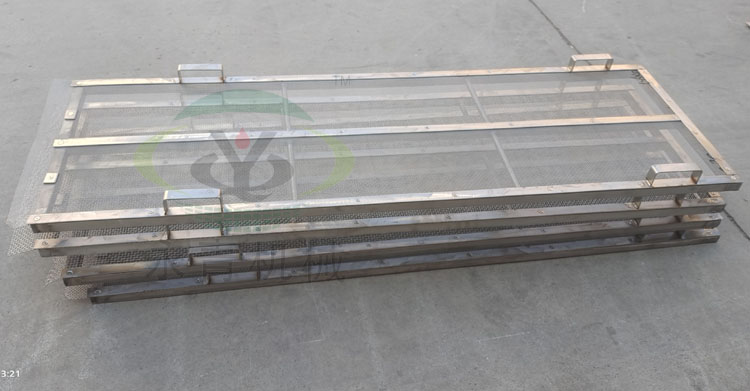

The screens of the sand screening machine are interchangeable, customers can easy to replace new screens by themselves. addtitional replacement screens available if there is a need.
Plywood case package
