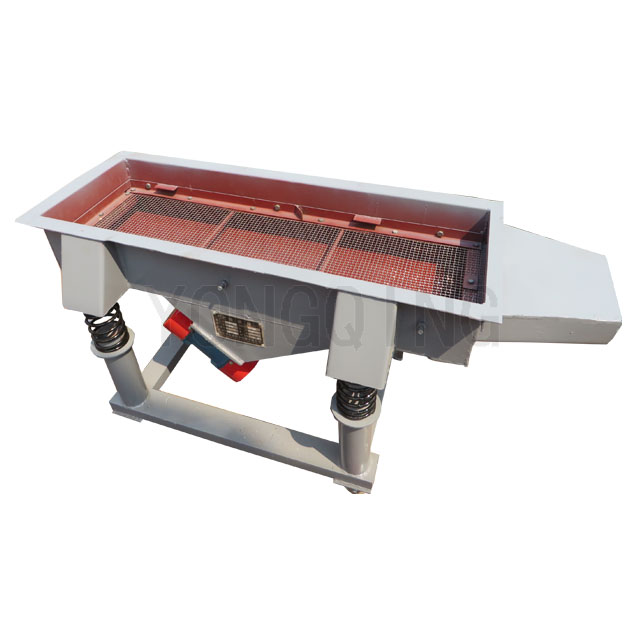

sand screening vibration sieve machine

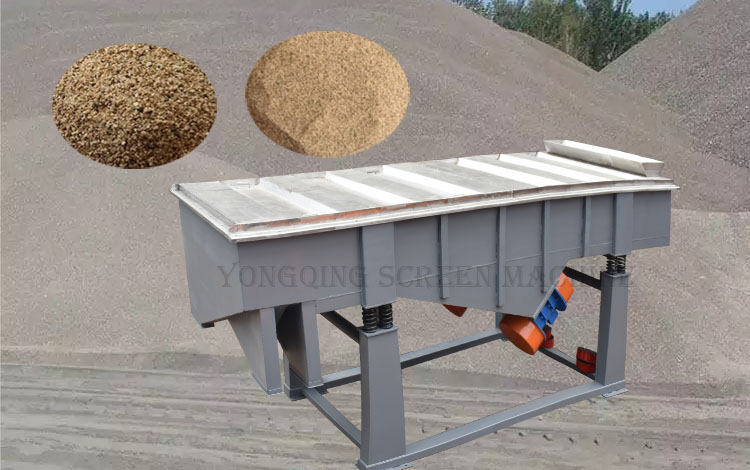

YONGQING DZSF Series sand screening vibration sieve machine is a high efficiency vibrotary screening machine which is widely used for sand screening industries. either for screening coarse sand or for sieving fine sand, the DZSF Series vibrating sieve has a better screening performance. what's more , as a vibrator size separator, it also used for separate small stones particles and sand. customers can choose single screen layer or multi screen layers sieve machine as per specific screening requriement.
Different size models of sand screening machine available to meet different process capacity
YongQing Screen is factory manufacturer, if you need special dimension of sand screening machine which is not listed in the following chart, please contact us to get customized screen vibrator.
Model | Screen layer | Power（KW） | Screen size（mm） | Mesh size | Rotate speed (rpm) | Double amplitude （mm） | Inclined angle （°） |
DZSF－612 | 1—5 | 0.37*2 | 600×1200 | #2—#325 | 960 | 6-10 | 0—10 |
DZSF—520 | 0.37*2 | 500×2000 | |||||
DZSF—525 | 0.37*2 | 500×2500 | |||||
DZSF－1020 | 0.75*2 | 1000×2000 | |||||
DZSF—1025 | 0.75*2 | 1000×2500 | |||||
DZSF—1030 | 1.1*2 | 1000×3000 | |||||
DZSF—1224 | 1.5*2 | 1200×2400 | |||||
DZSF—1525 | 1.5*2 | 1500×2500 | |||||
DZSF—1530 | 2.2*2 | 1500×3000 |

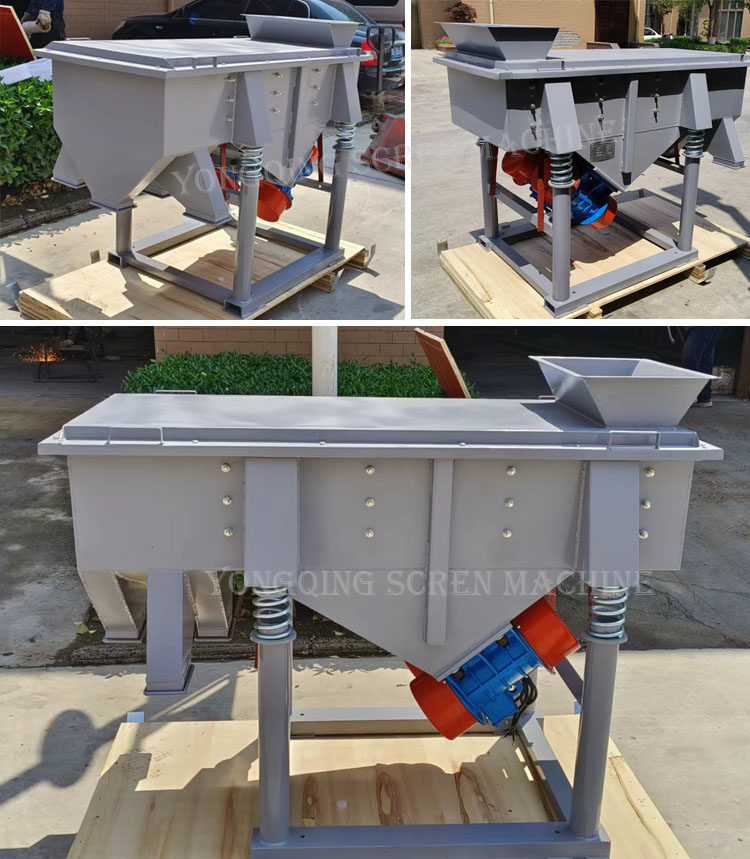

DZSF612 sand vibration sieve specifications
screen dimension: 600 x 1200mm
screen layer: 3 layers
output: 4 outputs
mesh size: 0.02-20mm
power: 0.37kw*2
dual amplitude: 6-10mm
structure: carbon steel/mild steel
voltage: 380V, 50Hz, 3phase or as requries

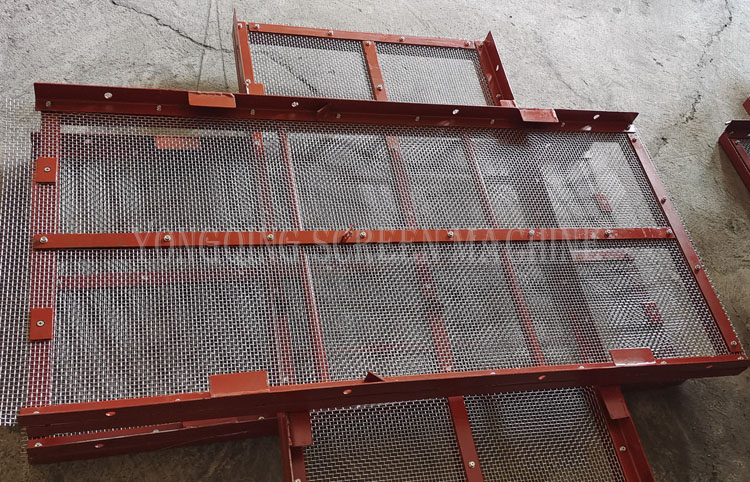

Interchangeable Screens
The screens of the sand screening machine are interchangeable, customers can easy to replace new screens by themselves. addtitional replacement screens with various screen mesh sizes available as per needs.
