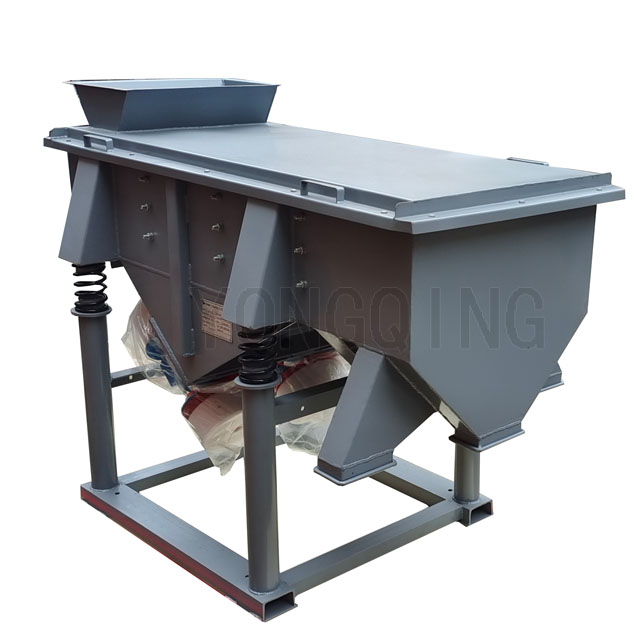

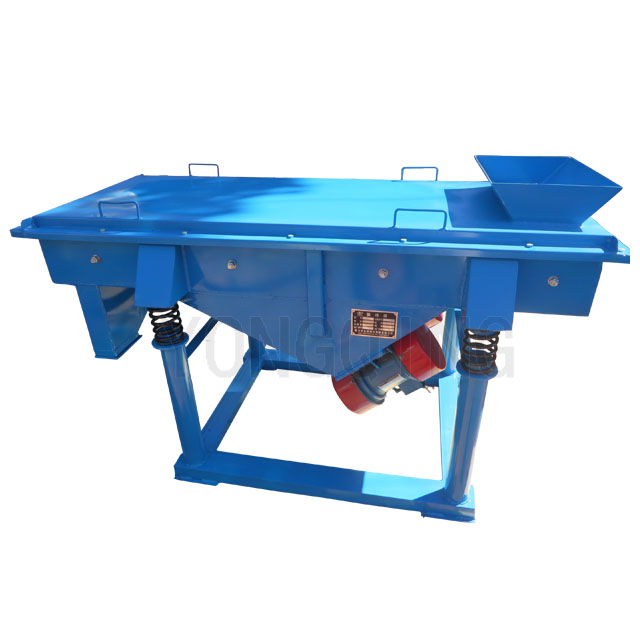

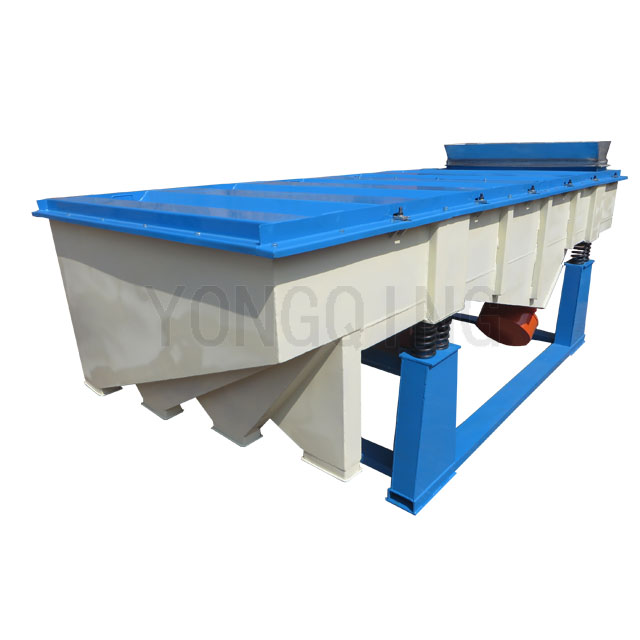

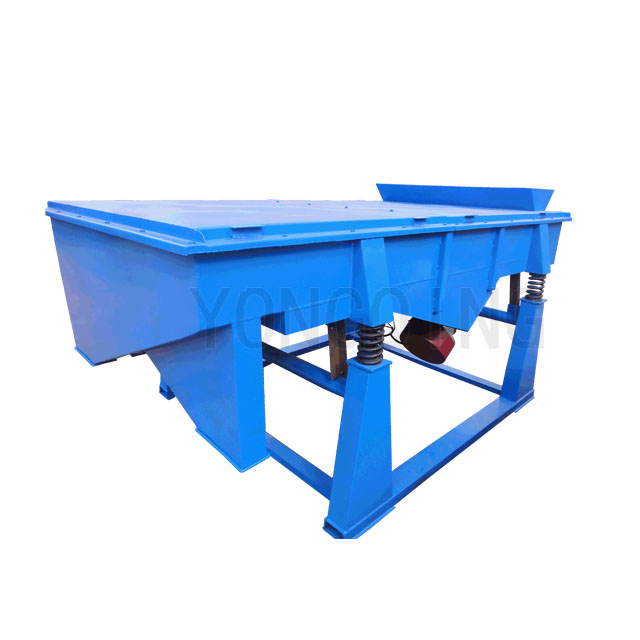

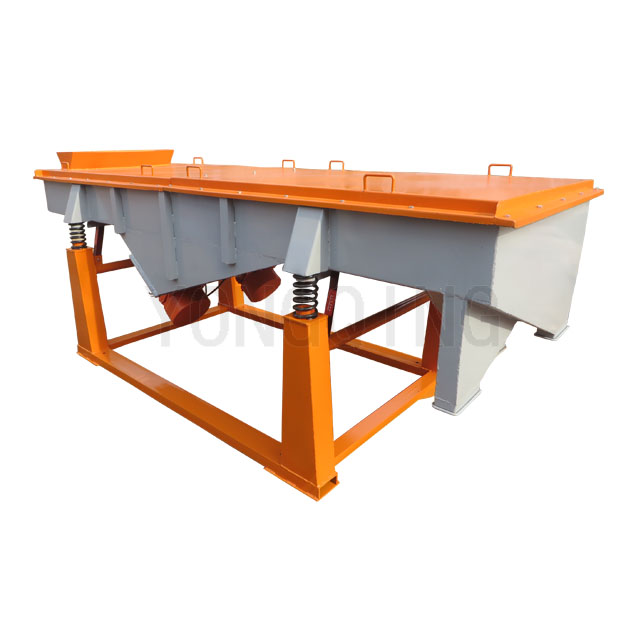

linear vibration screen machine for separating gravel sand

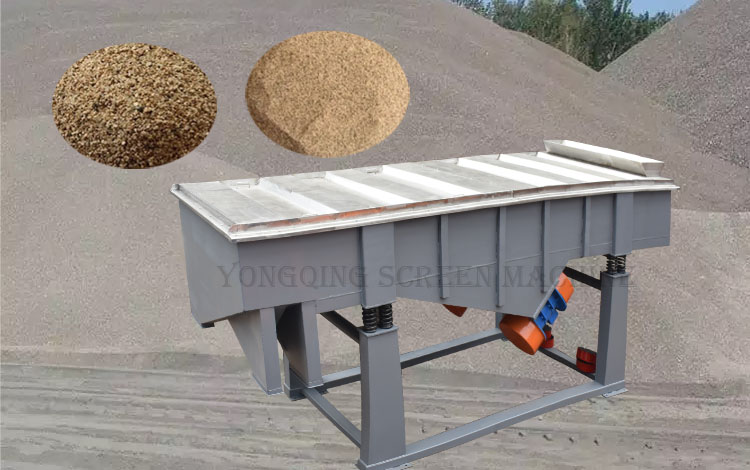

YONGQING DZSF Series linear vibration screen machine is a high efficiency vibrotary screening machine which is widely used for sand screening industries. either for screening coarse quartz sand or for sieving fine silica sand, the DZSF Series vibrating sieve has a better screening performance. what's more , as a vibrator size separator, it is also widely used for separate small gravel particles and sand.
The DZSF Series sand sieving machine mainly classify sand by particle sizes, to separate stone sand/gravel sand, to sifting sand soil etc.
customers can choose the sand screen separator machine with single screen layer, two screen layers, 3 screen layers etc. as per specific screening requriement.
linear vibrating screen catalogue specifics
Model | Screen layer | Power（KW） | Screen size（mm） | Mesh size | Rotate speed (rpm) |
Double amplitude （mm） | Inclined angle （°） |
DZSF－612 | 1—5 | 0.37*2 | 600×1200 | #2—#325
| 960
|
6-10 | 0—10
|
DZSF—520 | 0.37*2 | 500×2000 | |||||
DZSF—525 | 0.37*2 | 500×2500 | |||||
DZSF－1020 | 0.75*2 | 1000×2000 | |||||
DZSF—1025 | 0.75*2 | 1000×2500 | |||||
DZSF—1030 | 1.1*2 | 1000×3000 | |||||
DZSF—1224 | 1.5*2 | 1200×2400 | |||||
DZSF—1525 | 1.5*2 | 1500×2500 | |||||
DZSF—1530 | 2.2*2 | 1500×3000 |

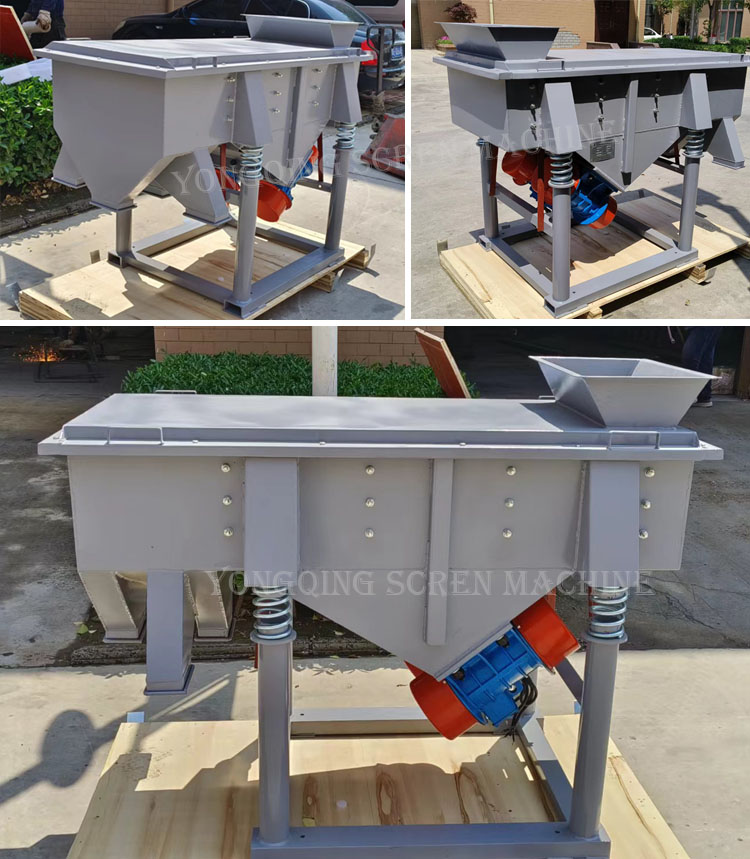

DZSF612 three screen decks sand vibration sieve machine details
screen dimension: 600 x 1200mm
screen layer: 3 layers
output: 4 outputs
mesh size: 0.02-20mm
power: 0.37kw*2
dual amplitude: 6-10mm
structure: carbon steel/mild steel
voltage: 380V, 50Hz, 3phase or as requries

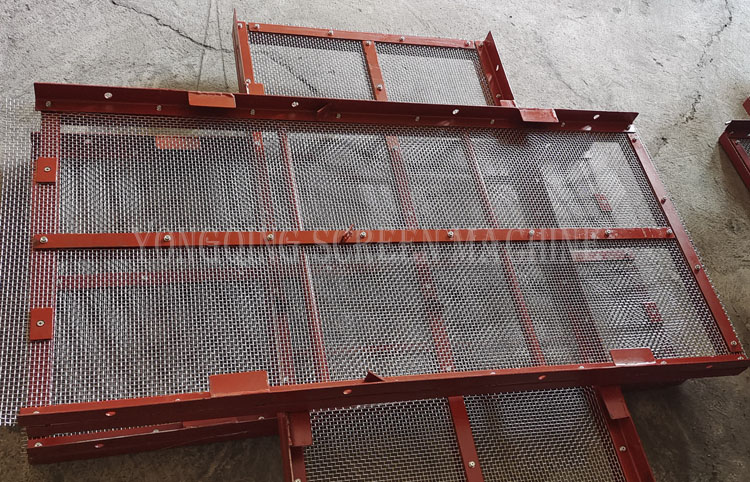

Interchangeable Screens
The screens of the sand screening machine are interchangeable, customers can easy to replace new screens by themselves. addtitional replacement screens with various screen mesh sizes available as per needs.
