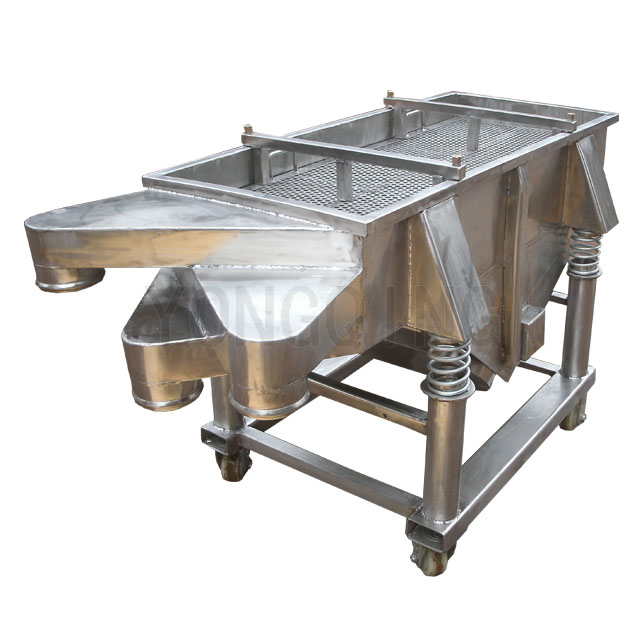

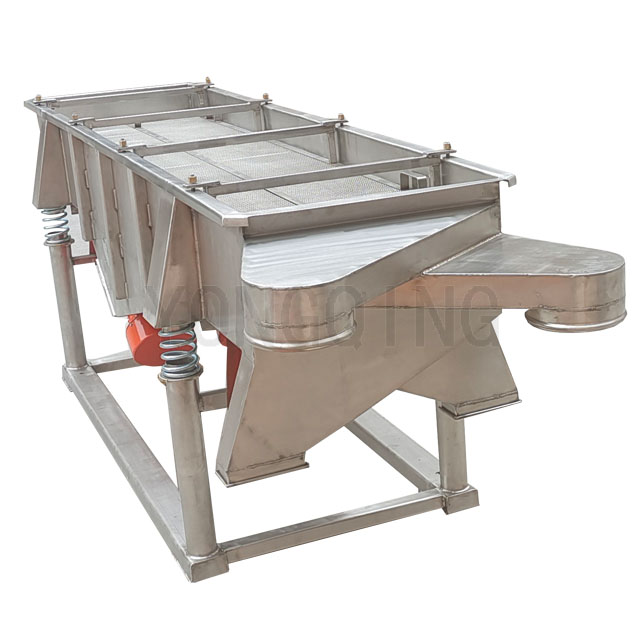

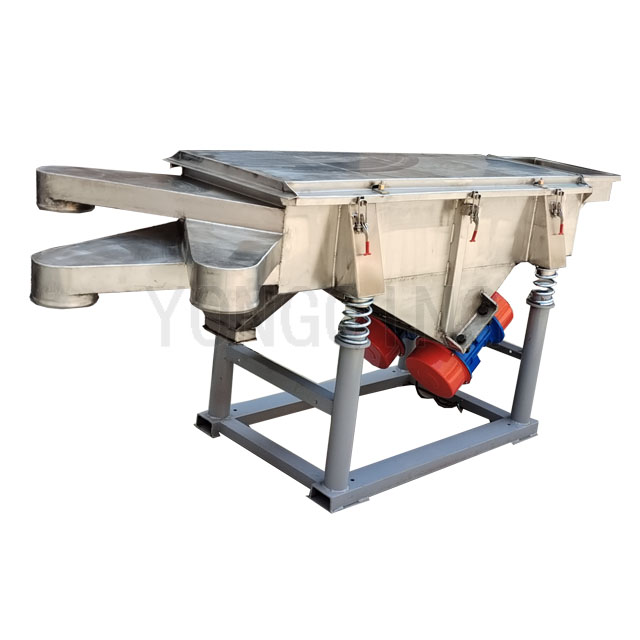

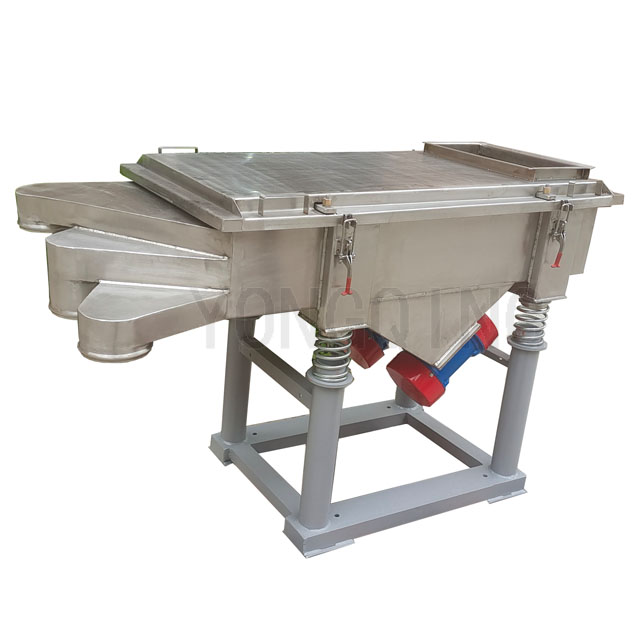

coffee bean vibro screen grader
YONGQING DZSF Series coffee bean vibro screen grader is a electric shaking table with mesh screens, driven by double vibrator motors, comes with single stages screen or multiple stage screens. the DZSF vibration sieve is widly used for coffee bean/cocoa been process industry, for sizing/grading/sorting/classifying beans sizes. either for sort the cracked beans or for classify roasted coffee beans, customers will always need a vibration sieve machine to make the size separation/sorting.
Normally customers use a 3 stages screen sorting machine for sorting coffee beans, while there are also some customers use 2 or 4 screen decks to sorting coffee bean sizes. that depends on how many size fractions you want to separate the beans into.
Data sheet of bean size sorting machine
Model | Screen layer | Power KW) | Screen size(mm) | Mesh size | Rotate speed (rpm) | Double amplitude (mm) | Inclined angle (°) |
DZSF-612 | 1—5 | 0.37*2 | 600×1200 | #2—#325 | 960 | 6-10 | 0—10 |
DZSF—520 | 0.37*2 | 500×2000 | |||||
DZSF—525 | 0.37*2 | 500×2500 | |||||
DZSF-1020 | 0.75*2 | 1000×2000 | |||||
DZSF—1025 | 0.75*2 | 1000×2500 | |||||
DZSF—1030 | 1.1*2 | 1000×3000 | |||||
DZSF—1224 | 1.5*2 | 1200×2400 | |||||
DZSF—1525 | 1.5*2 | 1500×2500 | |||||
DZSF—1530 | 2.2*2 | 1500×3000 |

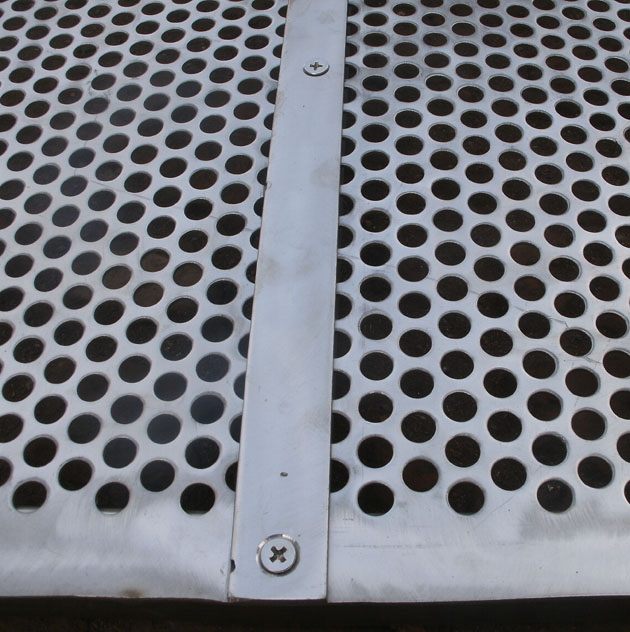

To sorting coffee beans, mostly customers use perforated round hole mesh or square wire mesh.

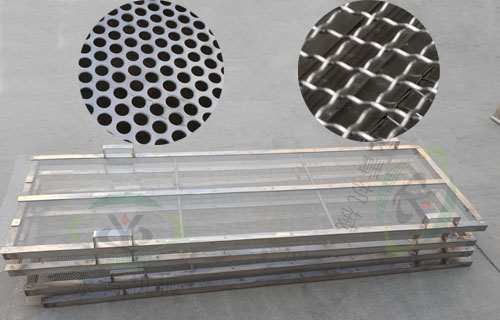

And when customers need to use several different sizes of mesh screes, they usually have some spare mesh screens with different mesh hole sizes. screens are interchangeable and easy to operate, customers can replace new screens freely.
More screen vibrators for coffee beans
Package
coffee bean vibro screen grader
YONGQING DZSF Series coffee bean vibro screen grader is a electric shaking table with mesh screens, driven by double vibrator motors, comes with single stages screen or multiple stage screens. the DZSF vibration sieve is widly used for coffee bean/cocoa been process industry, for sizing/grading/sorting/classifying beans sizes. either for sort the cracked beans or for classify roasted coffee beans, customers will always need a vibration sieve machine to make the size separation/sorting.
Normally customers use a 3 stages screen sorting machine for sorting coffee beans, while there are also some customers use 2 or 4 screen decks to sorting coffee bean sizes. that depends on how many size fractions you want to separate the beans into.
Data sheet of bean size sorting machine
Model | Screen layer | Power KW) | Screen size(mm) | Mesh size | Rotate speed (rpm) | Double amplitude (mm) | Inclined angle (°) |
DZSF-612 | 1—5 | 0.37*2 | 600×1200 | #2—#325 | 960 | 6-10 | 0—10 |
DZSF—520 | 0.37*2 | 500×2000 | |||||
DZSF—525 | 0.37*2 | 500×2500 | |||||
DZSF-1020 | 0.75*2 | 1000×2000 | |||||
DZSF—1025 | 0.75*2 | 1000×2500 | |||||
DZSF—1030 | 1.1*2 | 1000×3000 | |||||
DZSF—1224 | 1.5*2 | 1200×2400 | |||||
DZSF—1525 | 1.5*2 | 1500×2500 | |||||
DZSF—1530 | 2.2*2 | 1500×3000 |
To sorting coffee beans, mostly customers use perforated round hole mesh or square wire mesh.
And when customers need to use several different sizes of mesh screes, they usually have some spare mesh screens with different mesh hole sizes. screens are interchangeable and easy to operate, customers can replace new screens freely.
More screen vibrators for coffee beans
Package
