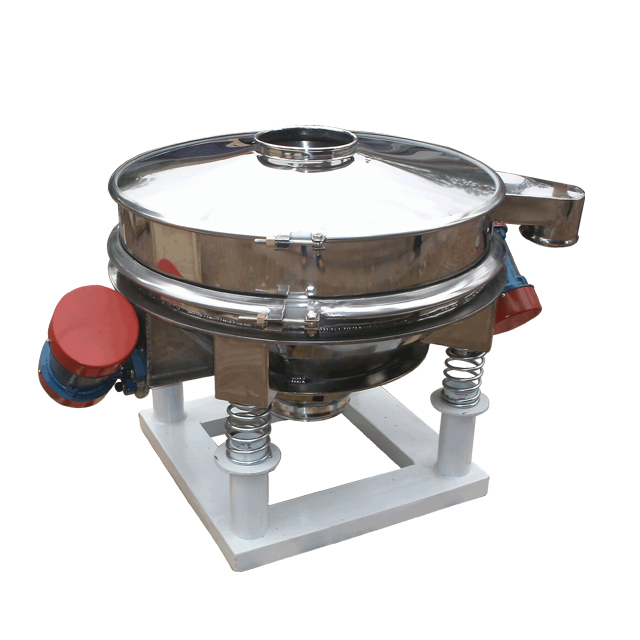

Wheat Flour Straight Flow Vibratory Sieve

Availability:
Quantity:

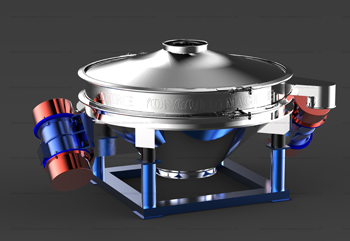

straight flow sieve 8

The straight flow sieve is widely used in the screening process of material removal due to its compact structure, small footprint, and large processing capacity. The straight flow sieve is mainly composed of a base, a shock-absorbing spring, a lower cone, a grid frame, a screen, a middle frame, a locking ring, a sealing ring and a dust cover.

the more commonly used screening equipment is a double-motor or single-motor straight flow sieve, through a single-motor straight flow sieve Remove the large agglomerated particles and thread packaging bags in the flour, salt, seasoning and additives, so as to avoid the large lumps that cannot be stirred when kneading the dough, the dough is not evenly kneaded, and the thread packaging bags and other sundries are also avoided. It can better improve the quality of finished product.


Production details

The Straight flow sieve is widely used in the processing of food ingredients such as flour, spices, herbs, starches, and additives. And it is mainly used in removing impurities and de-dust, ensuring uniformity in the final product.

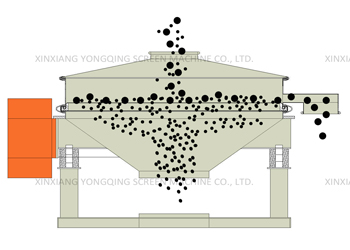

straight flow sieve

Bigger Capacity

The feed inlet is generally set in the middle of the dust cover, and the finished product outlet is opened in the middle of the lower cone, so that the finished product can be quickly discharged from the sieve machine after passing through the screen, thereby improving the screening efficiency and greatly increasing the production capacity.

straight flow sieve 9

Impurity-removing in Wheat flour

The inlet and outlet are designed in the middle, which is more conducive to connecting with other equipment. The wheat flour in front of it are generally installed with 20-mesh sieves, and some are equipped with 10-mesh or 14-mesh sieves. Manufacturers will choose different meshes of sieves according to their own conditions to meet their own production.

Reference capacity:

ZPS-1000 with 1 layer 14 mesh, process wheat flour 2 ton/hour.

ZPS-1200 with 1 layer 16 mesh, process wheat flour 3 ton/hour.


straight flow sieve 5

Double-motor straight flow sieve

straight flow sieve 6

Single-motor straight flow sieve

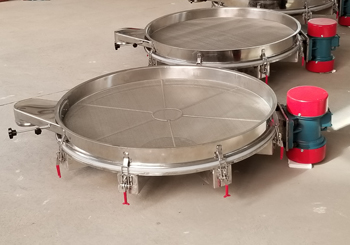

straight flow sieve 3

The processing of dried noodles application

Pay attention to the single-motor straight flow sieve in the process of processing dry noodles. First, check the screen regularly to see if there is any blockage or broken wires. If there is any phenomenon, it should be cleaned or replaced in time. The maintenance and maintenance of the vibrating motor ensures the normal operation of the single-motor straight flow sieve in the process of making dried noodles.



Package
20201104_152844


20201104_151854


20210927_160844


After-Sale Service

a. Technical Support: Manufacturers typically offer technical support to help customers with installation, operation, and troubleshooting of the rotary vibrating sieve. This can be provided via phone, email, video, or online chat.

b. Life-long Service for Spare Parts Availability: Manufacturers usually maintain an inventory of spare parts for their equipment. If any parts of the rotary vibrating sieve require replacement, customers can purchase the necessary parts directly from the manufacturer.

c. On-site Support: In some cases, manufacturers may provide on-site support for installation, maintenance, or repair of the rotary vibrating sieve. This service may be chargeable or included within the warranty terms, depending on the circumstances.

d. Training: Manufacturers could offer training programs to educate customers on the proper use, maintenance, and cleaning of the rotary vibrating sieve. These training sessions can help optimize the equipment's performance and extend its lifespan.
