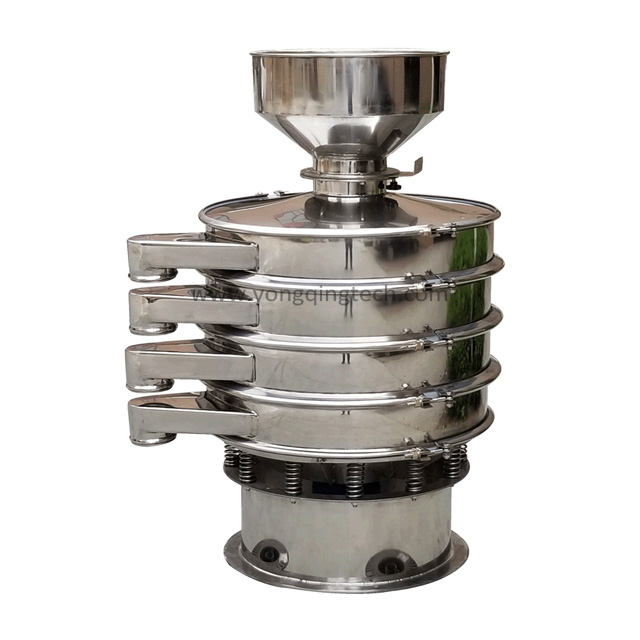

Two Decks Stainless Steel Spice Vibro Sifter

Availability:
Quantity:

Two Decks Stainless Steel Spice Vibro Sifter


Take a popular model for clients:

Product name: Vibro Sifter

Application: Spice, seasoner, black pepper power, etc

Model: XZS-1000-2 (2 layers, 3 outlets)

Diameter: 1000mm

Mesh size: 16 mesh, 30 mesh

Material: all stainless steel 304

Motor: 0.75kw (vertical vibration motor)

Voltage: 380V, 50Hz, 3 phase, 1460rpm

Package: 1150*1150*1000mm

Gross weight: 280KG

Delivery time: 7 days after receiving prepayment

1000-2


Parameters

Model

XZS-

500

XZS-

600

XZS-

800

XZS-

1000

XZS-

1200

XZS-

1500

XZS-

1800

XZS-

2000

Diameter

(mm)

500

600

800

970

1170

1470

1770

1970

Screen   Dia.(mm)

φ430

φ530

φ730

φ900

φ1100

φ1400

φ1700

φ1900

Layer

1-5

Mesh

(mm)

0.025-20

RPM

1460

Feeding   size(mm)

<20

<20

<30

<30

<50

<50

<50

<50

Power   (kw)

0.25

0.25

0.55

0.75

1.1

1.5

2.2

3.0


Applications

A. Dry separation

- Separation of different materials on the basis of their particle shape

- Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains


B. Dry classification

- Separation of solid particles into precise sized fractions

- Food, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives.


C. Solid/Liquid separation

- Dewatering of solids and clarification of liquids

- Foods, chemicals, pulp


D. Solids classification in liquid medium

- Separation of solids into sized fraction in a liquid medium

- Chemicals, minerals, pulp and paper, ceramics, waste disposal


Layer and Material Choice

A: choose layer

a. Removing impurity. Generally, single layer is recommended for removing impurity.

b. Screening, filtering and grading. If the material size includes 2 kinds, single layer is available; if 3 kinds, two layers is suggested; If 4 kinds, three layers are recommended. The rest can be done in the same manner. 5 layers are supported at most on a machine.

B. choose material

a. Used for mining, construction, etc industry, all carbon steel is well recommended.

b. Used for chemical, papermaking, environmental protection, etc, the contact part stainless steel well recommended.

c. Used for food, medicine, etc, all stainless steel are well recommended.


Technical Specifications

一层全不锈钢1_01一层全不锈钢1_02一层全不锈钢1_03一层全不锈钢1_04一层全不锈钢1_05一层全不锈钢1_06


Certificate

certificate


COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD   (www.yongqingtech.com)

Establishing time

2006

Company nature

China   0EM, factory.

Quality certificate

CCC,   ISO9001-2008, CE

37-year   industry experience

17-year china manufacturer

14-year Alibaba golden supplier

4 field patents

Main products

Vibration   screen, Conveyor system, Vibration motor, Vibration   feeder, lab test sieve, Vibration table, etc.

Exporting countries

More than 120   countries


Company Advantages

Advantages
