Standard Powder Analysis Test Vibro Sieve Shaker

Availability:
Quantity:

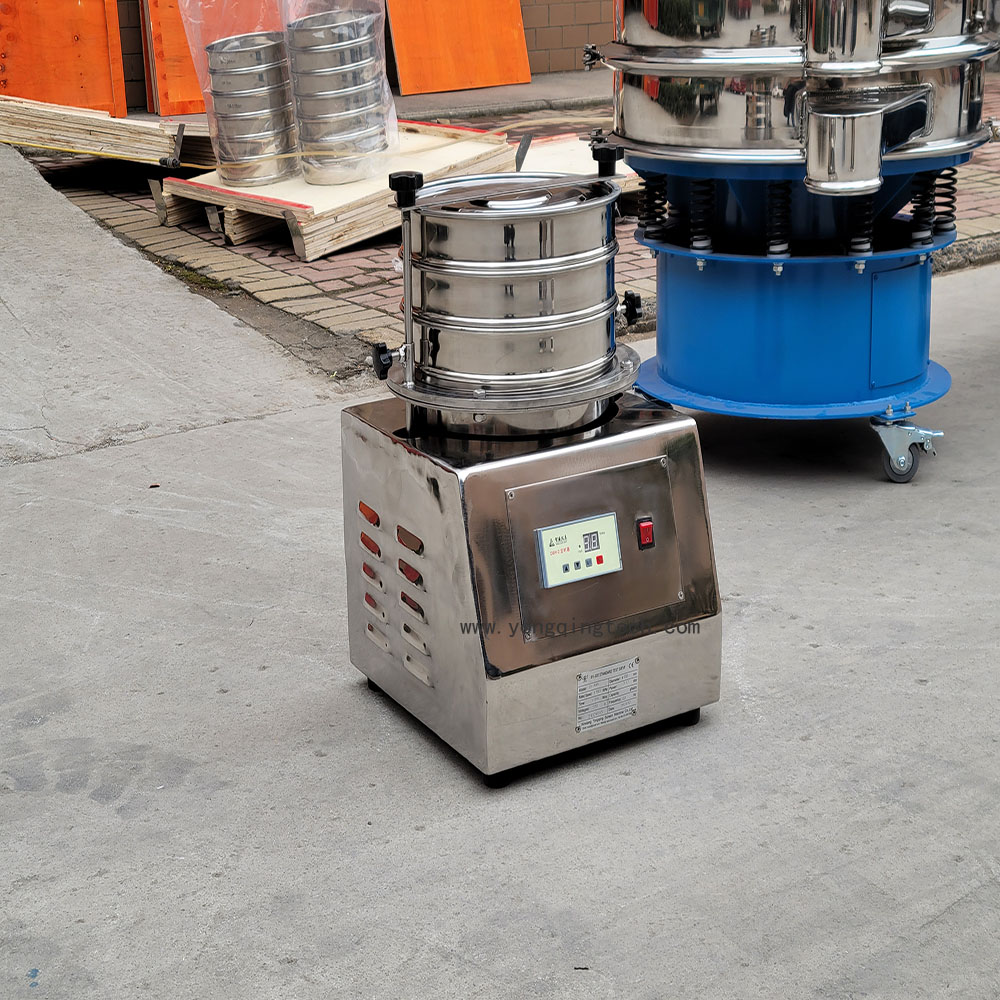

Standard Powder Analysis Test Vibro Sieve Shaker


Introduction

Our SY-200/SY-300 test sieve shaker, as a standard lab sieving machine, can be used for grading powder and granule, and filtering fluid in laboratories and testing rooms. With this filtering device, you can precisely analyze the granularity and powdery materials, and determine the solid content and impurity content in fluids.

structure

Product name: Test vibro sieve shaker

Application: powder/granule analysis, grading, sizing

Model: SY-200

Diameter: 200mm

Mesh size:

1. Stainless steel woven wire mesh from 3 microns to 4mm

2. Punched hole from 1mm to 63mm

Material: all stainless steel 304

Motor: 0.12kw

Voltage: 380V, 50Hz, 3 phase, 1460rpm

Package: 600*500*450mm

Gross weight: 60KG

Delivery time: 7 days after receiving prepayment

Features

1. This test sieve shaker has low working noise (<50dB), high efficiency, and high precision (>95%).


2. Multi-dimensional vibration can be created, making the sieving process highly efficient.


3. The standard screen can guarantee the high precision of the analysis.


4. A timer is available for the motors of our test sieve shaker. Different sieves with different meshes can be used to screen a certain kind of material for a same period of time, ensuring that data are comparable, and the data's error is reduced to a low level. Thus you can access the material quality accurately by this premium shaker.


5. It could be used in foodstuff, medicine, chemical industry, metallurgy, abrasive, ceramics, diamond, mining, petroleum, etc.


Parameters

Item

Commodity

Units

Specification

1

Sieves

Layer

5

2

Sieve dimension

mm

200*50

3

Feeding size

mm

0.02~30

4

Noise

dB

≤50

5

Feeding batch

g/time

≤200

6

Amplitude

mm

≤5

7

Motor

Voltage

V

220V

Rotating

rpm

1460

Power

kw

0.12

8

Dimension

mm

360*300*470

9

Weight

Kg

42

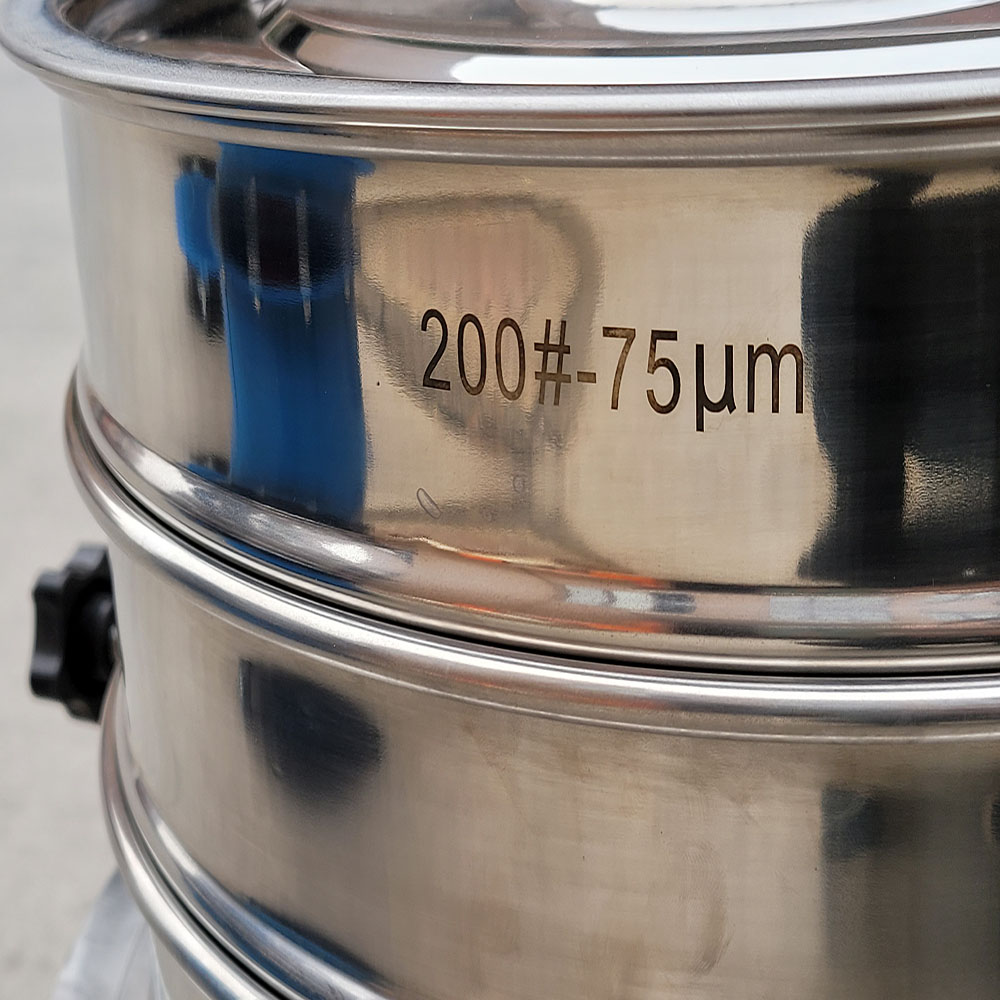

实验筛网

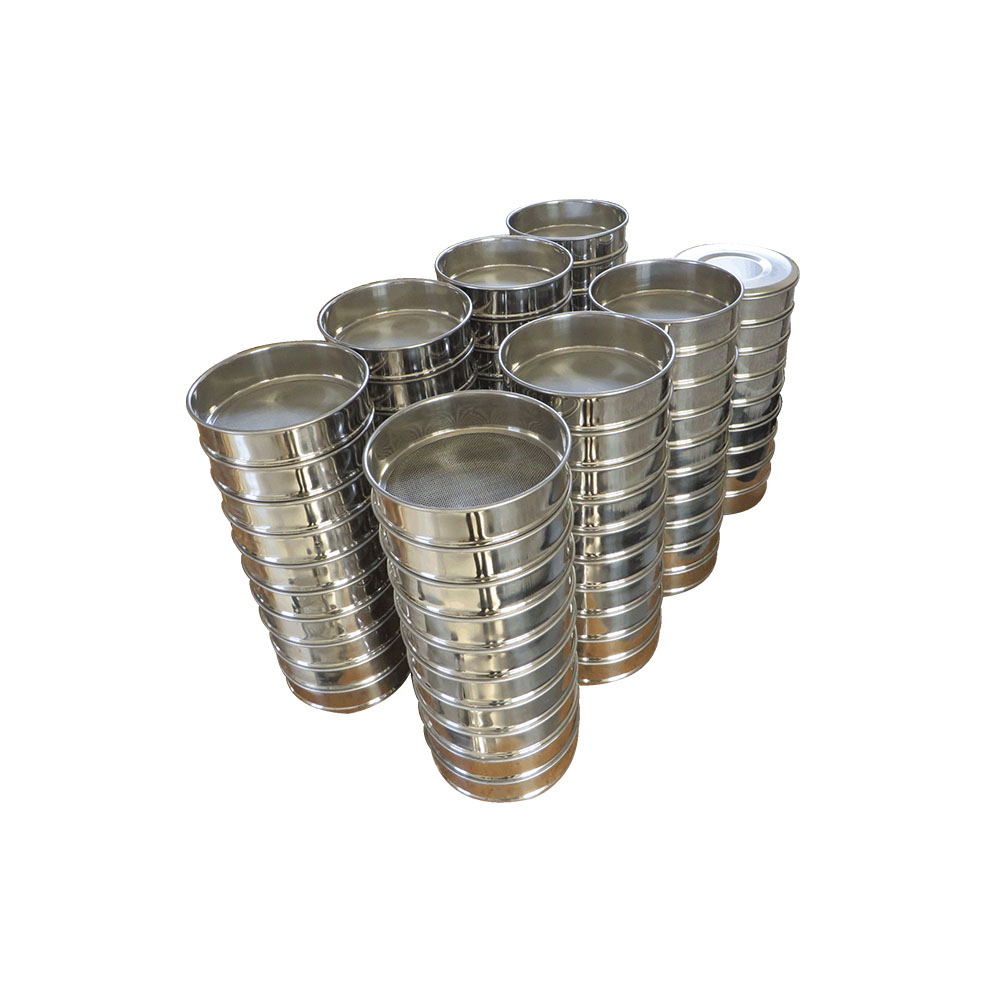

There are two kinds of sieve mesh:

1. Woven wire mesh: from 3 microns to 4mm

2. Perforated/punched square/round hole: from 1mm to 63mm


Components and Delivery

Test-Sieve SY 200test sieve delivery 1
