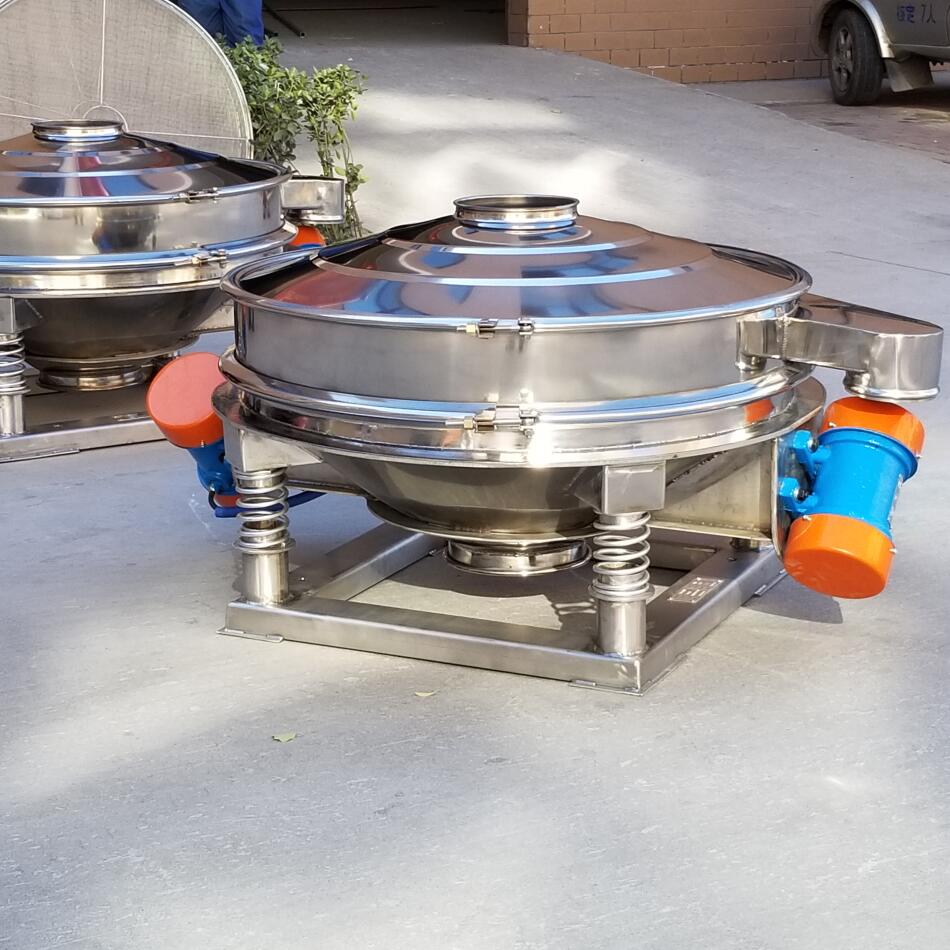

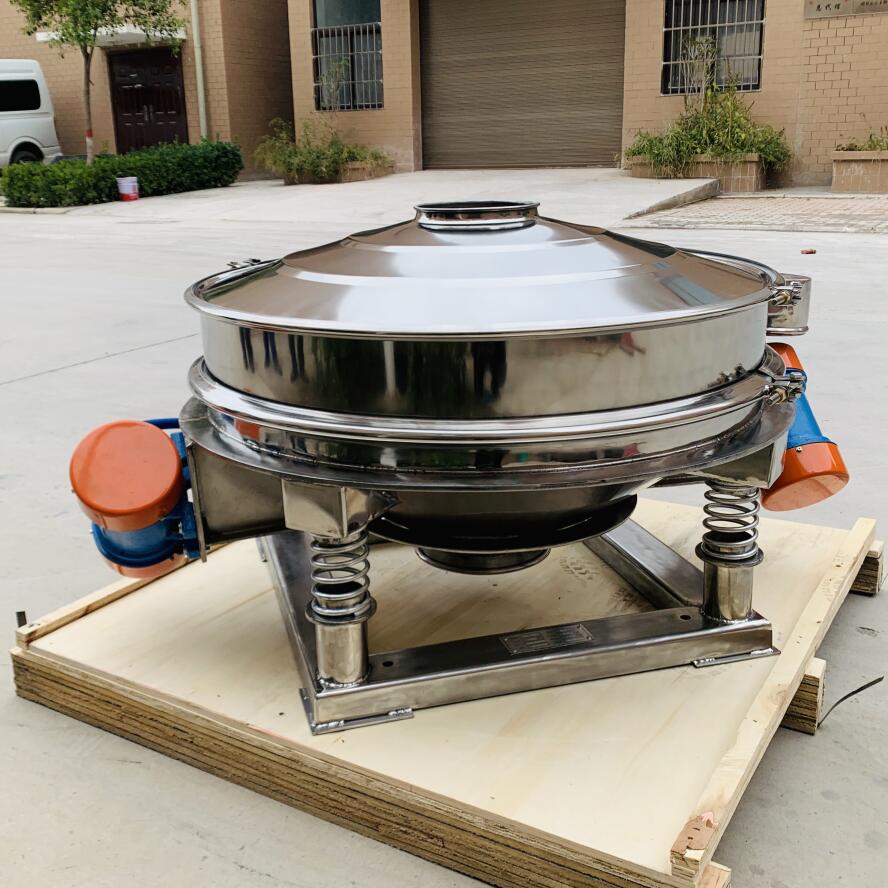

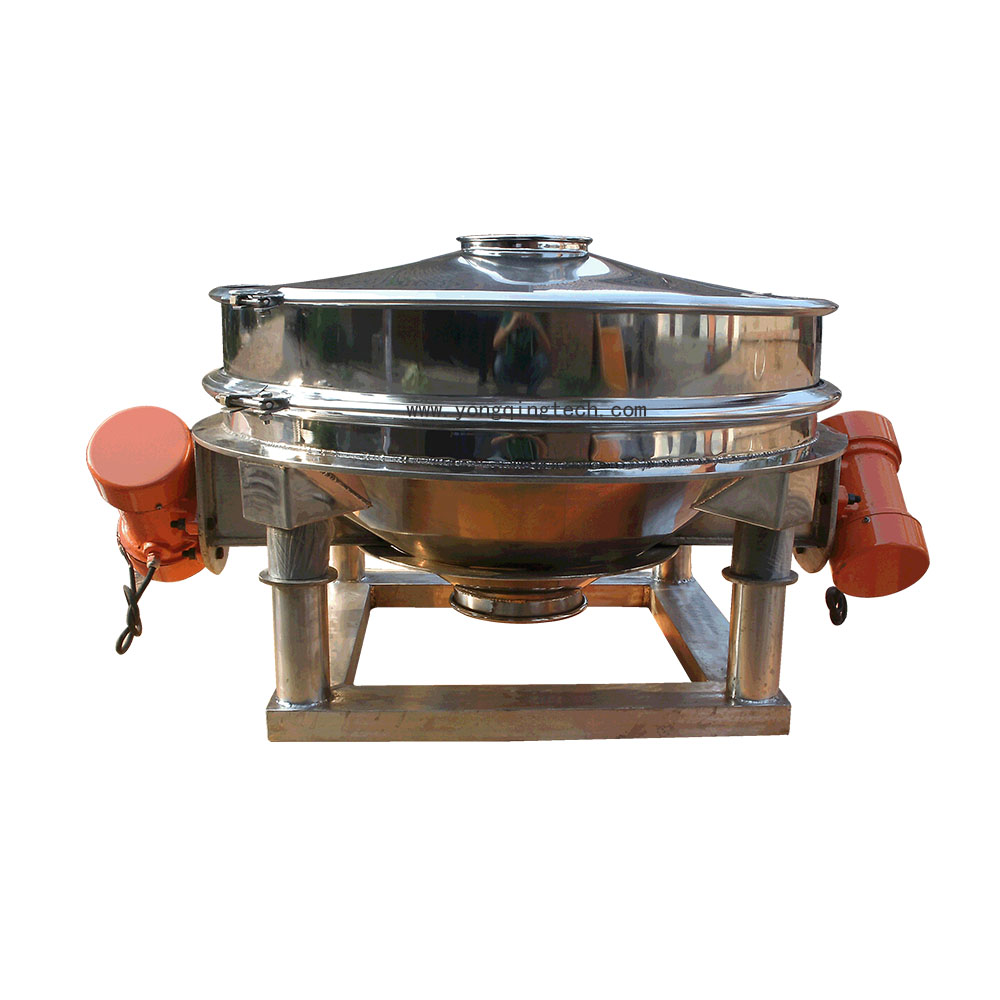

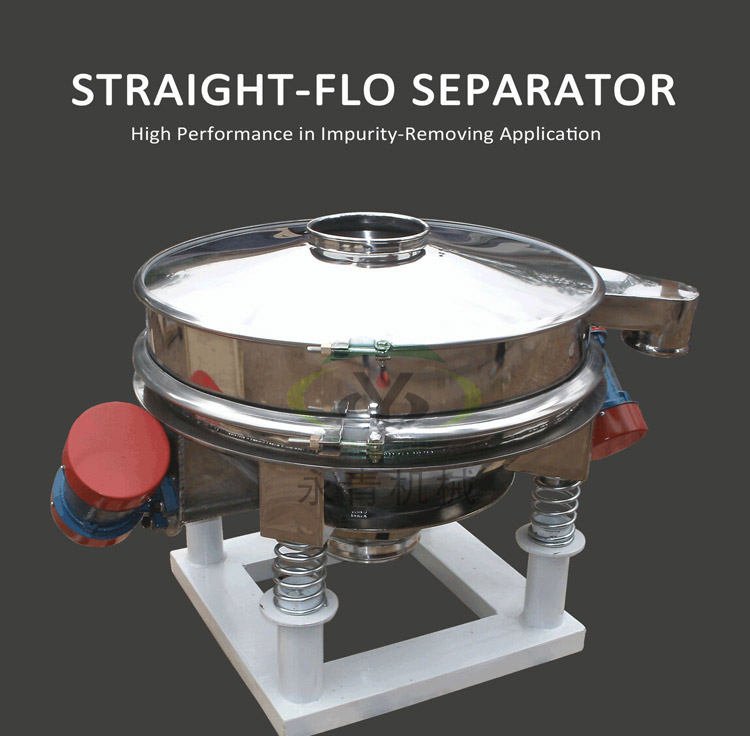

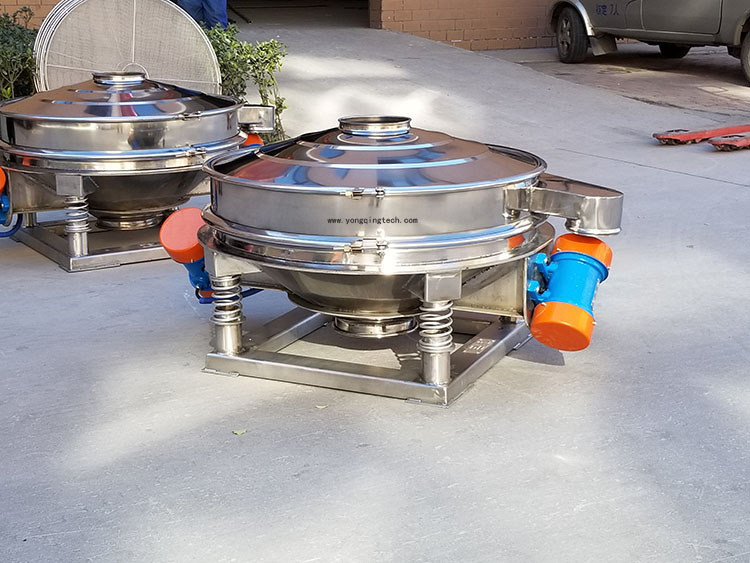

Stainless Steel Straight-flo Flour Vibro Sieve
Introduction
ZPS straight-flo vibro sieve is designed to produce, based on the ZPS rotary vibrating screen.

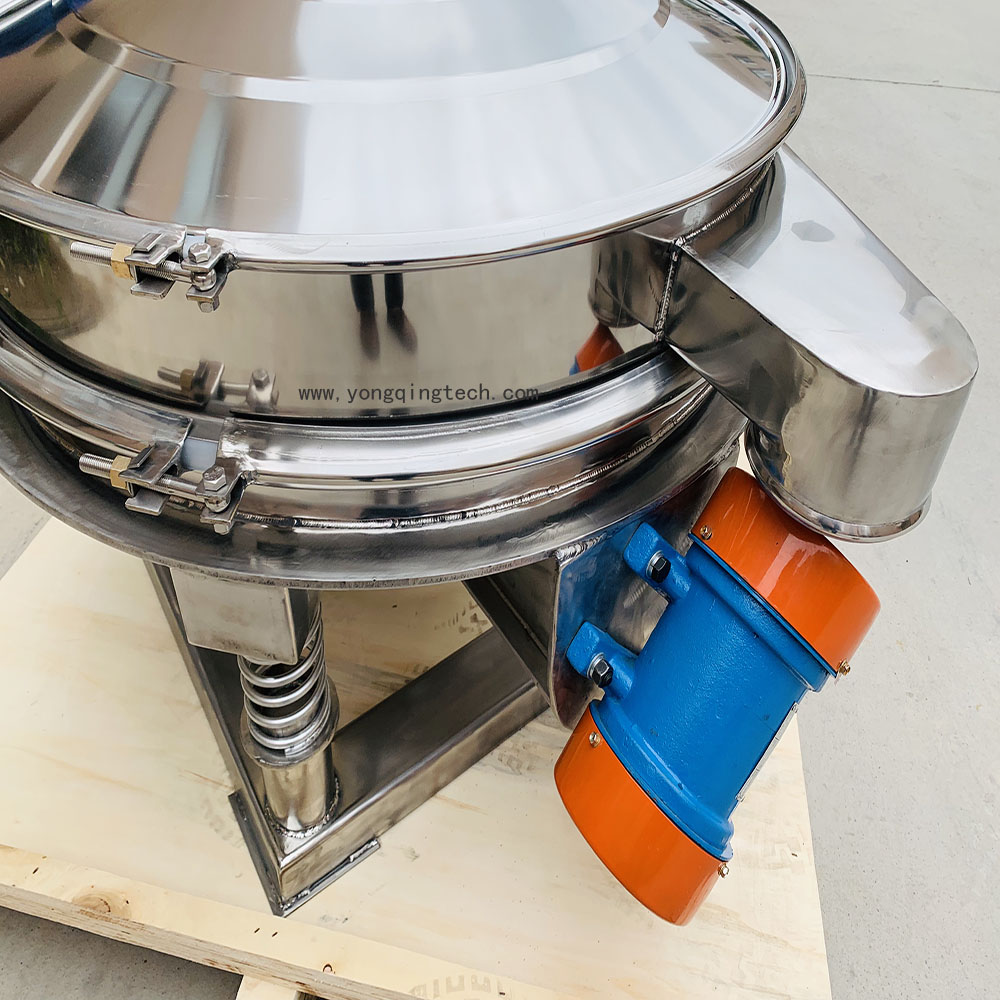

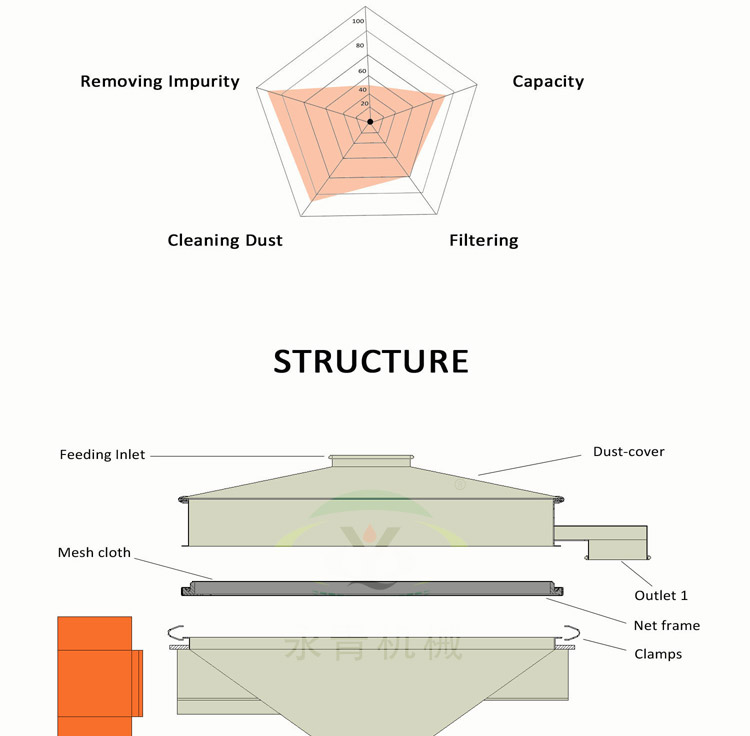

On the both side of machine, there are two sets of same vibrator motor to be mounted symmetrically. By adjusting the vibrator motors' force, the motion trail of raw material could be controlled to implement various screening purpose.

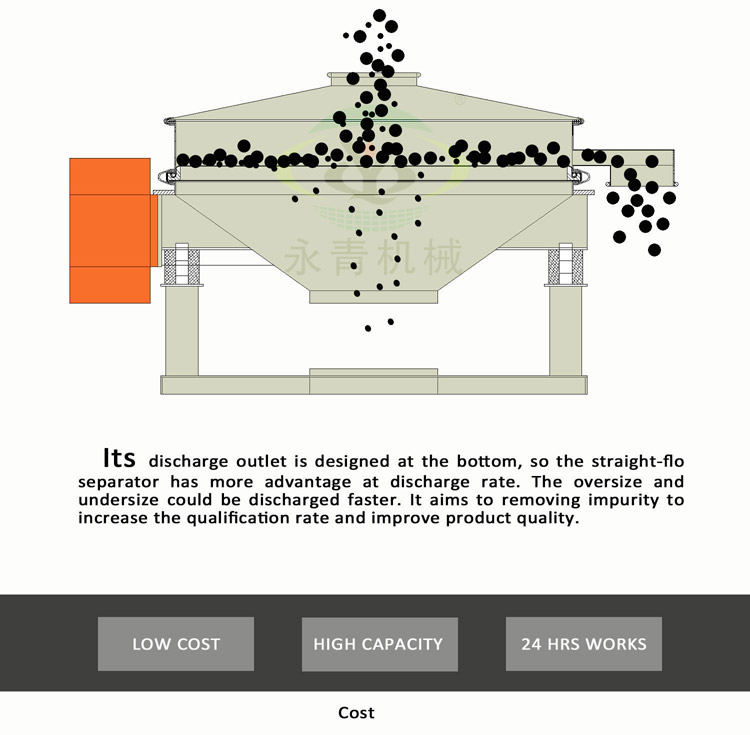

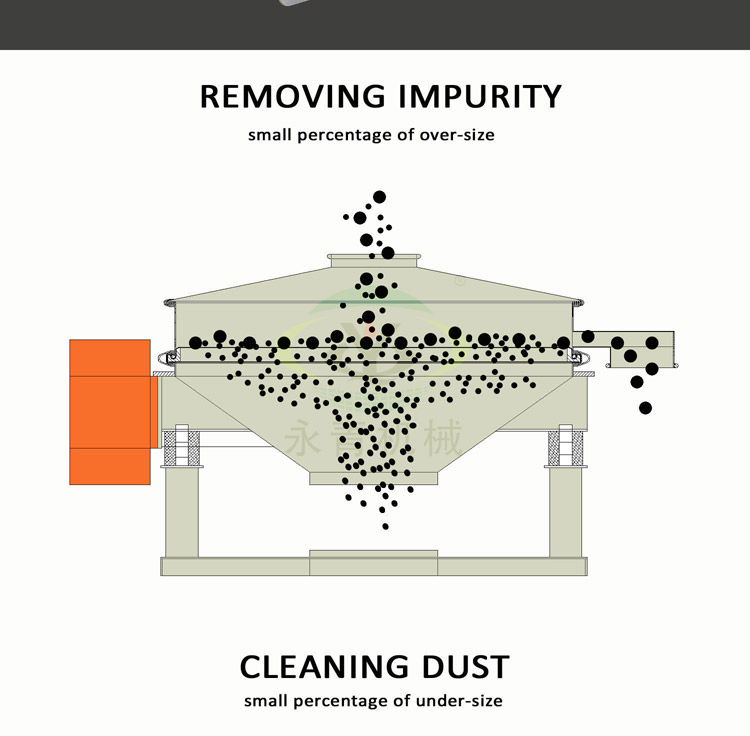

Its undersize outlet is layout the bottom of machine, for improving discharge speed and output flow. It is right for rough screening plant, such as removing impurity.

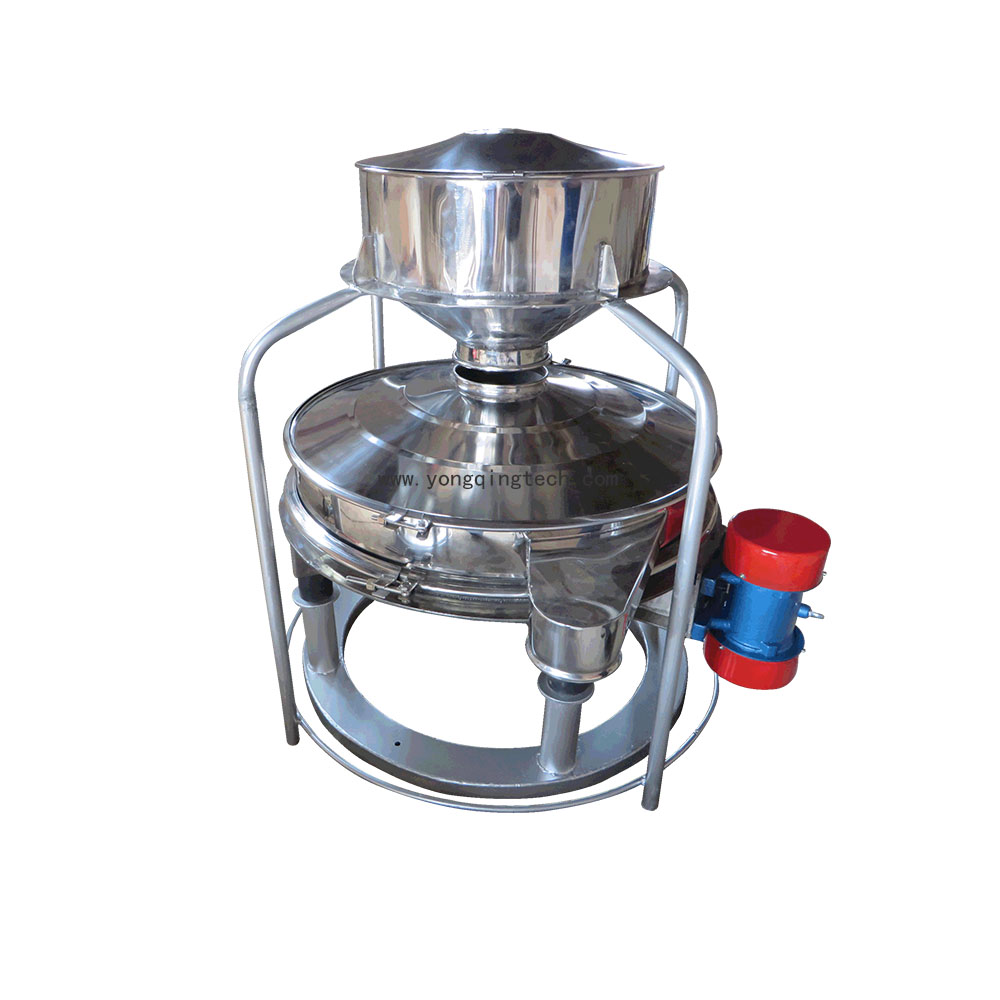

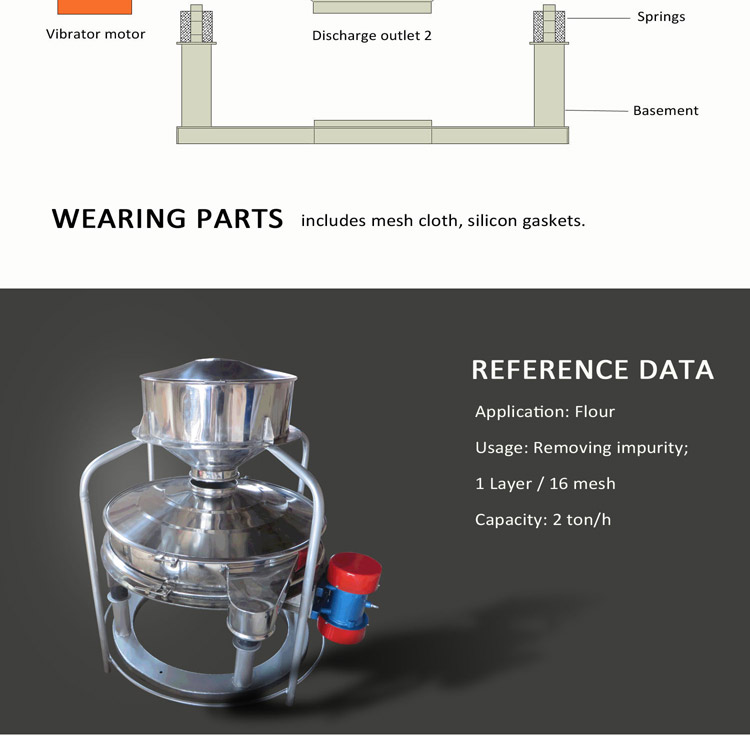

It could be built base structure, or hanging structure on requirement.
Take a popular model(special for impurity removal) for example
Product name: Stright-Flo Vibro Sieve
Application: remove impurity in the flour
Model: ZPS-800
Diameter: 800mm
Mesh size: 40 mesh
Material: all stainless steel 304
Motor: 0.18kw * 2 motors (two horizontal vibration motors)
Voltage: 380V, 50Hz, 3 phase, 1460rpm
Package: 1100*1100*900mm
Gross weight: 200KG
Delivery time: 7 days after receiving prepayment
Parameters
ZPS- 500 | ZPS- 600 | ZPS- 800 | ZPS- 1000 | ZPS- 1200 | ZPS- 1500 | ZPS- 1800 | ZPS- 2000 | |
Diameter(mm) | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Layer | 1 | |||||||
Screen Diameter(mm) | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 |
Screen mesh (mm) | 0.4-20 | |||||||
Maximum particle size(mm) | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
RPM | 1460 | |||||||
Power(KW) | 0.12 | 0.18 | 0.36 | 0.5 | 1.1 | 1.1 | 1.5 | 1.5 |
Technical Specifications
COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD (www.yongqingtech.com) | ||
Establishing time | 2006 | |
Company nature | China 0EM, factory. | |
Quality certificate | CCC, ISO9001-2008, CE 37-year industry experience 17-year china manufacturer 14-year Alibaba golden supplier 4 field patents | |
Main products | Vibration screen, Conveyor system, Vibration motor, Vibration feeder, lab test sieve, Vibration table, etc. | |
Exporting countries | More than 120 countries |
