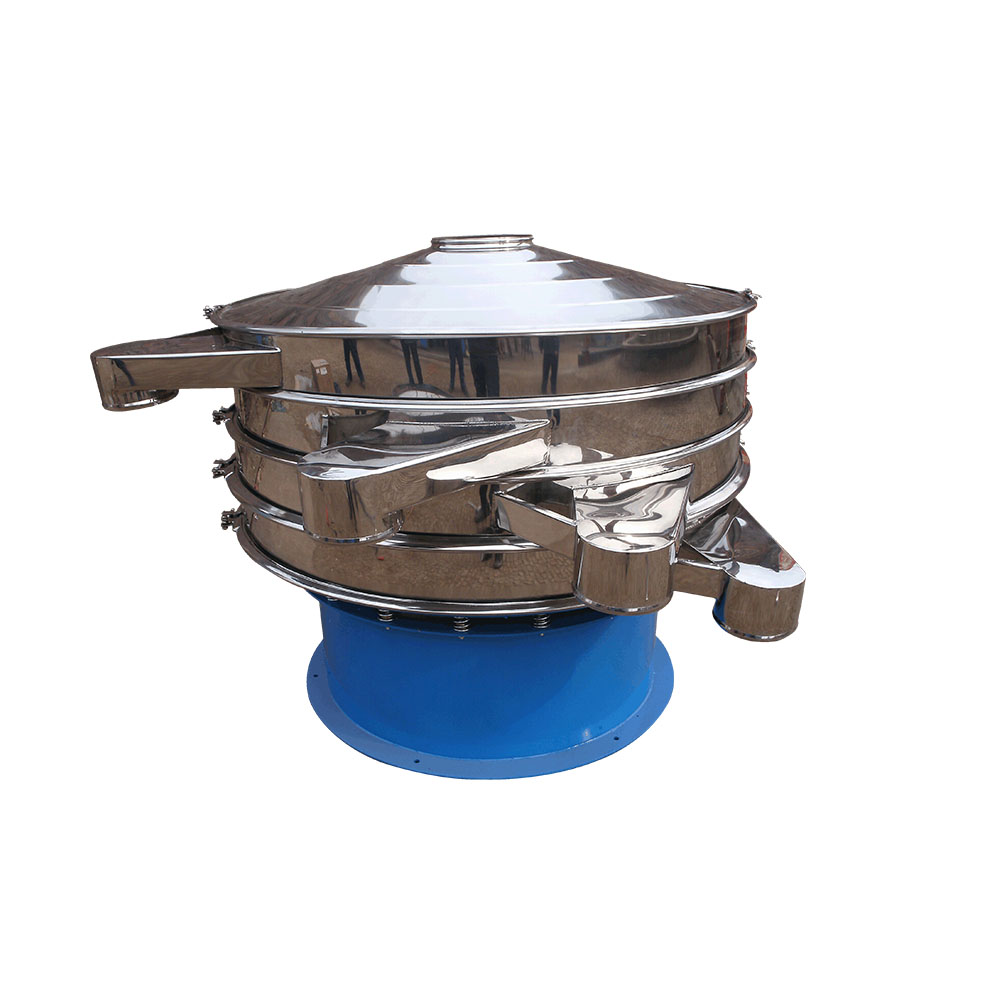

Stainless Steel Rotary Coffee Bean Vibro Sifter

Availability:
Quantity:

Stainless Steel Rotary Coffee Bean Vibro Sifter


Take a popular model for clients:

Product name: Vibro Sifter

Application: coffee beans

Model: XZS-1000-3 (3 layers, 4 outlets)

Diameter: 1000mm

Mesh size: 5mm, 7mm, 9mm

Material: all stainless steel 304

Motor: 0.75kw (vertical vibration motor)

Voltage: 380V, 50Hz, 3 phase, 1460rpm

Package: 1150*1150*1250mm

Gross weight: 330KG

Delivery time: 7 days after receiving prepayment

1000 three layers

1000-3


Parameters

Model

XZS-

500

XZS-

600

XZS-

800

XZS-

1000

XZS-

1200

XZS-

1500

XZS-

1800

XZS-

2000

Diameter

(mm)

500

600

800

970

1170

1470

1770

1970

Screen   Dia.(mm)

φ430

φ530

φ730

φ900

φ1100

φ1400

φ1700

φ1900

Layer

1-5

Mesh

(mm)

0.025-20

RPM

1460

Feeding   size(mm)

<20

<20

<30

<30

<50

<50

<50

<50

Power   (kw)

0.25

0.25

0.55

0.75

1.1

1.5

2.2

3.0


Applications

Applications


Material

It has 3 kinds of material and 1-5 layers for choice.

a. Full stainless steel

b. Contact part stainless steel

c. Full carbon steel


How to choose layer and material?

A: choose layer

a. Removing impurity. Generally, single layer is recommended for removing impurity.

b. Screening, filtering and grading. If the material size includes 2 kinds, single layer is available; if 3 kinds, two layers is suggested; If 4 kinds, three layers are recommended. The rest can be done in the same manner. 5 layers are supported at most on a machine.

B. choose material

a. Used for mining, construction, etc industry, all carbon steel is well recommended.

b. Used for chemical, papermaking, environmental protection, etc, the contact part stainless steel well recommended.

c. Used for food, medicine, etc, all stainless steel are well recommended.


Specifications

旋振筛08_01旋振筛08_02旋振筛08_03旋振筛08_04旋振筛08_05旋振筛08_06


Certificates

certificate


COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD   (www.yongqingtech.com)

Establishing time

2006

Company nature

China 0EM, factory.

Quality certificate

CCC, ISO9001-2008, CE

37-year industry   experience

17-year china manufacturer

14-year Alibaba golden supplier

4 field patents

Main products

Vibration screen, Conveyor system, Vibration motor,   Vibration feeder, lab test sieve, Vibration table, etc.

Exporting countries

More than 120 countries
