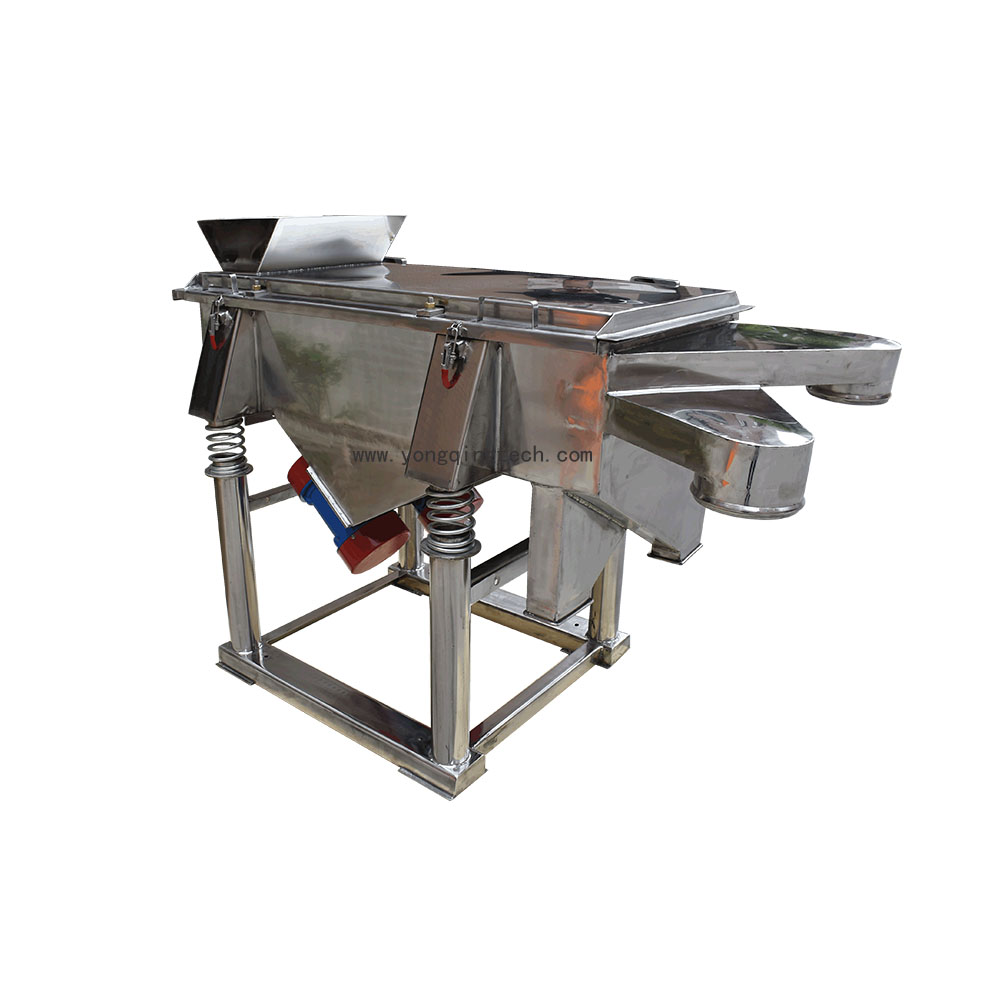

Stainless Steel Coffee Bean Linear Vibro Sieve

Stainless Steel Coffee Bean Linear Vibro Sieve

Product name: Vibro Sieve

Application: separate coffee beans into different grades

Model: DZSF-520

Screening Area: 500*2000mm

Layer: 2 layers, 3 outlets

Mesh size: 4mm, 7mm

Mesh material: stainless steel woven wire mesh

Machine Material: all stainless steel 304

Motor: 0.4KW * 2 motors (horizontal vibration motor)

Voltage: 380V, 50Hz, 3 phase, 960rpm

Package: 2600*800*1200mm

Gross weight: 420KG

Delivery time: 7 days after receiving prepayment

It has 3 kinds of material and 1-5 layers for choice.

a. Full stainless steel

b. Contact part stainless steel

c. Full carbon steel

Parameters

Model	Layer	Screening Area(mm)	Mesh (mm)	Particle Size(mm)	Capacity (t/h)	Power (kw)	Dual Amplitude
DZSF-612	1-5	600*1200	0.074 -20	≤20	≤3	0.25×2	6-8   mm
DZSF-520		500*2000			≤5	0.37×2
DZSF-525		500*2500			≤8	0.37×2
DZSF-1020		1000*2000			≤12	0.75×2
DZSF-1025		1000*2500			≤16	0.75×2
DZSF-1030		1000*3000			≤20	1.1×2
DZSF-1224		1200*2400			≤23	1.5×2
DZSF-1525		1500*2500			≤28	1.5×2
DZSF-1530		1500*3000			≤32	2.2×2
DZSF-1540		1500*4000			≤36	3×2

Applications

Mining industry: Granule, ore, sand, quartz sand, coal, etc.

Food industry: Starch powder, sugar powder, salt, rice flour, milk powder, soy bean milk, sauce, fruit juice, condiment, and so on.

Chemical industry: Resin powder, paint, industrial chemicals, detergent powder, and cosmetic, Chinese medicine powder.

Metallurgy industry: Aluminum powder, lead powder, copper powder, alloy metal powder, electrode powder, kaolin, limestone, dolomite, alumina, calcium carbonate, quartz sand and so on.

The adjustment of exciting force(F)

1. Exciting force is a main factor that affects the linear vibrating sieve’s productivity. Productivity and exciting force make exponential relationship.

2. The increasing of the vibrating force will arouse the rapid increasing of productivity. While, the blockage rate fell rapidly with the increasing of excitation force.

3. Increasing exciting force will cause increased vibration intensity. Vibrating motor’s exciting force is centrifugal force generated by the eccentric block’s high rotating speed.

4. By adjusting the eccentric distance, thus changing the amplitude of the exciting force in order to achieve adjusting the excitation force. By adjusting the size of the exciting force, so as to achieve the highest productivity effect, extend the life of the vibrating motor.

Technical Specifications

COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD   (www.yongqingtech.com)
Establishing time	2006
Company nature	China 0EM, factory.
Quality certificate	CCC, ISO9001-2008, CE 37-year industry   experience 17-year china manufacturer 14-year Alibaba golden supplier 4 field patents
Main products	Vibration screen, Conveyor system, Vibration motor,   Vibration feeder, lab test sieve, Vibration table, etc.
Exporting countries	More than 120   countries

The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:

1. Name of material: _____

2. Moisture:_____%

3. Specific gravity:_____t/m³

4. Capacity:________kg/ hour

5. Screen layer:_______

6. Screen mesh size:______ mesh . ______ mesh. ______ mesh

7. Voltage:______V,  Frequency:______HZ, ______phase

8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
