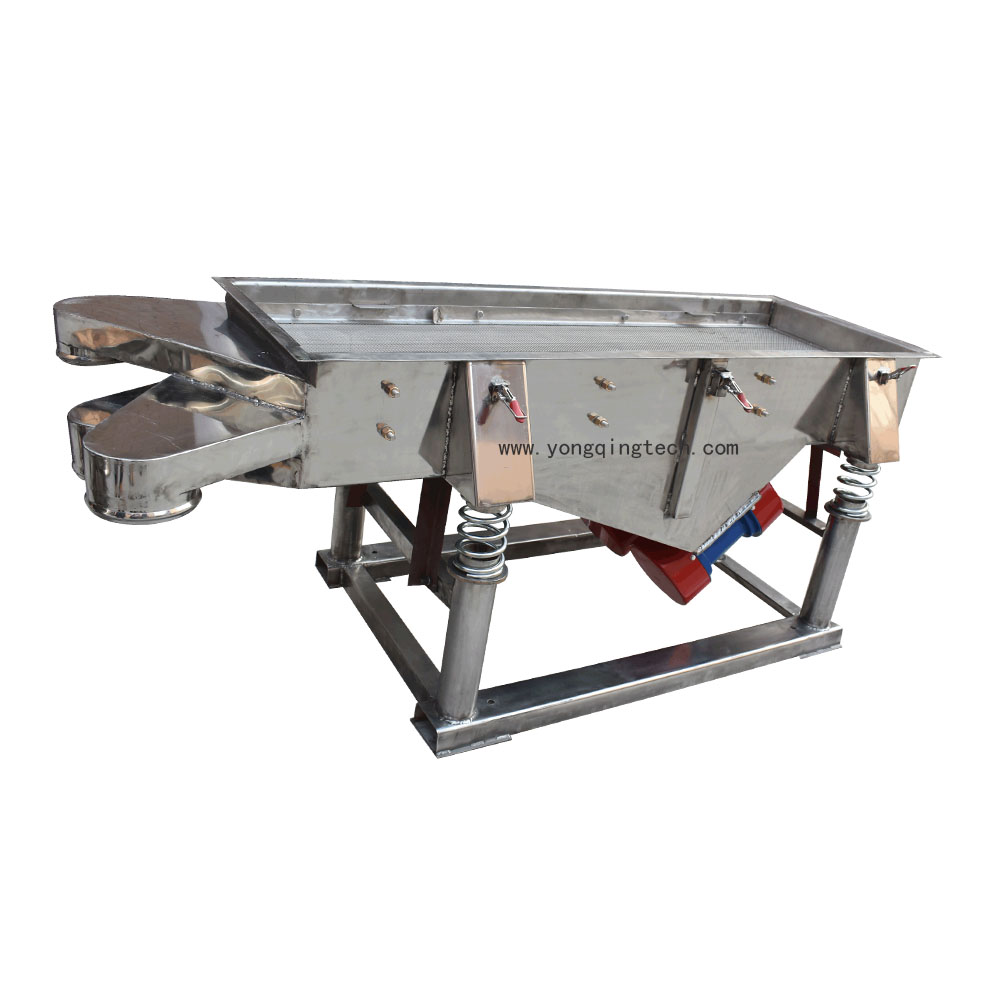

Stainless Steel 316 Rectangular Salt Vibro Sifter
Product name: Vibro Sieve
Application: salt sieving, grading, separation
Model: DZSF-520
Screening Area: 500*2000mm
Layer: 2 layers, 3 outlets
Mesh size: 0.8mm, 0.3mm

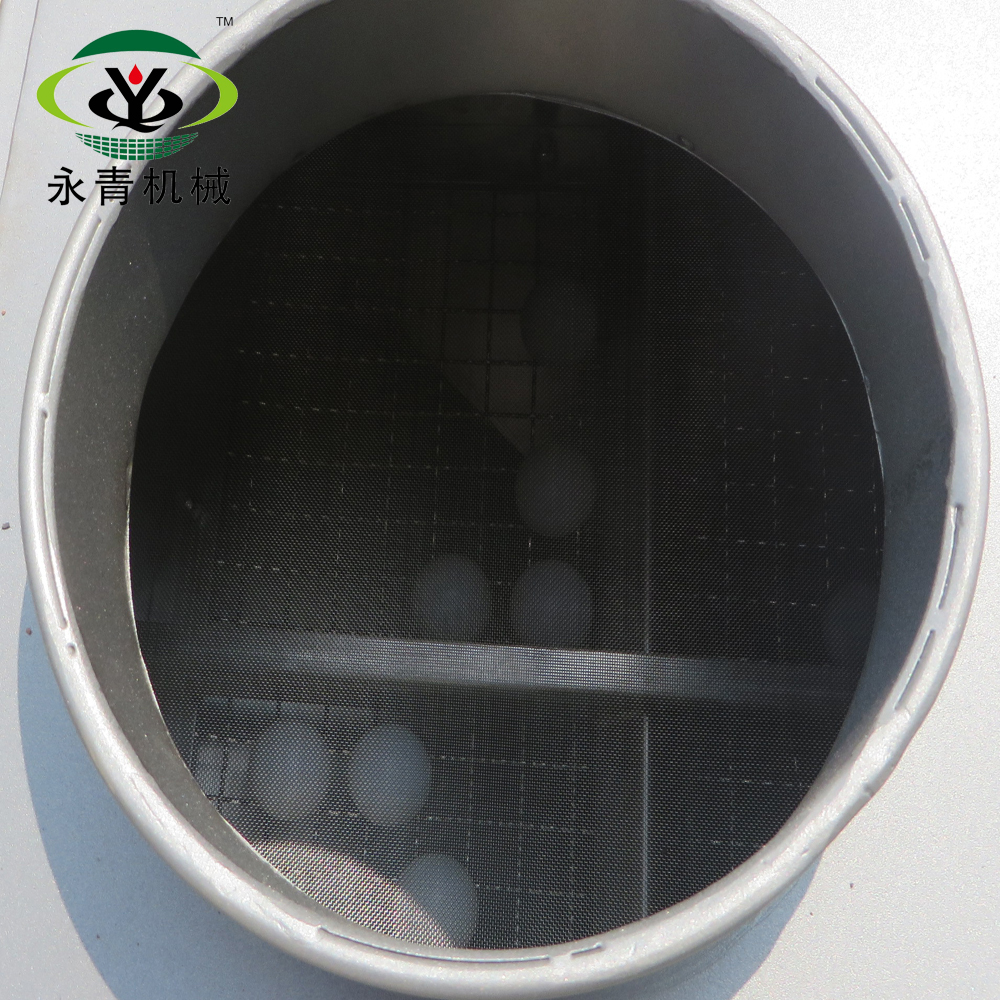

Mesh material: stainless steel woven wire mesh
Machine Material: all stainless steel 316 material
Motor: 0.4KW * 2 motors (horizontal vibration motor)
Voltage: 380V, 50Hz, 3 phase, 960rpm
Package: 2600*800*1200mm
Gross weight: 420KG
Delivery time: 7 days after receiving prepayment
Parameters
Layer | Screening Area(mm) | Mesh (mm) | Particle Size(mm) | Capacity (t/h) | Power (kw) | Dual Amplitude | |
DZSF-612 | 1-5 | 600*1200 | 0.074 -20 | ≤20 | ≤3 | 0.25×2 | 6-8 mm |
DZSF-520 | 500*2000 | ≤5 | 0.37×2 | ||||
DZSF-525 | 500*2500 | ≤8 | 0.37×2 | ||||
DZSF-1020 | 1000*2000 | ≤12 | 0.75×2 | ||||
DZSF-1025 | 1000*2500 | ≤16 | 0.75×2 | ||||
DZSF-1030 | 1000*3000 | ≤20 | 1.1×2 | ||||
DZSF-1224 | 1200*2400 | ≤23 | 1.5×2 | ||||
DZSF-1525 | 1500*2500 | ≤28 | 1.5×2 | ||||
DZSF-1530 | 1500*3000 | ≤32 | 2.2×2 | ||||
DZSF-1540 | 1500*4000 | ≤36 | 3×2 |
Note: the data above refers to bulk density 1.5t/m3, 1 layer, mesh size 5mm.
Applications
A. Dry separation
- Separation of different materials on the basis of their particle shape
- Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
B. Dry classification
- Separation of solid particles into precise sized fractions
- Food, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives.
C. Solid/Liquid separation
- Dewatering of solids and clarification of liquids
- Foods, chemicals, pulp
D. Solids classification in liquid medium
- Separation of solids into sized fraction in a liquid medium
- Chemicals, minerals, pulp and paper, ceramics, waste disposal
Technical Specifications
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
Stainless Steel 316 Rectangular Salt Vibro Sifter
Product name: Vibro Sieve
Application: salt sieving, grading, separation
Model: DZSF-520
Screening Area: 500*2000mm
Layer: 2 layers, 3 outlets
Mesh size: 0.8mm, 0.3mm
Mesh material: stainless steel woven wire mesh
Machine Material: all stainless steel 316 material
Motor: 0.4KW * 2 motors (horizontal vibration motor)
Voltage: 380V, 50Hz, 3 phase, 960rpm
Package: 2600*800*1200mm
Gross weight: 420KG
Delivery time: 7 days after receiving prepayment
Parameters
Layer | Screening Area(mm) | Mesh (mm) | Particle Size(mm) | Capacity (t/h) | Power (kw) | Dual Amplitude | |
DZSF-612 | 1-5 | 600*1200 | 0.074 -20 | ≤20 | ≤3 | 0.25×2 | 6-8 mm |
DZSF-520 | 500*2000 | ≤5 | 0.37×2 | ||||
DZSF-525 | 500*2500 | ≤8 | 0.37×2 | ||||
DZSF-1020 | 1000*2000 | ≤12 | 0.75×2 | ||||
DZSF-1025 | 1000*2500 | ≤16 | 0.75×2 | ||||
DZSF-1030 | 1000*3000 | ≤20 | 1.1×2 | ||||
DZSF-1224 | 1200*2400 | ≤23 | 1.5×2 | ||||
DZSF-1525 | 1500*2500 | ≤28 | 1.5×2 | ||||
DZSF-1530 | 1500*3000 | ≤32 | 2.2×2 | ||||
DZSF-1540 | 1500*4000 | ≤36 | 3×2 |
Note: the data above refers to bulk density 1.5t/m3, 1 layer, mesh size 5mm.
Applications
A. Dry separation
- Separation of different materials on the basis of their particle shape
- Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
B. Dry classification
- Separation of solid particles into precise sized fractions
- Food, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives.
C. Solid/Liquid separation
- Dewatering of solids and clarification of liquids
- Foods, chemicals, pulp
D. Solids classification in liquid medium
- Separation of solids into sized fraction in a liquid medium
- Chemicals, minerals, pulp and paper, ceramics, waste disposal
Technical Specifications
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
