Source Factory Automatic Plastic Pellet Vibro Sifter
Introduction

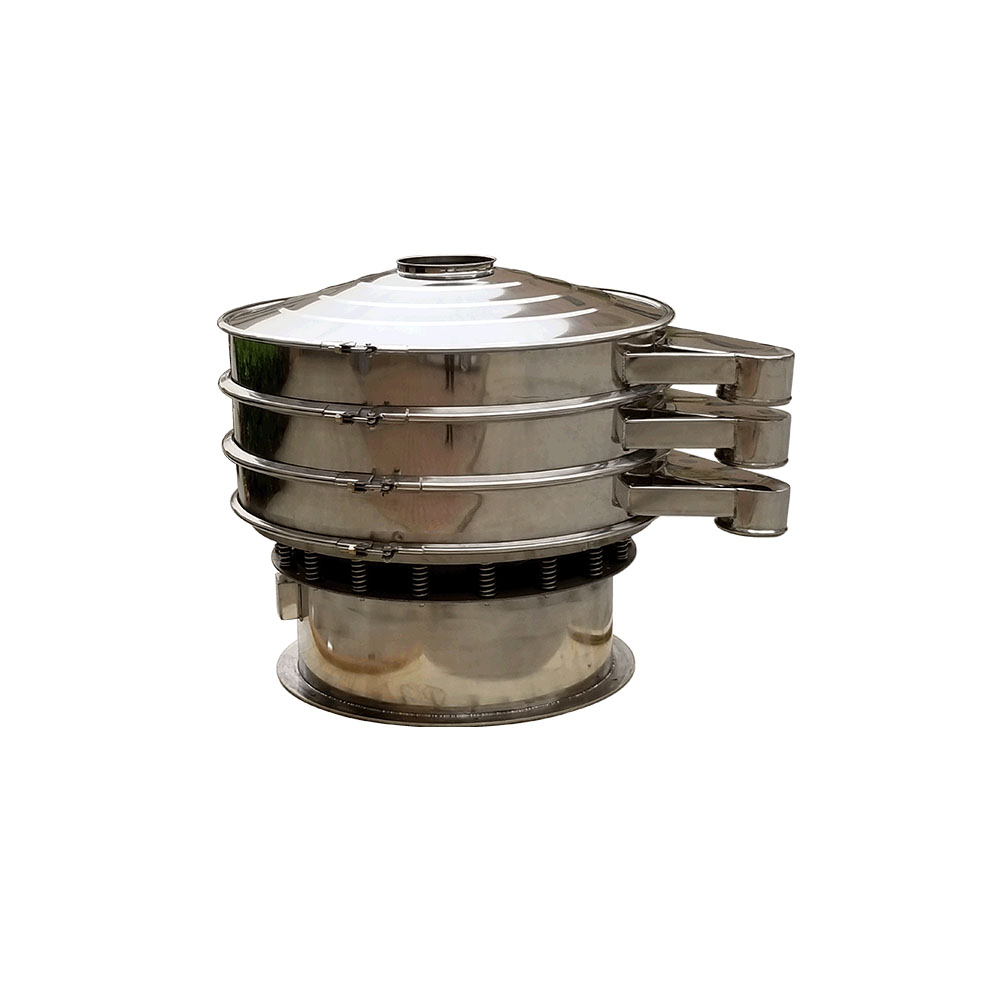

XZS series vibro sifter is a high efficiency screening machine manufactured with advanced technologies and designs. It features eco-friendliness, conveninent sifter changing process, low working noise, enclosed structure, high safety and efficiency. It can be used for screening and filtering granular, powdery and serous materials.
It has 3 kinds of material and 1-5 layers for choice.
a. Full stainless steel
b. Contact part stainless steel
c. Full carbon steel
Layer and Material Choice
a. Removing impurity. Generally, single layer is recommended for removing impurity.
b. Screening, filtering and grading. If the material size includes 2 kinds, single layer is available; if 3 kinds, two layers is suggested; If 4 kinds, three layers are recommended. The rest can be done in the same manner. 5 layers are supported at most on a machine.
B. choose material
a. Used for mining, construction, etc industry, all carbon steel is well recommended.
b. Used for chemical, papermaking, environmental protection, etc, the contact part stainless steel well recommended.
c. Used for food, medicine, etc, all stainless steel are well recommended.
Parameters
XZS- 450 | XZS- 500 | XZS- 600 | XZS- 800 | XZS- 1000 | XZS- 1200 | XZS- 1500 | XZS- 1800 | XZS- 2000 | |
Diameter (mm) |
450 | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Screen Dia.(mm) | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 | |
Layer | 1 | 1-5 | |||||||

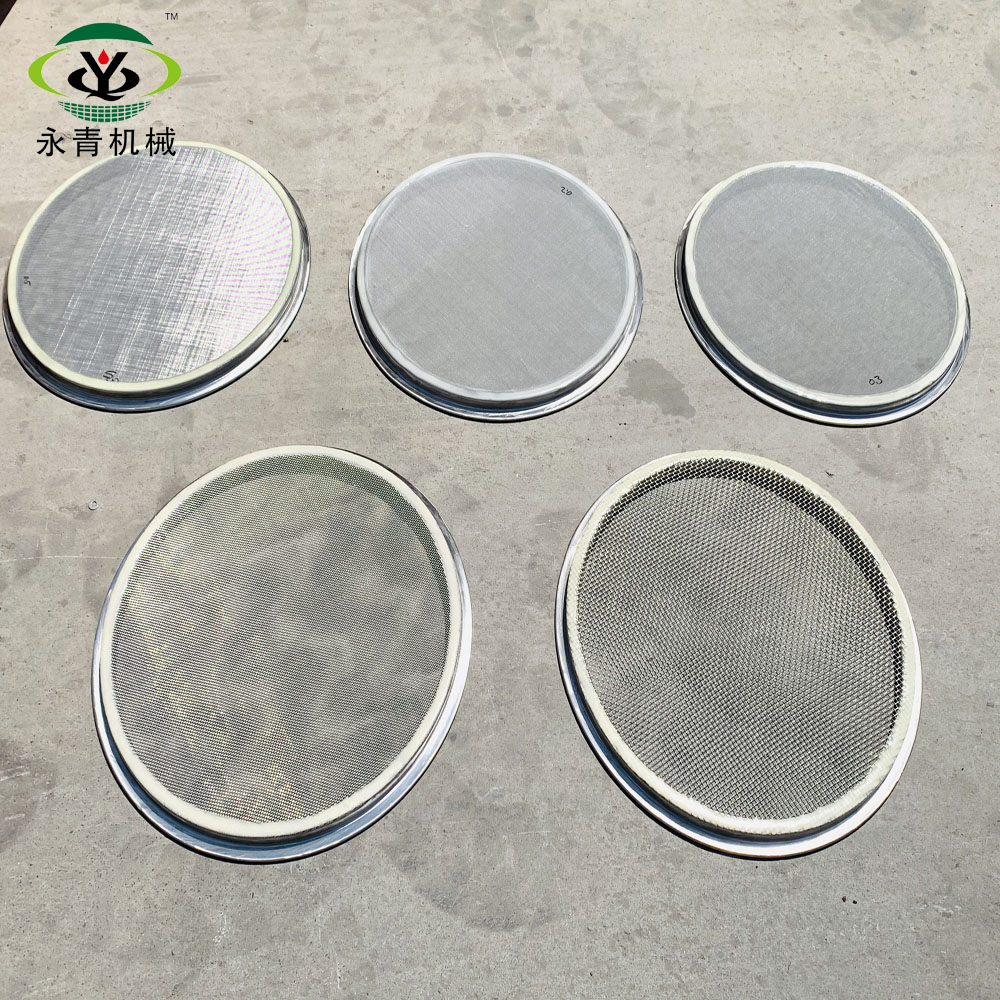

Mesh (mm) | 0.025-20 | ||||||||
RPM | 1460 | ||||||||
Feeding size(mm) | <20 | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
Power (kw) | 0.25 | 0.25 | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 |
Applications
Technical Specifications
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
