SUS304 Palm Oil Round Vibro Sifter
Introduction
The XZS series vibro sifter is a high efficiency screening machine manufactured with advanced technologies and designs. It features eco-friendliness, conveninent sifter changing process, low working noise, enclosed structure, high safety and efficiency. It can be used for screening and filtering granular, powdery and serous materials.
Applications
A. Dry separation
- Separation of different materials on the basis of their particle shape
- Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
B. Dry classification
- Separation of solid particles into precise sized fractions
- Food, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives.
C. Solid/Liquid separation
- Dewatering of solids and clarification of liquids
- Foods, chemicals, pulp
D. Solids classification in liquid medium
- Separation of solids into sized fraction in a liquid medium
- Chemicals, minerals, pulp and paper, ceramics, waste disposal
Parameters
Model | XZS- 500 | XZS- 600 | XZS- 800 | XZS- 1000 | XZS- 1200 | XZS- 1500 | XZS- 1800 | XZS- 2000 |
Diameter (mm) | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Screen Dia.(mm) | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 |
Layer | 1-5 | |||||||
Mesh (mm) | 0.025-20 | |||||||
RPM | 1460 | |||||||
Feeding size(mm) | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
Power (kw) | 0.25 | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 |
It has 3 kinds of material and 1-5 layers for choice.
a. Full stainless steel
b. Contact part stainless steel
c. Full carbon steel

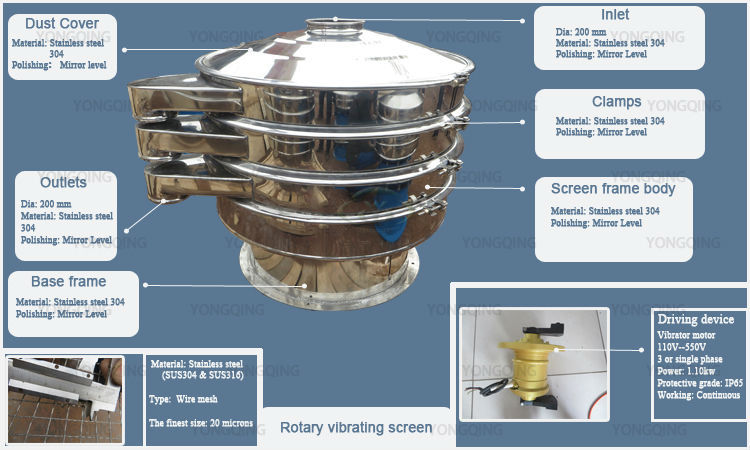

Technical Details
Take a hot model for an example
Model: XZS-1500-2 (2 layers, 3 outlets)
Diameter: 1500mm
Mesh size: 30 mesh, 40 mesh
Application: palm oil filter
Material: all stainless steel 304
Motor: 1.5kw (vertical vibration motor)
Voltage: 380V, 50Hz, 3 phase, 1460rpm
Package: 1650*1650*1380mm
Gross weight: 550KG
Delivery time: 7 days after receiving deposit
Certificate
COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD (www.yongqingtech.com) | |
Establishing time | 2006 |
Company nature | China 0EM, factory. |
Quality certificate | CCC, ISO9001-2008, CE 37-year industry experience 17-year china manufacturer 14-year Alibaba golden supplier 4 field patents |
Main products | Vibration screen, Conveyor system, Vibration motor, Vibration feeder, lab test sieve, Vibration table, etc. |
Exporting countries | More than 120 countries |
