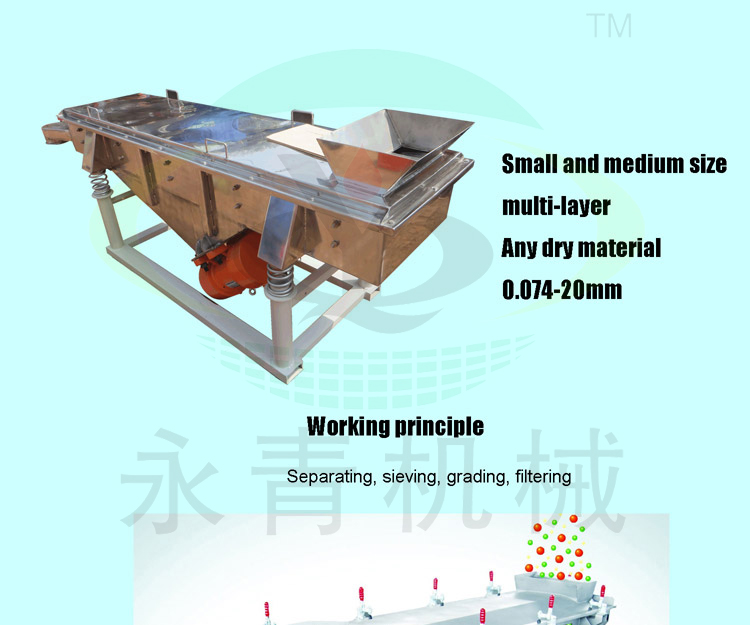

Rubber Sand Gravel Linear Vibro Sifter
Product name: Vibro Sifter
Application: separate rubber, sand and gravel
Model: DZSF-520
Screening Area: 500*2000mm
Layer: 2 layers, 3 outlets
Mesh size: 4mm, 3mm, 1.5mm
Capacity: 500-700kg per hour
Mesh material: stainless steel woven wire mesh
Machine Material: all carbon steel
Motor: 0.4KW * 2 motors (horizontal vibration motor)
Voltage: 380V, 50Hz, 3 phase, 960rpm
Package: 2600*800*1200mm
Gross weight: 420KG
Delivery time: 7 days after receiving prepayment
Applications
Mining industry: Granule, ore, sand, quartz sand, coal, etc.
Food industry: Starch powder, sugar powder, salt, rice flour, milk powder, soy bean milk, sauce, fruit juice, condiment, and so on.
Chemical industry: Resin powder, paint, industrial chemicals, detergent powder, and cosmetic, Chinese medicine powder.
Metallurgy industry: Aluminum powder, lead powder, copper powder, alloy metal powder, electrode powder, kaolin, limestone, dolomite, alumina, calcium carbonate, quartz sand and so on.
Parameters
Model | Layer | Screening Area(mm) | Mesh (mm) | Particle Size(mm) | Capacity (t/h) | Power (kw) | Dual Amplitude |
DZSF-612 | 1-5 | 600*1200 | 0.074 -20 | ≤20 | ≤3 | 0.25×2 | 6-8 mm |
DZSF-520 | 500*2000 | ≤5 | 0.37×2 | ||||
DZSF-525 | 500*2500 | ≤8 | 0.37×2 | ||||
DZSF-1020 | 1000*2000 | ≤12 | 0.75×2 | ||||
DZSF-1025 | 1000*2500 | ≤16 | 0.75×2 | ||||
DZSF-1030 | 1000*3000 | ≤20 | 1.1×2 | ||||
DZSF-1224 | 1200*2400 | ≤23 | 1.5×2 | ||||
DZSF-1525 | 1500*2500 | ≤28 | 1.5×2 | ||||
DZSF-1530 | 1500*3000 | ≤32 | 2.2×2 | ||||
DZSF-1540 | 1500*4000 | ≤36 | 3×2 |
Note: the data above refers to bulk density 1.5t/m3, 1 layer, mesh size 5mm.
Technical Specifications
Daily Maintenance
(1) check coarse mesh and fine mesh if there is a damage;
(2) check whether each group clamps is locking.
2. Running
(1) notice if there is any abnormal noises;
(2) whether the electric current is stable;
(3) whether the vibration is abnormal.
3. After running: after used, clean up the screen box every time.
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase

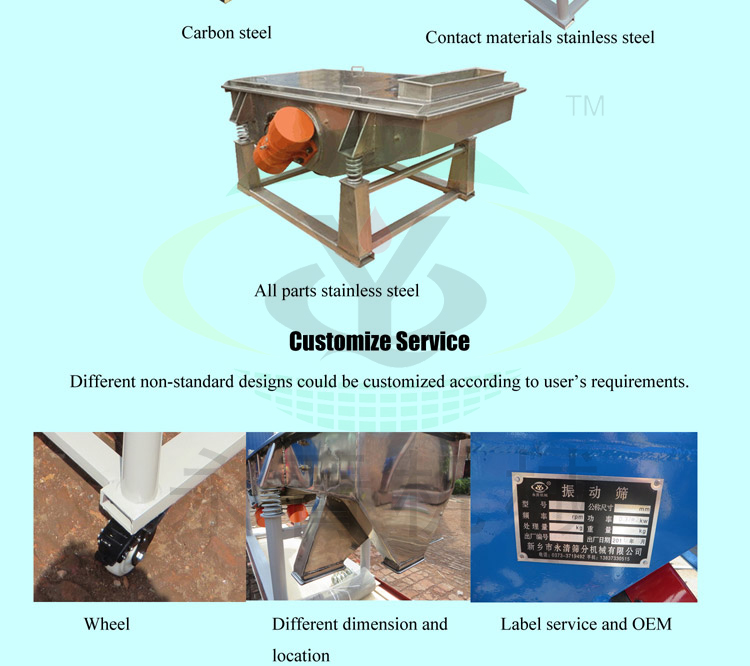

8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
