Rotary Ultrasonic Vibro Sieve for Seaweed Powder

Availability:
Quantity:

Rotary Ultrasonic Vibro Sieve for Seaweed Powder


COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD   (www.yongqingtech.com)

Establishing time

2006

Company nature

China 0EM, factory.

Quality certificate

CCC, ISO9001-2008, CE

37-year industry   experience

17-year china manufacturer

14-year Alibaba golden supplier

4 field patents

Main products

Vibration screen, Conveyor system, Vibration motor,   Vibration feeder, lab test sieve, Vibration table, etc.

Exporting countries

More than 120   countries


Product name: ultrasonic vibro sieve

Application: seaweed powder

Model: XZS-1000-2 (2 layers)

Diameter: 1000mm

Mesh size: 300 mesh, 325 mesh

Material: all stainless steel 304

Motor: 0.75kw (vertical vibration motor)

Voltage: 380V, 50Hz, 3 phase, 1460rpm

Package: 1200*1150*1080mm

Gross weight: 315KG

Delivery time: 7 days after deposit

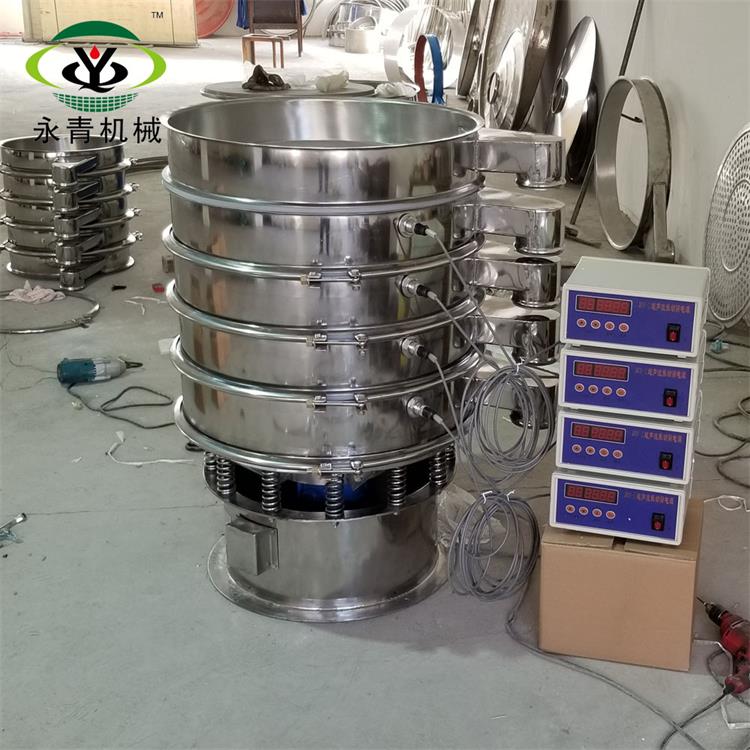

ultrasonic sieve screen


Principle

The ultrasonic vibrating screen can convert 220V/50HZ and 110V/60HZ power into 18KHz power. The ultrasonic transducer can transform this high frequency power into mechanical vibration of the same frequency. The suitable fine powdery materials include those with a diameter of 0.063mm-0.02mm.

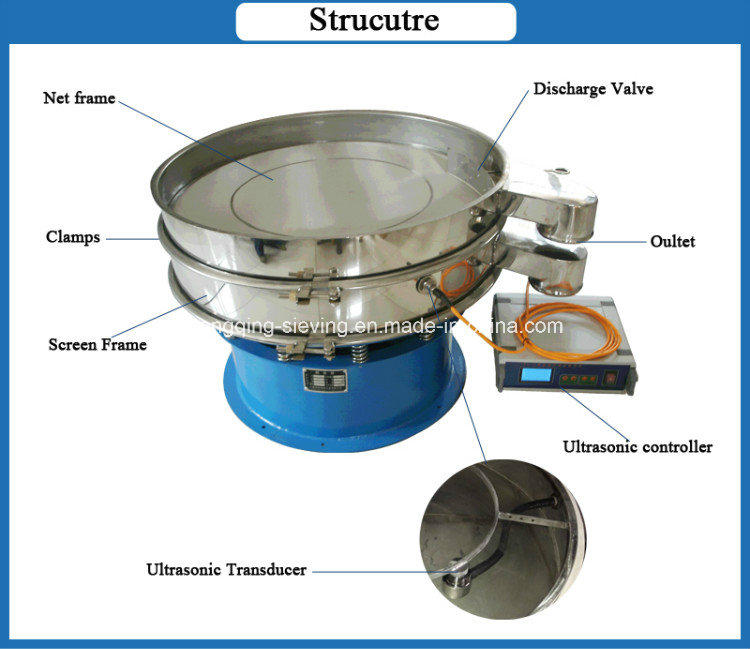

structure


Parameters

Model

Diameter

(mm)

Mesh Area

Per Deck (m2)

Number of

Decks

Power

(KW)

Maximum Size to Process(mm)

CXZS-500

500

0.14

1

0.25

10

CXZS-600

600

0.22

1

0.25

10

CXZS-800

800

0.42

1

0.55

10

CXZS-1000

1000

0.63

1

0.75

10

CXZS-1200

1200

0.95

1

1.1

10

CXZS-1500

1500

1.54

1

1.5

10


Technical Specifications

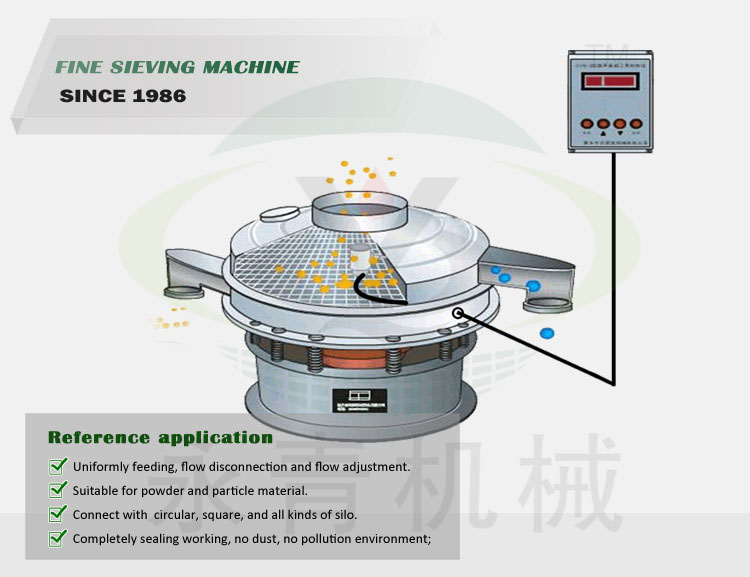

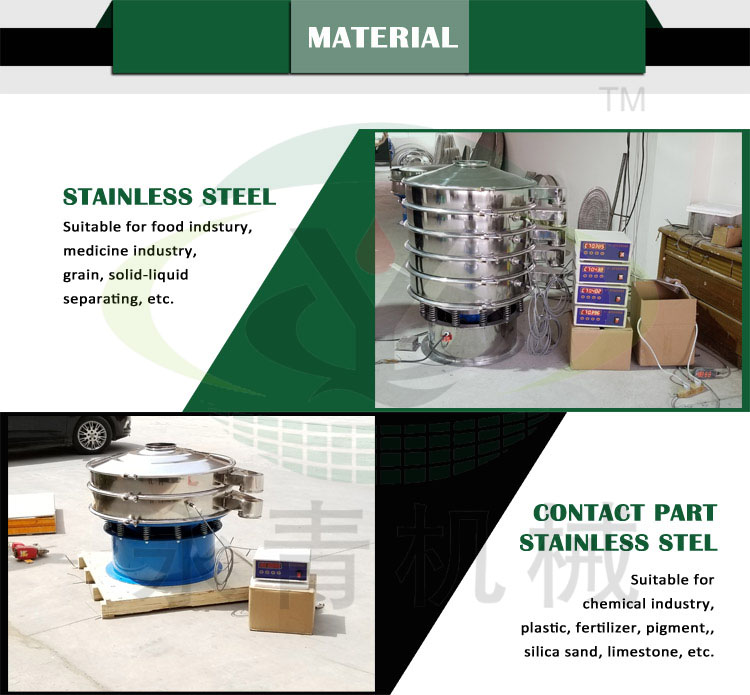

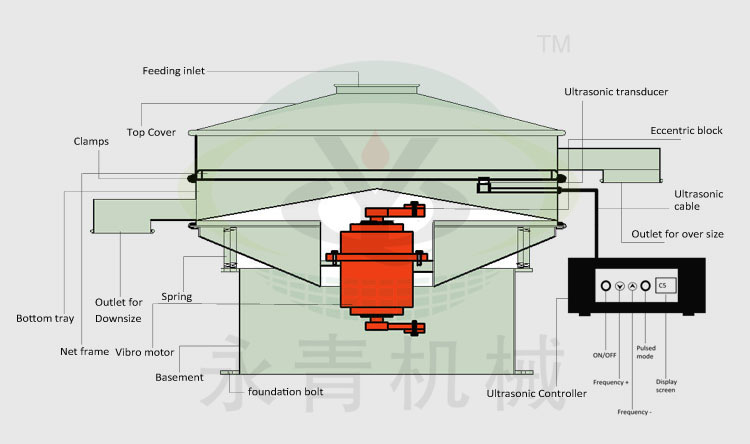

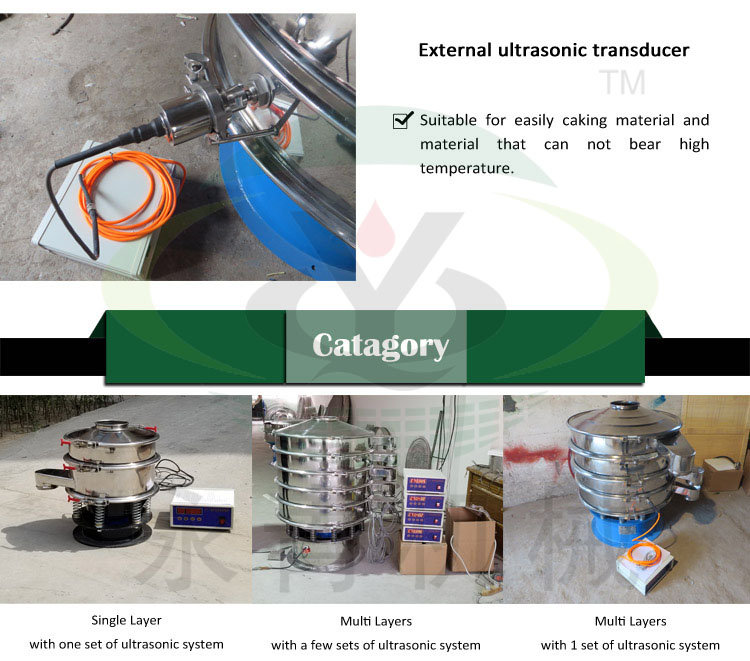

The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:ultrasonic 01ultrasonic 02ultrasonic 03ultrasonic 04ultrasonic 05ultrasonic 06ultrasonic 07

1. Name of material: _____

2. Moisture:_____%

3. Specific gravity:_____t/m3

4. Capacity:________kg/ hour

5. Screen layer:_______

6. Screen mesh size:______ mesh . ______ mesh. ______ mesh

7. Voltage:______V,  Frequency:______HZ, ______phase

8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
