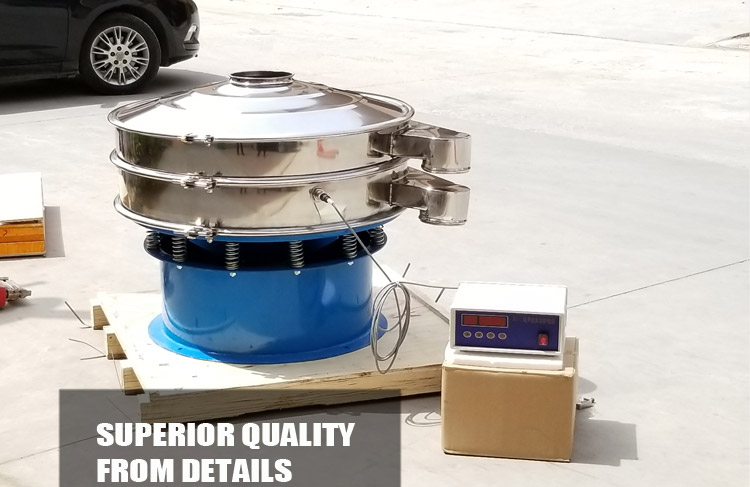

Rotary Ultrasonic Fine Powder Vibro Sieve
Introduction

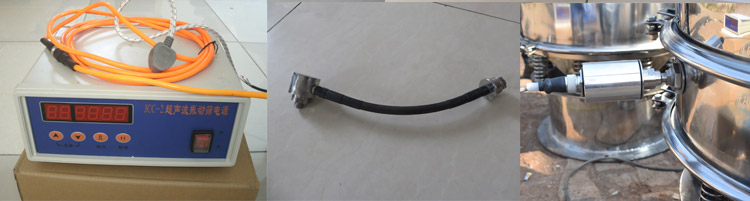

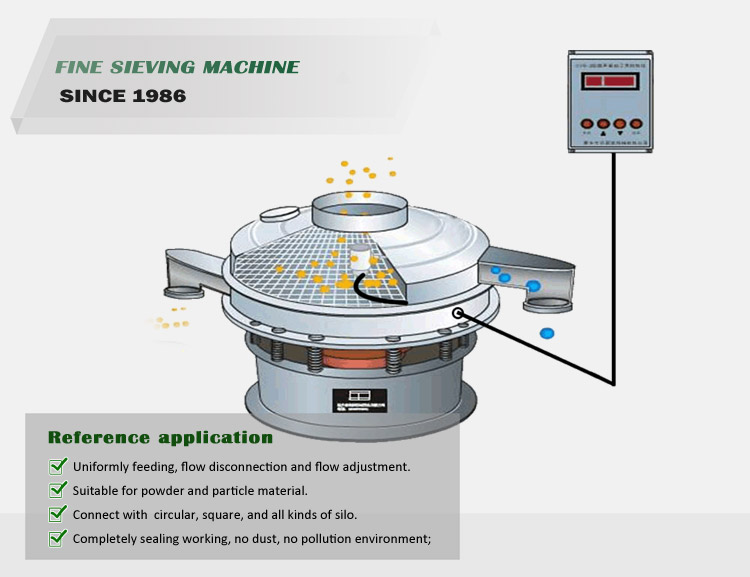

The ultrasonic vibro sieve can convert 220V/50HZ and 110V/60HZ power into 18KHz power. The ultrasonic transducer can transform this high frequency power into mechanical vibration of the same frequency. The suitable fine powdery materials include those with a diameter of 0.063mm-0.02mm.
Features
1. During the gravity setting, low density powder (<0.3 ton per cubic meter) can be prevented from slightly contacting with meshes to some degree, and the material mobility can also be reduced. Besides, the high density metal powder can be prevented from staying at or wedging into the mesh and the material's adhesion to the mesh due to the static charge can be alleviated. Thus the screening performance and efficiency can be both improved.
2. The penetrating rate of the material is generally 50%-400% higher than that of vibrating screen without ultrasonic transducers.
3. The screen cleaning time for our ultrasonic vibrating screen is greatly reduced, and sometimes this procedure can be saved.
4. Those materials adhering to the screen can be decomposed, reducing the materials left on the screen.
5. The screening times can be greatly reduced.
6. A self-protective motor is available for the ultrasonic vibrating screen. When there is a short circuit, phase loss, or unstable voltage, the motor will stop working automatically. Thus both the motor and the power supplier can be protected, making the operation much safer.
7. The motor has an IP rating of IP65. It is heat resistant, oil resistant, dustproof and waterproof.
Parameters
Diameter (mm) | Mesh Area Per Deck (m2) | Number of Decks | Power (KW) | Maximum Size to Process(mm) | |
CXZS-500 | 500 | 0.14 | 1 | 0.25 | 10 |
CXZS-600 | 600 | 0.22 | 1 | 0.25 | 10 |
CXZS-800 | 800 | 0.42 | 1 | 0.55 | 10 |
CXZS-1000 | 1000 | 0.63 | 1 | 0.75 | 10 |
CXZS-1200 | 1200 | 0.95 | 1 | 1.1 | 10 |
CXZS-1500 | 1500 | 1.54 | 1 | 1.5 | 10 |
Technical Parameters
COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD (www.yongqingtech.com) | ||
Establishing time | 2006 | |
Company nature | China 0EM, factory. | |
Quality certificate | CCC, ISO9001-2008, CE 37-year industry experience 17-year china manufacturer 14-year Alibaba golden supplier 4 field patents | |
Main products | Vibration screen, Conveyor system, Vibration motor, Vibration feeder, lab test sieve, Vibration table, etc. | |
Exporting countries | More than 120 countries |
