Palm Oil Filtration Vibro Sieve Separator

Availability:
Quantity:
Overview

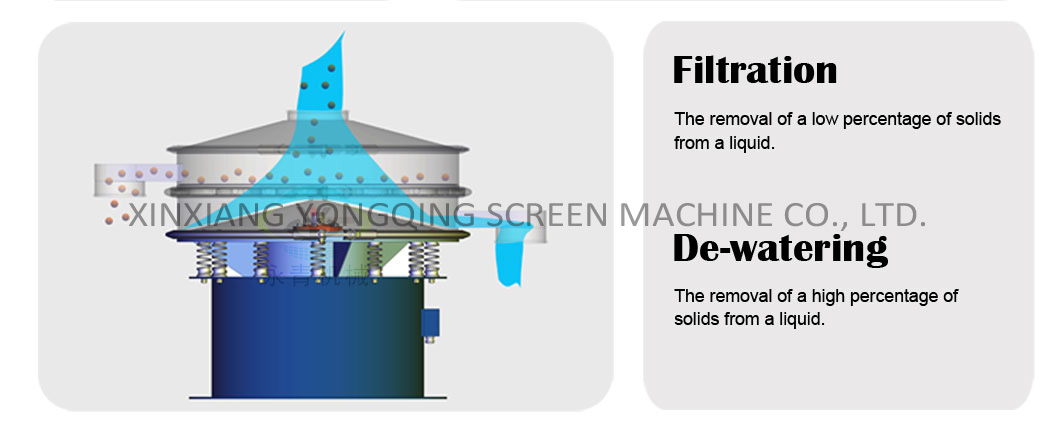

vibrating-sieve_03

A Vibro Sieve Separator, also known as a vibrating filter or vibro screen, is a specialized type of vibrating sieve used for liquid-solid separation and liquid filtration processes. Unlike traditional filters that rely on pressure or gravity, Vibro Sieve Separators utilize vibration to separate particles from liquids, making them highly efficient and versatile in various industries.

The working principle of a Vibro Sieve Separator involves generating controlled vibrations that cause the liquid and solid particles to separate. The sieve consists of a screen surface with fine mesh openings, supported by a vibration motor. When the liquid-solid mixture is poured onto the sieve, the vibration motor imparts rapid and controlled vibrations to the screen. These vibrations help the liquid pass through the mesh, while the solid particles are retained on the surface, forming a filter cake.

Product Description

Vibro Sieve Separators are used to separate impurities and unwanted solids from crude palm oil during the processing stages. This helps improve the overall quality and purity of the final palm oil product.


The Vibro Sieve Separator used in palm oil applications is typically designed with stainless steel or other corrosion-resistant materials to withstand the harsh environment and prevent contamination of the palm oil.

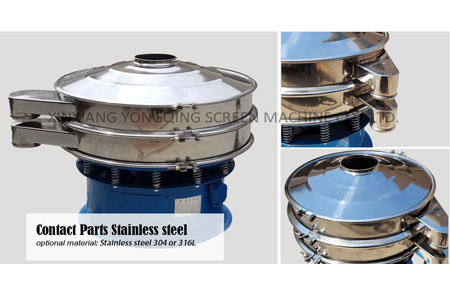

vibra-sieve 450

Contact parts stainless steel 304

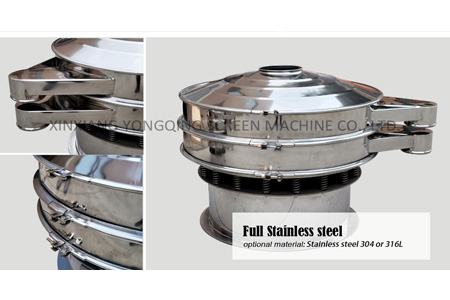

vibra-sieve450X300

Full stainless steel 304

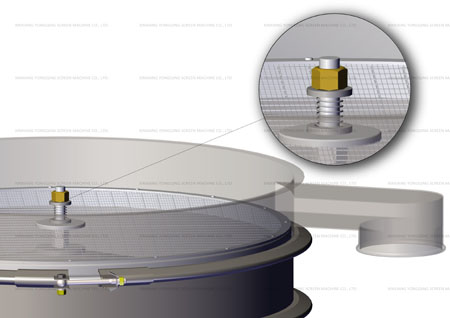

XZS1000 filtration sieve 4

Mesh size

The mesh screens used in the sieves can be selected based on the desired particle size separation. The common mesh size for palm oil vibro sieve separator is 40 mesh and 30 mesh. Different mesh sizes allow for various levels of filtration and separation efficiency.

The capacity and throughput of the Vibro Sieve Separator depend on factors such as the size of the sieve and the properties of the palm oil being processed. Manufacturers provide specifications regarding these parameters.

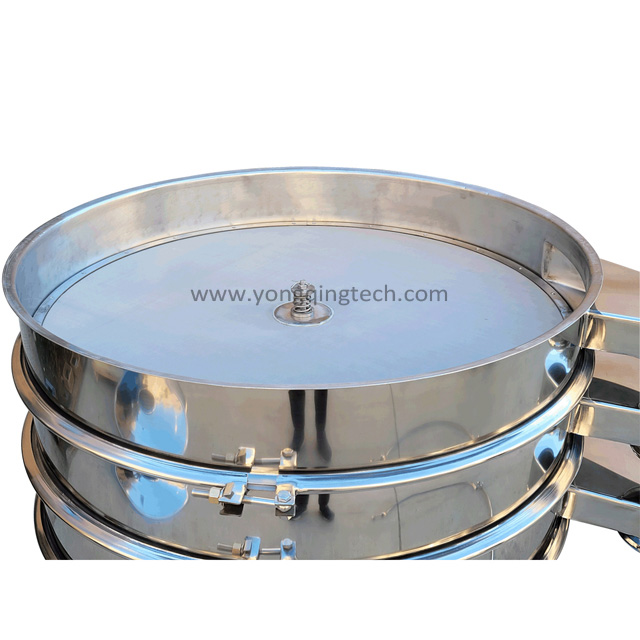

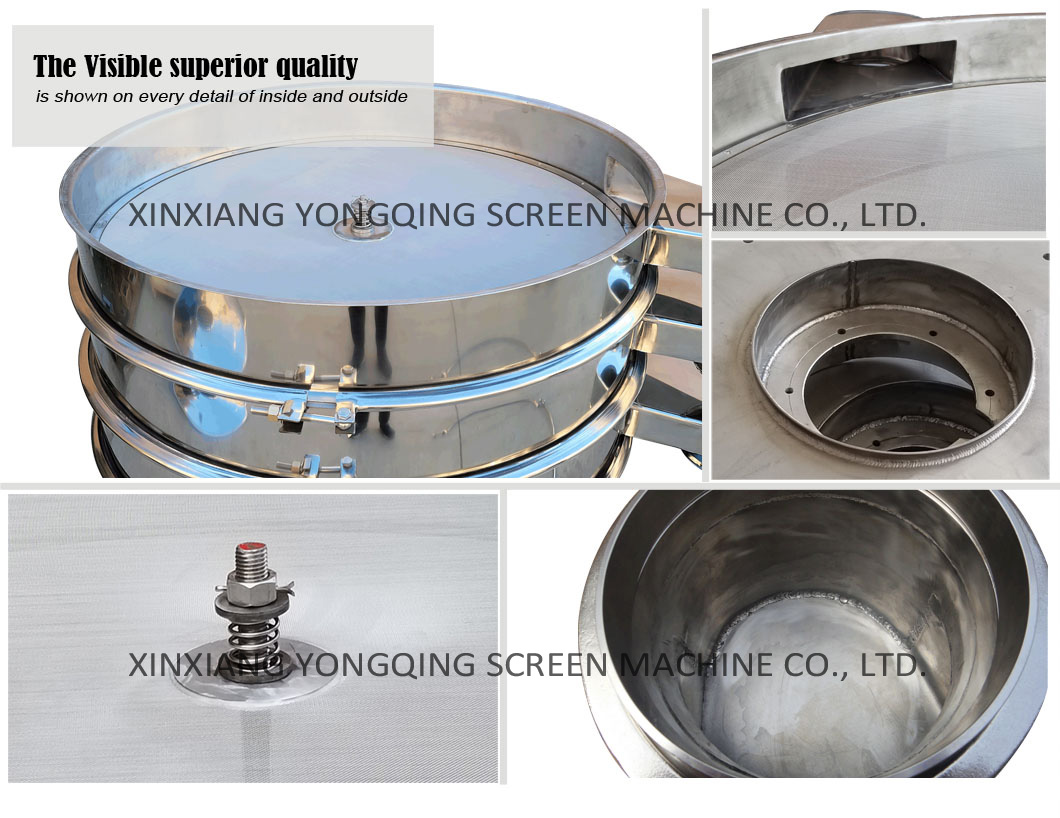

filtration sieve


Cleaning Mechanisms: Vibro Sieve Separators are equipped with cleaning mechanisms to prevent clogging and maintain efficient performance. These mechanisms may include rubber balls, brushes, or air jets that help keep the mesh screens clear during operation.

vibrating-sieve_07

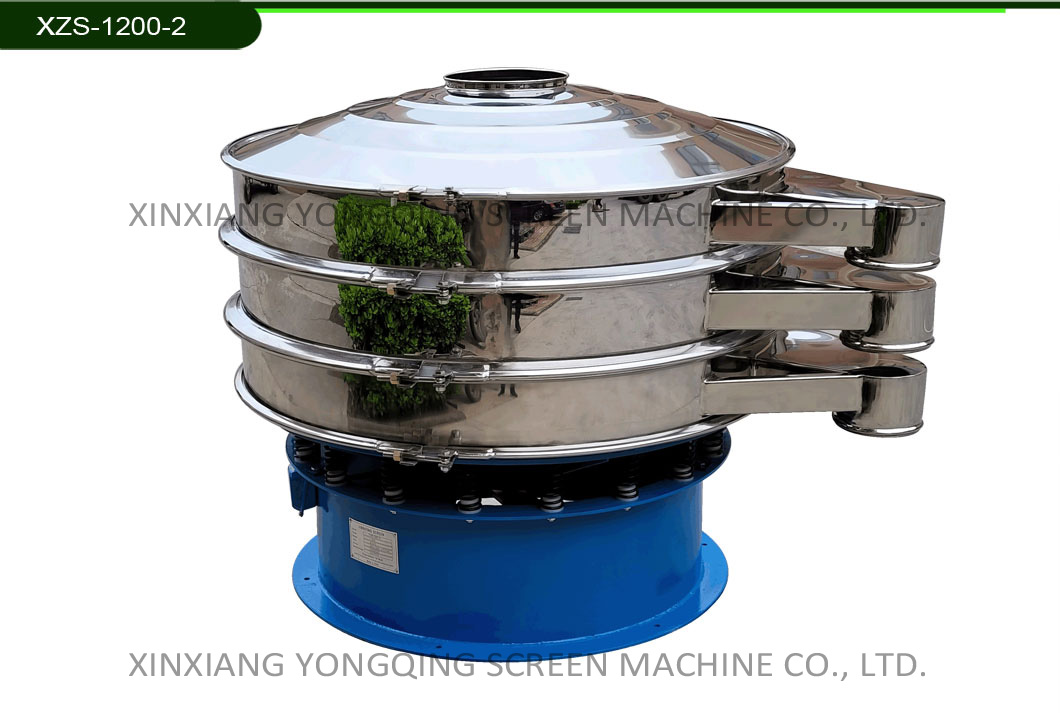

vibra-sieve_05

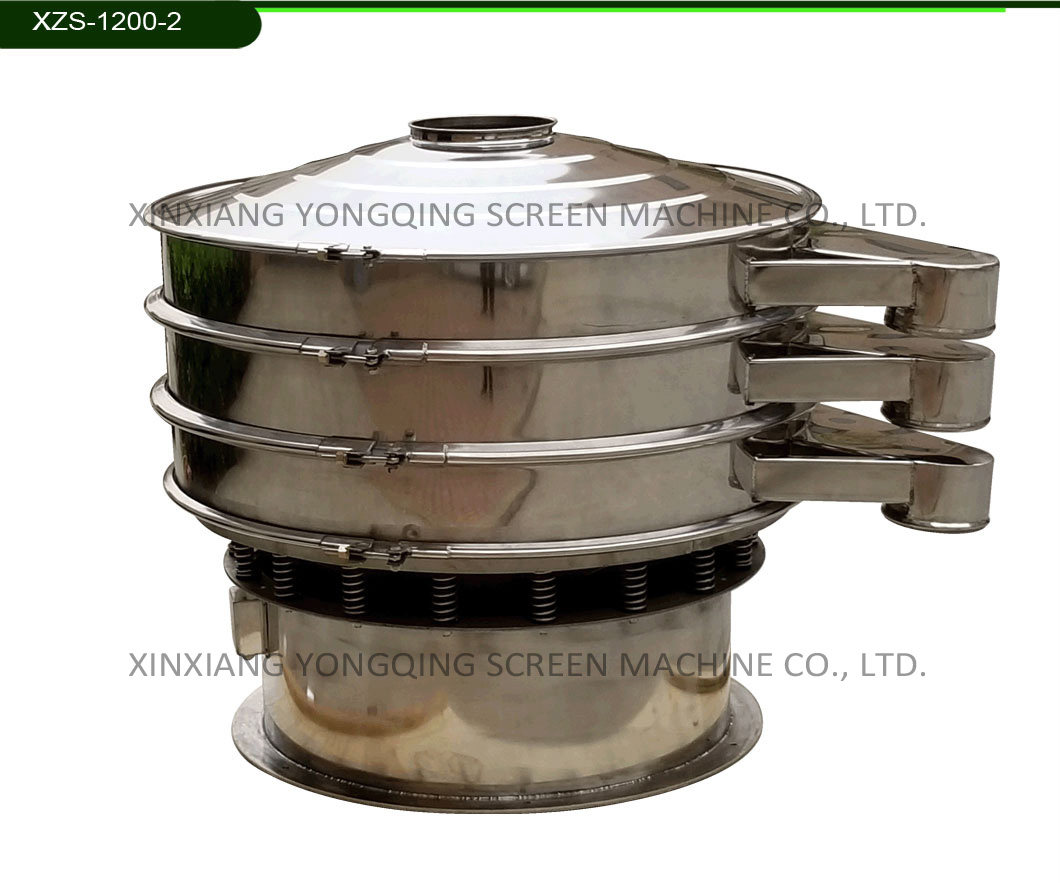

vibra-sieve--SS304_06

Packaging & Shipping

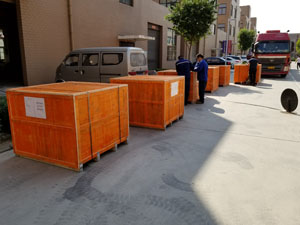

20190330_155517


20200917_144307


20210927_161324


Select a suitable vibro sieve separator

1. Material: Choose a sieve made from materials compatible with the liquid being filtered to prevent corrosion or contamination.

2. Mesh Size: Select the appropriate mesh size based on the particle size of the solids and the desired level of filtration.

3. Capacity: Determine the required throughput and select a sieve with the appropriate capacity to meet the filtration demands.

4. Cleaning Mechanism: Consider the self-cleaning mechanism of the sieve to ensure efficient and continuous filtration.
