Lab Use Test Vibro Sifter Shaker for Soil

Availability:
Quantity:

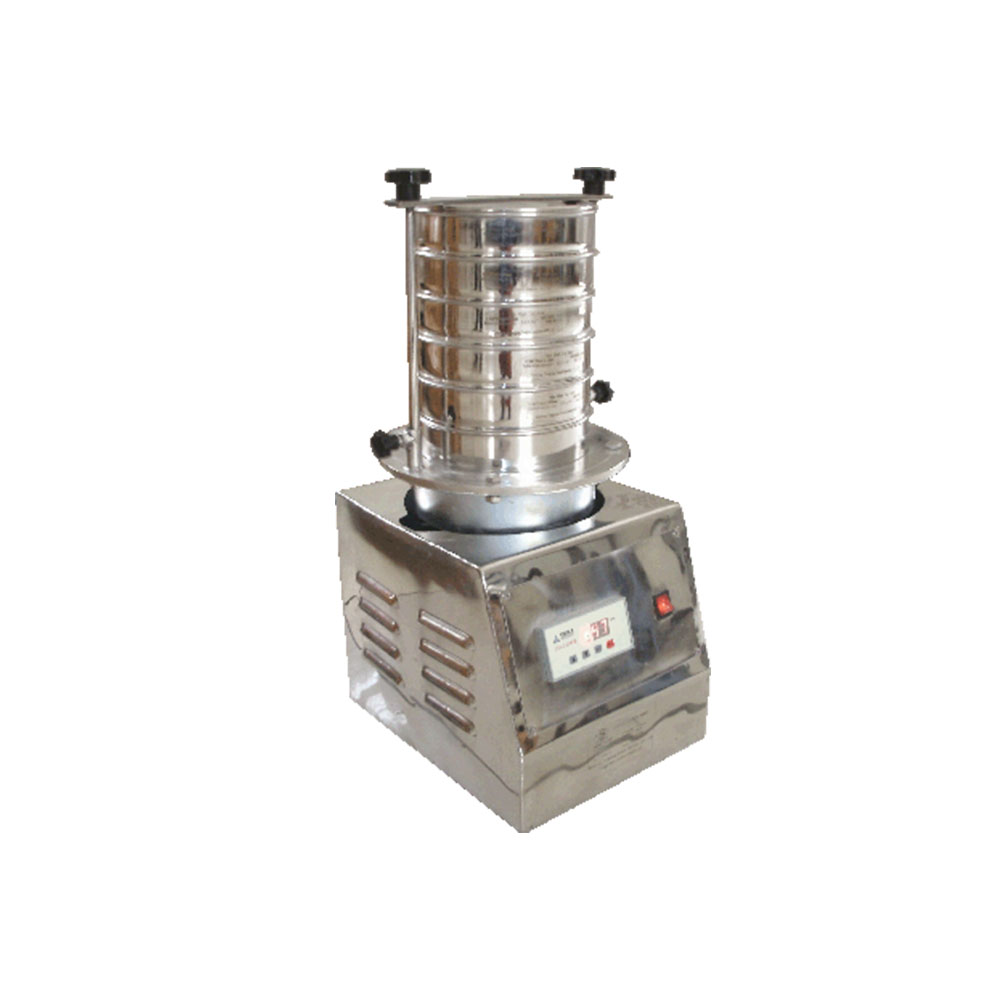

Lab Use Test Vibro Sifter Shaker for Soil


Introduction

The SY-200/SY-300 test vibro sifter shaker, as a standard lab sieving machine, can be used for grading powder and granule, and filtering fluid in laboratories and testing rooms. With this filtering device, you can precisely analyze the granularity and powdery materials, and determine the solid content and impurity content in fluids.


Working Principle

The test vibro sifter shaker uses the new vertical motor as vibration source. Eccentric hammers are installed on both ends of vibration motor, generating a horizontal, vertical, inclined three-dimensional motion. Vibration force is passed through the screen frame chassis standard sieve box and materials to achieve excellent classification.


The trajectory of the material in the sieve surface can be changed by adjusting the phase angle of the eccentric weights under. At the same time, the run time can be set on the timer, ensure that the material is fully graded.

structure


Parameters

Item

Commodity

Units

Specification

1

Sieves

Layer

5

2

Sieve dimension

mm

200*50

3

Feeding size

mm

0.02~30

4

Noise

dB

≤50

5

Feeding batch

g/time

≤200

6

Amplitude

mm

≤5

7

Motor

Voltage

V

220V

Rotating

rpm

1460

Power

kw

0.12

8

Dimension

mm

360*300*470

9

Weight

Kg

42


Components

Test-Sieve SY 200

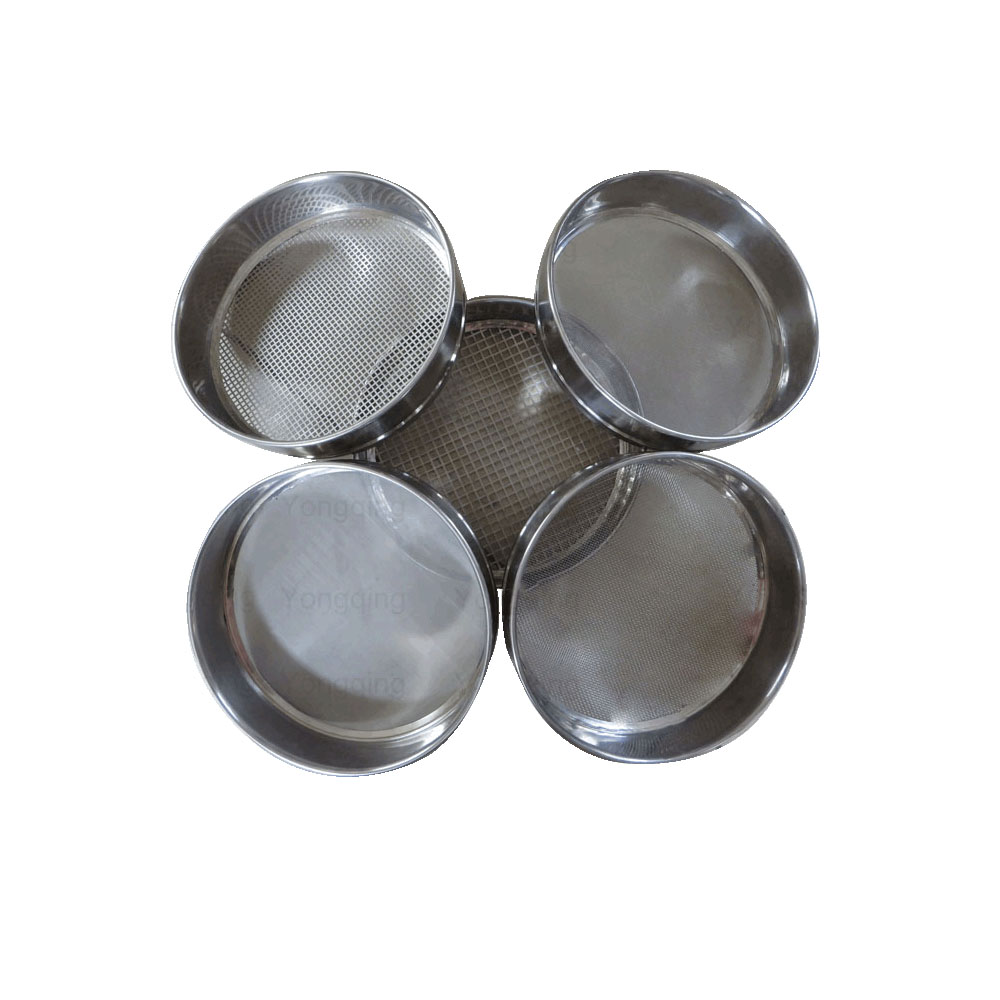

Sieve Mesh

实验筛网

There are two kinds of sieve mesh:

1. Woven wire mesh: from 3 microns to 4mm

2. Perforated/punched square/round hole: from 1mm to 63mm


Features

1. This test vibro sifter shaker has low working noise (<50dB), high efficiency, and high precision (>95%).


2. Multi-dimensional vibration can be created, making the sieving process highly efficient.


3. The standard screen can guarantee the high precision of the analysis.


4. A timer is available for the motors of our test sieve shaker. Different sieves with different meshes can be used to screen a certain kind of material for a same period of time, ensuring that data are comparable, and the data's error is reduced to a low level. Thus you can access the material quality accurately by this premium shaker.


5. It could be used in foodstuff, medicine, chemical industry, metallurgy, abrasive, ceramics, diamond, mining, petroleum, etc.


Delivery

test sieve delivery 1


COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD   (www.yongqingtech.com)

Establishing time

2006

Company nature

China 0EM, factory.

Quality certificate

CCC, ISO9001-2008, CE

37-year industry   experience

17-year china manufacturer

14-year Alibaba golden supplier

4 field patents

Main products

Vibration screen, Conveyor system, Vibration motor,   Vibration feeder, lab test sieve, Vibration table, etc.

Exporting countries

More than 120 countries


Company Advantages

a. One-stop service: design, production, sale, after sale.

b. 37-year experience

c. 12 months warranty

d. Lifelong technical support

e. 24 hours online

f. Free technical guidance and professional technical team

g. Delivery within 7 days

h. Original equipment manufacturer (OEM)

i. Sample testing support
