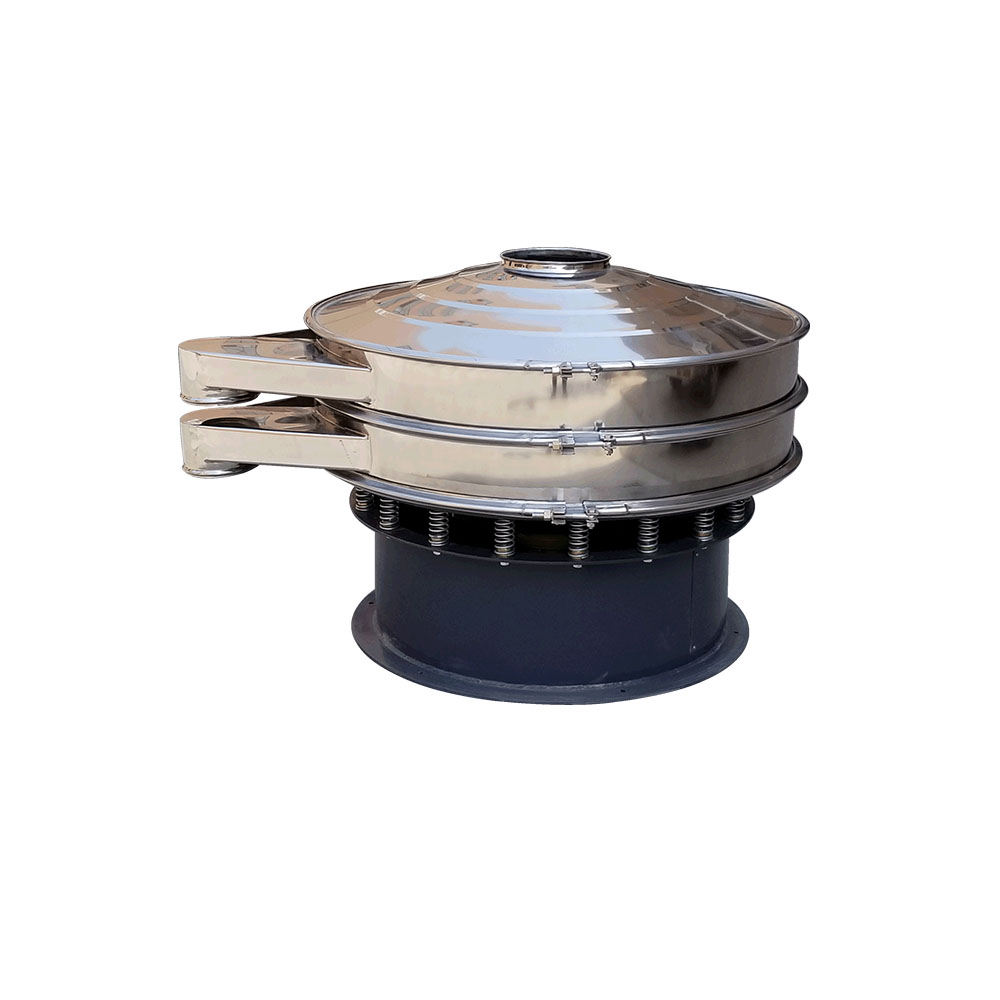

Impurity Removal Circular Corn Vibro Sieve
Product name: Vibro Sieve
Application: removal impurities in the corn/wheat/rice etc.
Model: XZS-600-1(1 layer)
Diameter: 600mm
Mesh size: 4mm
Material: all stainless steel 304
Motor: 0.25kw (vertical vibration motor)
Voltage: 380V, 50Hz, 3 phase, 1460rpm
Package: 750*750*720mm
Gross weight: 130KG
Delivery time: 7 days after receiving prepayment
Applications
Parameters
XZS- 450 | XZS- 500 | XZS- 600 | XZS- 800 | XZS- 1000 | XZS- 1200 | XZS- 1500 | XZS- 1800 | XZS- 2000 | |
Diameter (mm) |
450 | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Screen Dia.(mm) | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 | |
Layer | 1 | 1-5 | |||||||
Mesh (mm) | 0.025-20 | ||||||||
RPM | 1460 | ||||||||
Feeding size(mm) | <20 | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
Power (kw) | 0.25 | 0.25 | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 |
It has 3 kinds of material and 1-5 layers for choice.
a. Full stainless steel
b. Contact part stainless steel
c. Full carbon steel
Technical Specifications
Certificates
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
