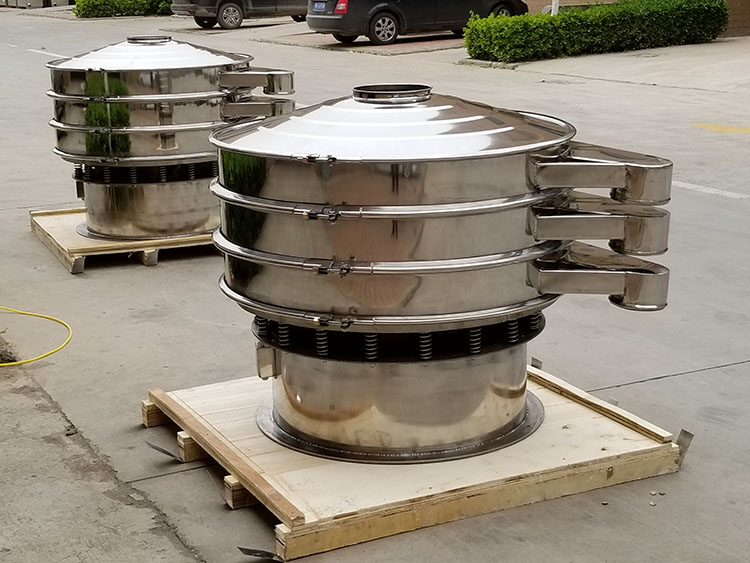

Hot Sale Medicine Powder Rotary Vibro Sifter
Product name: vibro sifter
Application: medicine powder
Model: XZS-1000-2 (2 layers)
Diameter: 1000mm
Mesh size: 16 mesh, 40 mesh
Material: all stainless steel 304
Motor: 0.75kw (vertical vibration motor)
Voltage: 380V, 50Hz, 3 phase, 1460rpm
Package: 1150*1150*1080mm
Gross weight: 285KG
Delivery time: 7 days after deposit
Parameters
XZS- 450 | XZS- 500 | XZS- 600 | XZS- 800 | XZS- 1000 | XZS- 1200 | XZS- 1500 | XZS- 1800 | XZS- 2000 | |
Diameter (mm) |
450 | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Screen Dia.(mm) | φ430 | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 |
Layer | 1 | 1-5 | |||||||
Mesh (mm) | 0.025-20 | ||||||||
RPM | 1460 | ||||||||
Feeding size(mm) | <20 | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
Power (kw) | 0.25 | 0.25 | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 |
Applications
A. Dry separation
- Separation of different materials on the basis of their particle shape
- Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
B. Dry classification
- Separation of solid particles into precise sized fractions
- Food, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives.
C. Solid/Liquid separation
- Dewatering of solids and clarification of liquids
- Foods, chemicals, pulp
D. Solids classification in liquid medium
- Separation of solids into sized fraction in a liquid medium
- Chemicals, minerals, pulp and paper, ceramics, waste disposal
Technical Specifications
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
Hot Sale Medicine Powder Rotary Vibro Sifter
Product name: vibro sifter
Application: medicine powder
Model: XZS-1000-2 (2 layers)
Diameter: 1000mm
Mesh size: 16 mesh, 40 mesh
Material: all stainless steel 304
Motor: 0.75kw (vertical vibration motor)
Voltage: 380V, 50Hz, 3 phase, 1460rpm
Package: 1150*1150*1080mm
Gross weight: 285KG
Delivery time: 7 days after deposit
Parameters
XZS- 450 | XZS- 500 | XZS- 600 | XZS- 800 | XZS- 1000 | XZS- 1200 | XZS- 1500 | XZS- 1800 | XZS- 2000 | |
Diameter (mm) |
450 | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Screen Dia.(mm) | φ430 | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 |
Layer | 1 | 1-5 | |||||||
Mesh (mm) | 0.025-20 | ||||||||
RPM | 1460 | ||||||||
Feeding size(mm) | <20 | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
Power (kw) | 0.25 | 0.25 | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 |
Applications
A. Dry separation
- Separation of different materials on the basis of their particle shape
- Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
B. Dry classification
- Separation of solid particles into precise sized fractions
- Food, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives.
C. Solid/Liquid separation
- Dewatering of solids and clarification of liquids
- Foods, chemicals, pulp
D. Solids classification in liquid medium
- Separation of solids into sized fraction in a liquid medium
- Chemicals, minerals, pulp and paper, ceramics, waste disposal
Technical Specifications
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
