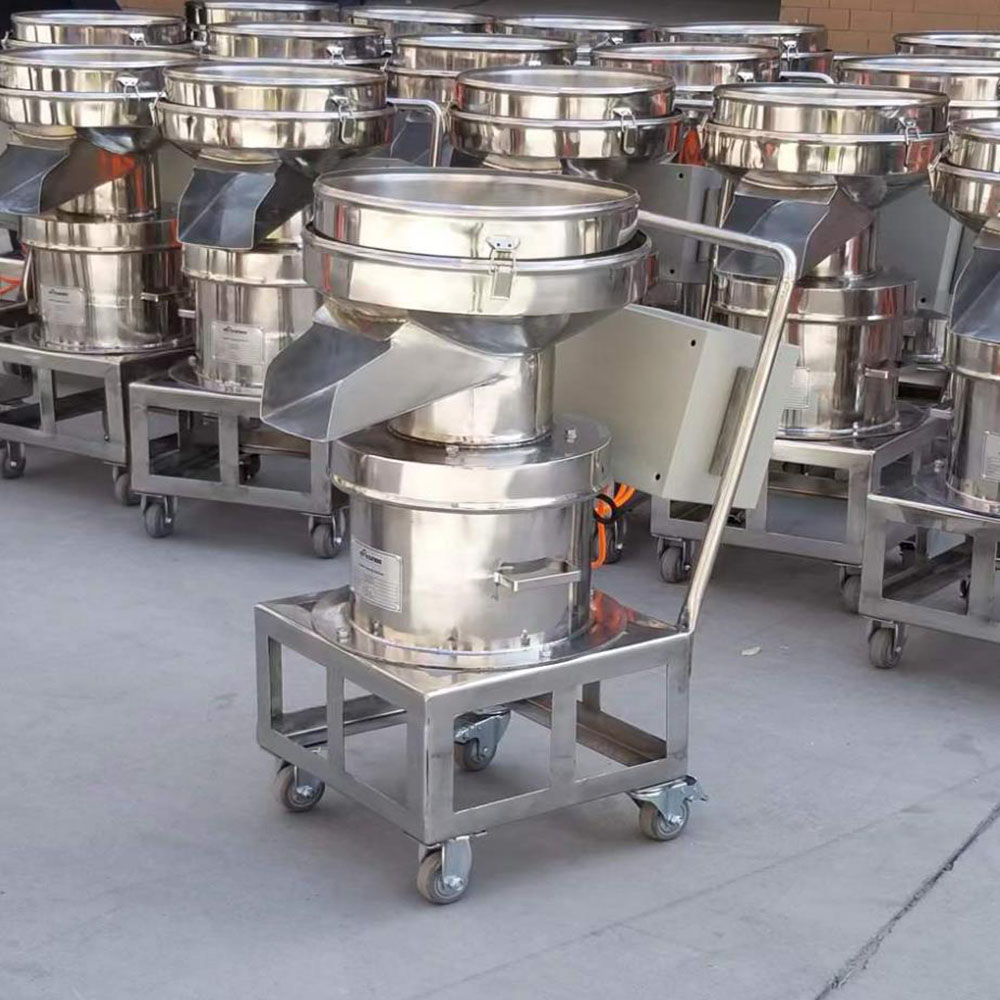

Home Use Portable Rotary Flour Vibro Sieve

Availability:
Quantity:

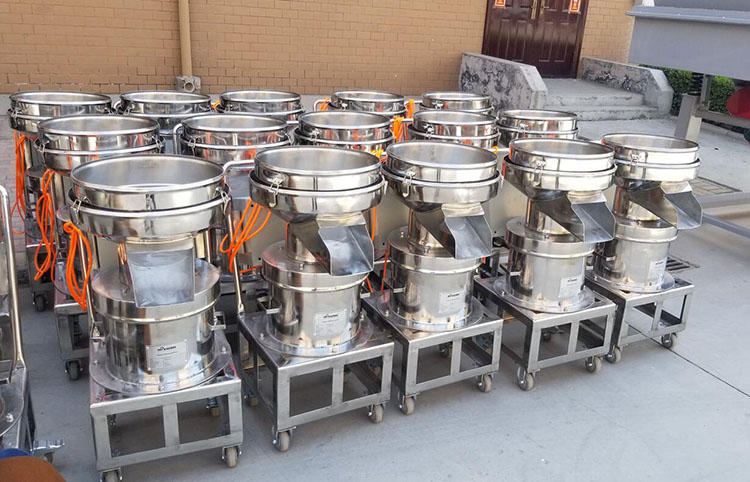

Home Use Portable Rotary Flour Vibro Sieve


Take a popular model for clients:

Product name: Vibro Sieve

Application: remove impurity in the flour

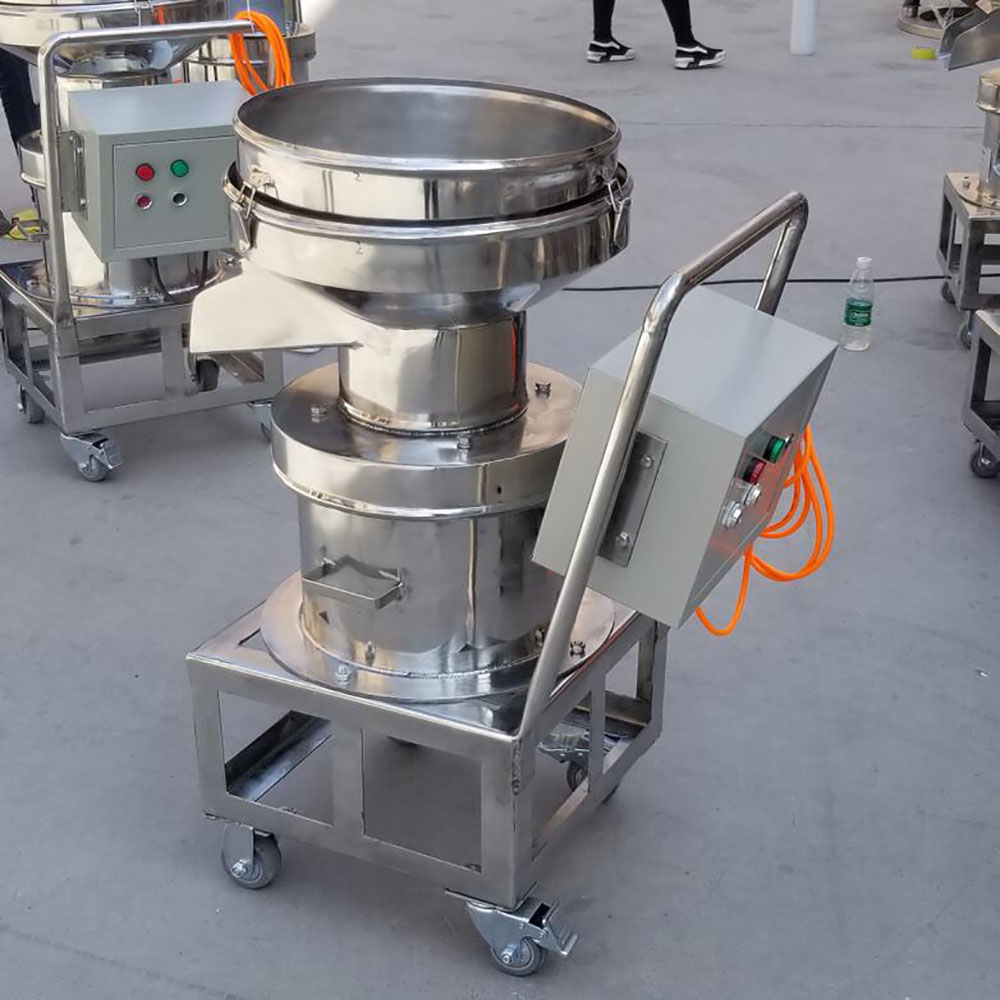

Model: XZS-450-1(1 layer)

Diameter: 450mm

Mesh size: 40 mesh

Material: all stainless steel 304

Motor: 0.25kw (vertical vibration motor)

Voltage: 380V, 50Hz, 3 phase or single phase, 1460rpm

Package: 550*550*680mm

Gross weight: 80KG

Delivery time: 7 days after receiving prepayment

12


Parameters

Model

XZS-

450

XZS-

500

XZS-

600

XZS-

800

XZS-

1000

XZS-

1200

XZS-

1500

XZS-

1800

XZS-

2000

Diameter

(mm)

450

500

600

800

970

1170

1470

1770

1970

Screen Dia.(mm)

φ430

φ430

φ530

φ730

φ900

φ1100

φ1400

φ1700

φ1900

Layer

1

1-5

Mesh

(mm)

0.025-20

RPM

1460

Feeding size(mm)

<20

<20

<20

<30

<30

<50

<50

<50

<50

Power (kw)

0.25

0.25

0.25

0.55

0.75

1.1

1.5

2.2

3.0

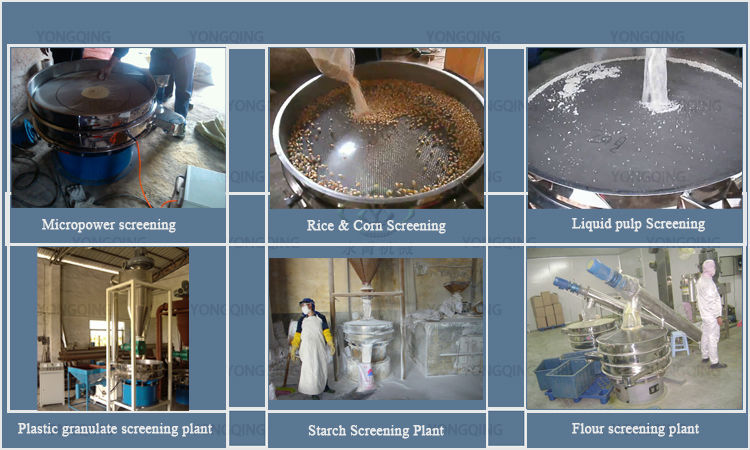

Applications

适用行业


Technical Specifications

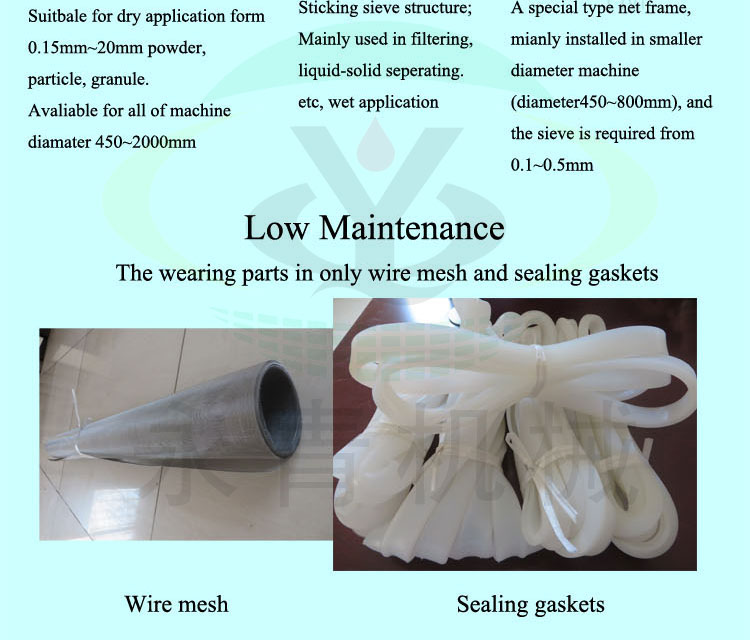

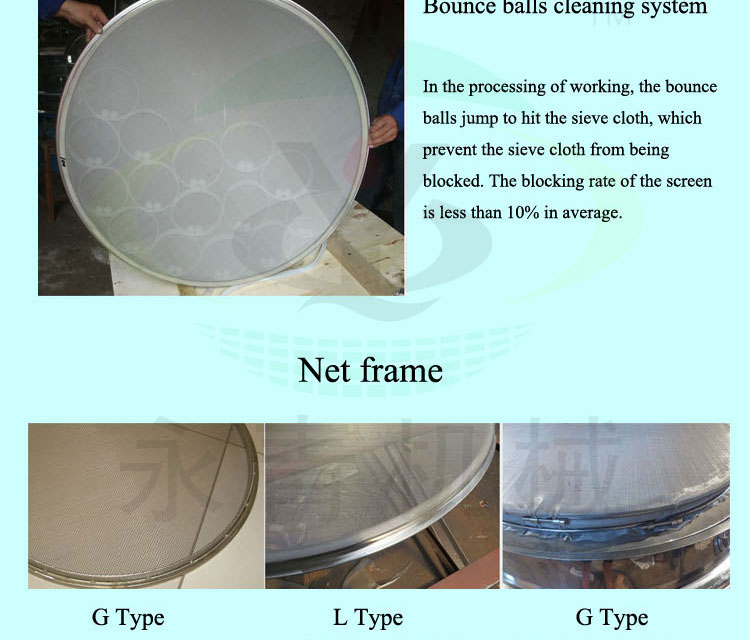

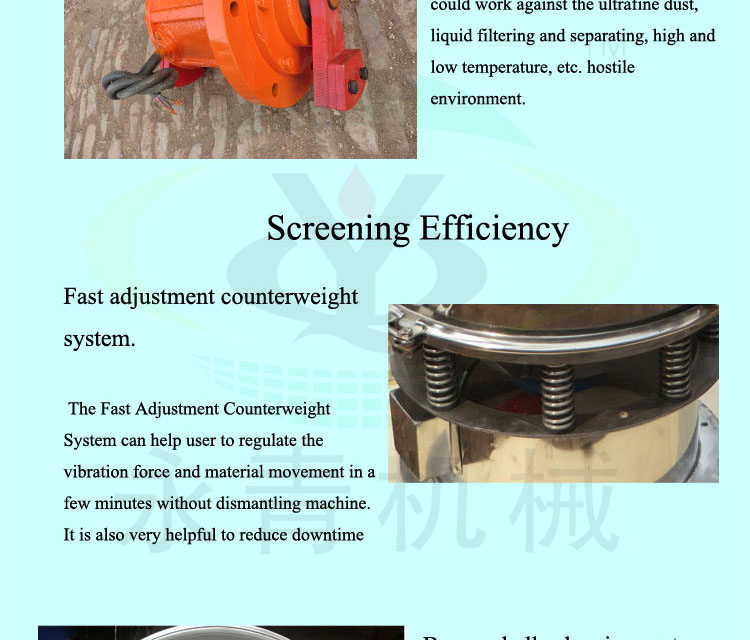

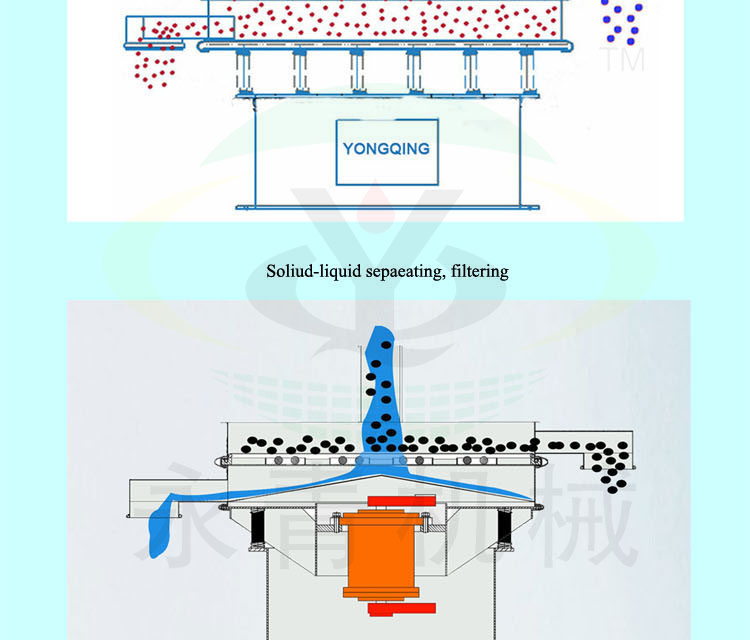

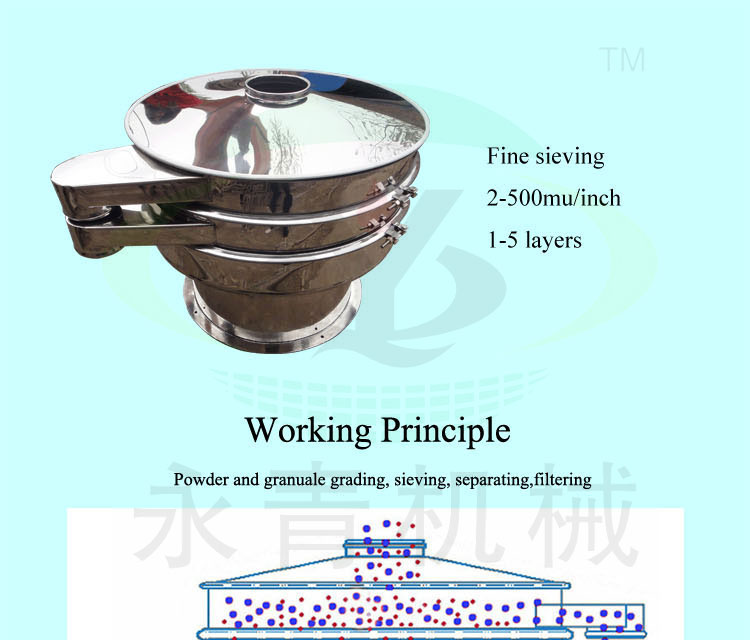

一层全不锈钢1_01一层全不锈钢1_02一层全不锈钢1_03一层全不锈钢1_04一层全不锈钢1_05一层全不锈钢1_06



COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD   (www.yongqingtech.com)

Establishing time

2006

Company nature

China   0EM, factory.

Quality certificate

CCC,   ISO9001-2008, CE

37-year   industry experience

17-year china manufacturer

14-year Alibaba golden supplier

4 field patents

Main products

Vibration   screen, Conveyor system, Vibration motor, Vibration   feeder, lab test sieve, Vibration table, etc.

Exporting countries

More than 120   countries


Advantages
