High Capacity Rotary Flour vibrating sifter Shaker
What is the machine?

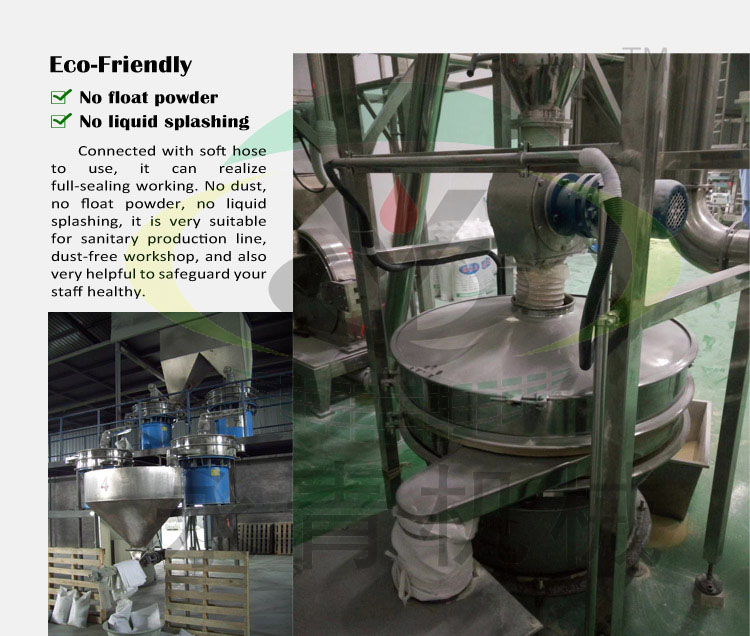

XZS series vibrating sifter is a high efficiency screening machine manufactured with advanced technologies and designs. The XZS vibrating sifter features eco-friendliness, conveninent sifter changing process, low working noise, enclosed structure, high safety and efficiency. It can be used for screening and filtering granular, powdery and serous materials.

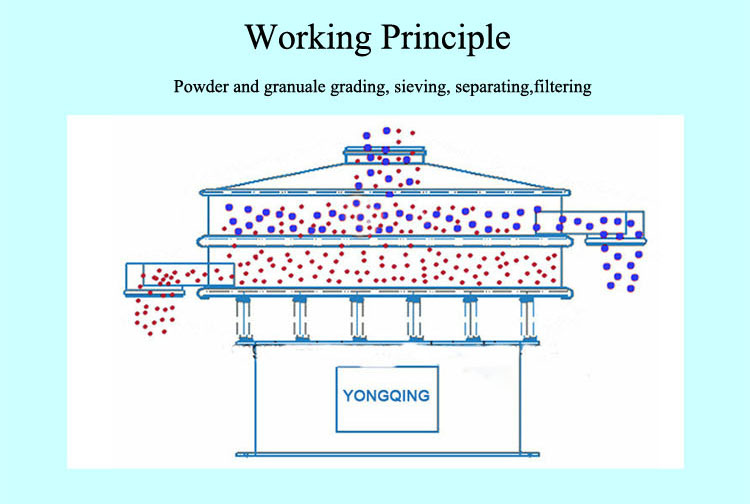

What is its working principle?

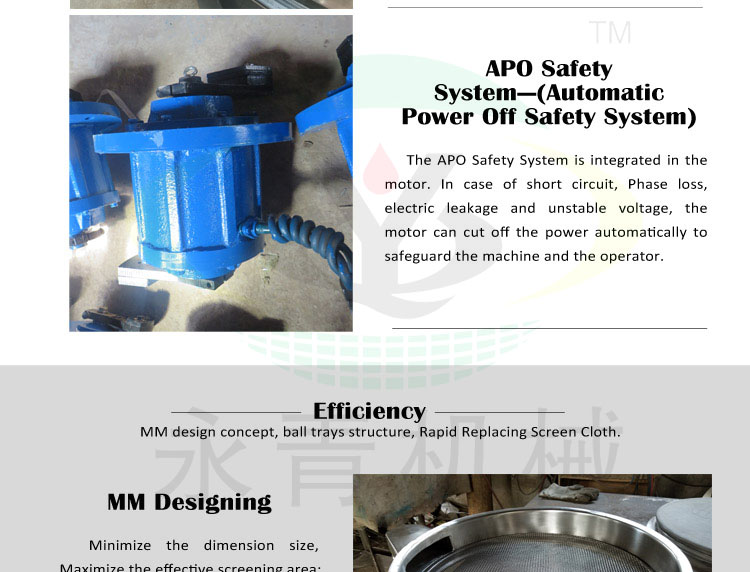

Our vibrating sifter, as a piece of powdery material screening equipment, uses vertical vibration motor or special vibration exciter as its vibration source. The vibration motor and vibration exciter have an eccentric block at the both upper and lower sides. The eccentric blocks can generate a three-dimensional movement in horizontal, vertical and inclined direction. By adjusting the phase angles of the upper and lower eccentric blocks, the material on the screen can change the movement locus, achieving suitable screening performance.

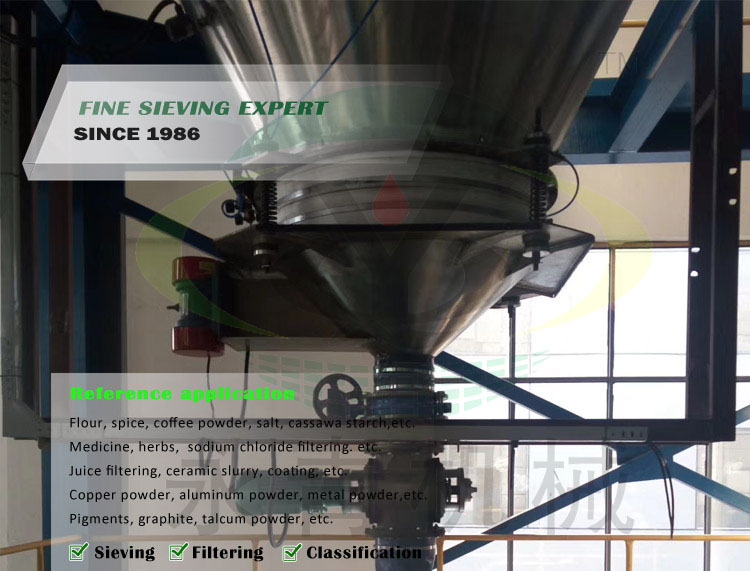

Applications
A. Dry separation
- Separation of different materials on the basis of their particle shape
- Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
B. Dry classification
- Separation of solid particles into precise sized fractions
- Food, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives.

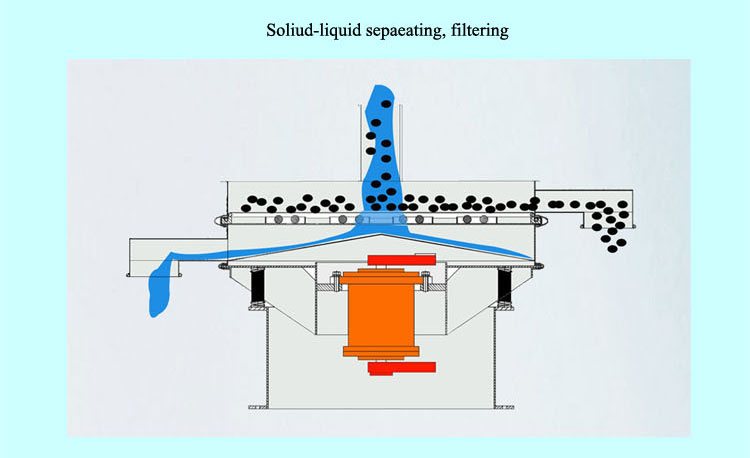

C. Solid/Liquid separation
- Dewatering of solids and clarification of liquids
- Foods, chemicals, pulp
D. Solids classification in liquid medium
- Separation of solids into sized fraction in a liquid medium
- Chemicals, minerals, pulp and paper, ceramics, waste disposal
Parameters
Model | XZS- 500 | XZS- 600 | XZS- 800 | XZS- 1000 | XZS- 1200 | XZS- 1500 | XZS- 1800 | XZS- 2000 |
Diameter (mm) | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Screen Dia. (mm) | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 |
Layer | 1-5 | |||||||
Mesh(mm) | 0.025-20 | |||||||
RPM | 1460 | |||||||
Feeding size(mm) | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
Power(kw) | 0.25 | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 |
Technical Details
COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD (www.yongqingtech.com) | |
Establishing time | 2006 |
Company nature | China 0EM, factory. |
Quality certificate | CCC, ISO9001-2008, CE 37-year industry experience 17-year china manufacturer 14-year Alibaba golden supplier 4 field patents |
Main products | Vibration screen, Conveyor system, Vibration motor, Vibration feeder, lab test sieve, Vibration table, etc. |
Exporting countries | More than 120 countries |
