Food Grade Circular Sugar Vibro Sieve

Availability:
Quantity:

Food Grade Circular Sugar Vibro Sieve


Take one model for example

Product name: Vibro Sieve

Application: sugar

Model: XZS-1000-1 (1 layer, 2 outlets)

Diameter: 1000mm

Mesh size: 1mm

Material: all stainless steel 304

Motor: 0.75kw (vertical vibration motor)

Voltage: 380V, 50Hz, 3 phase, 1460rpm

Package: 1150*1150*1080mm

Gross weight: 220KG

Delivery time: 7 days after deposit

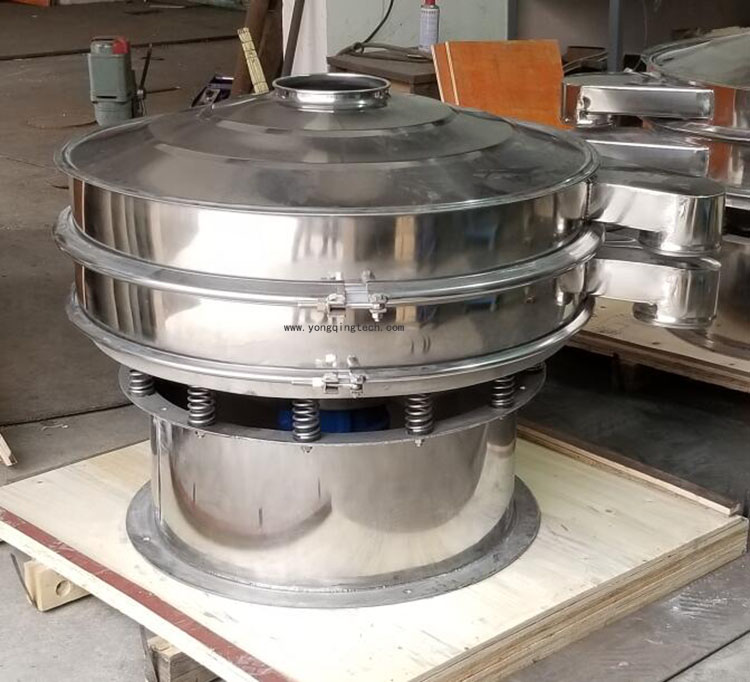

XZS-1000


Principle

working principle

XZS series circular vibro sieve is a high efficiency screening machine manufactured with advanced technologies and designs. It features eco-friendliness, conveninent sifter changing process, low working noise, enclosed structure, high safety and efficiency. It can be used for screening and filtering granular, powdery and serous materials.


Parameters

Model

XZS-

450

XZS-

500

XZS-

600

XZS-

800

XZS-

1000

XZS-

1200

XZS-

1500

XZS-

1800

XZS-

2000

Diameter

(mm)

450

500

600

800

970

1170

1470

1770

1970

Screen Dia.(mm)


φ430

φ530

φ730

φ900

φ1100

φ1400

φ1700

φ1900

Layer

1

1-5

Mesh

(mm)

0.025-20

RPM

1460

Feeding size(mm)

<20

<20

<20

<30

<30

<50

<50

<50

<50

Power (kw)

0.25

0.25

0.25

0.55

0.75

1.1

1.5

2.2

3.0


It has 3 kinds of material and 1-5 layers for choice.

a. Full stainless steel

b. Contact part stainless steel

c. Full carbon steel


Technical Specifications

一层全不锈钢1_01一层全不锈钢1_02一层全不锈钢1_03一层全不锈钢1_04一层全不锈钢1_05一层全不锈钢1_06


Certificates

certificate


COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD   (www.yongqingtech.com)

Establishing time

2006

Company nature

China 0EM, factory.

Quality certificate

CCC, ISO9001-2008, CE

37-year industry   experience

17-year china manufacturer

14-year Alibaba golden supplier

4 field patents

Main products

Vibration screen, Conveyor system, Vibration motor,   Vibration feeder, lab test sieve, Vibration table, etc.

Exporting countries

More than 120   countries
