XZS-800
YONGQING MACHINE
Availability: | |||||||||
---|---|---|---|---|---|---|---|---|---|
Quantity: | |||||||||

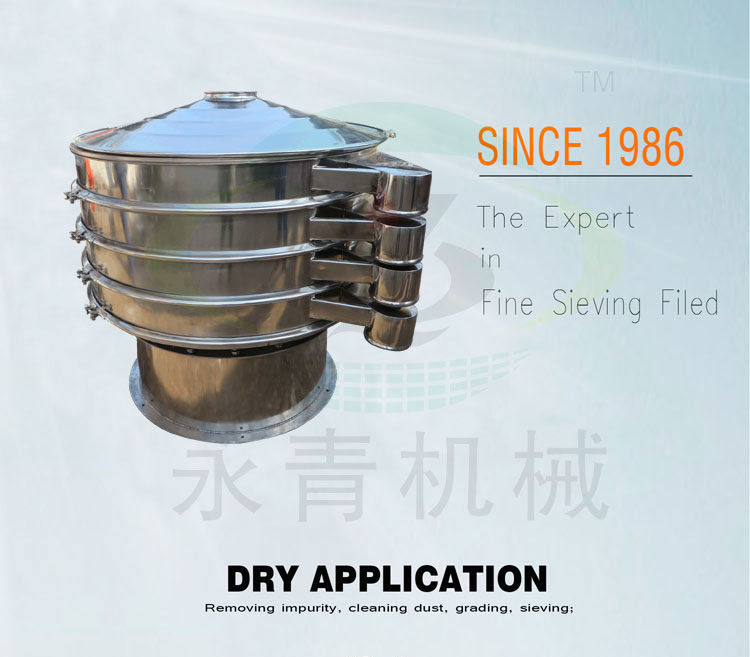

Circular Black Soldier Fly Larvae Vibro Sieve
Introduction
XZS series vibro sieve is a high efficiency screening machine manufactured with advanced technologies and designs. It features eco-friendliness, conveninent sifter changing process, low working noise, enclosed structure, high safety and efficiency. It can be used for screening and filtering granular, powdery and serous materials.

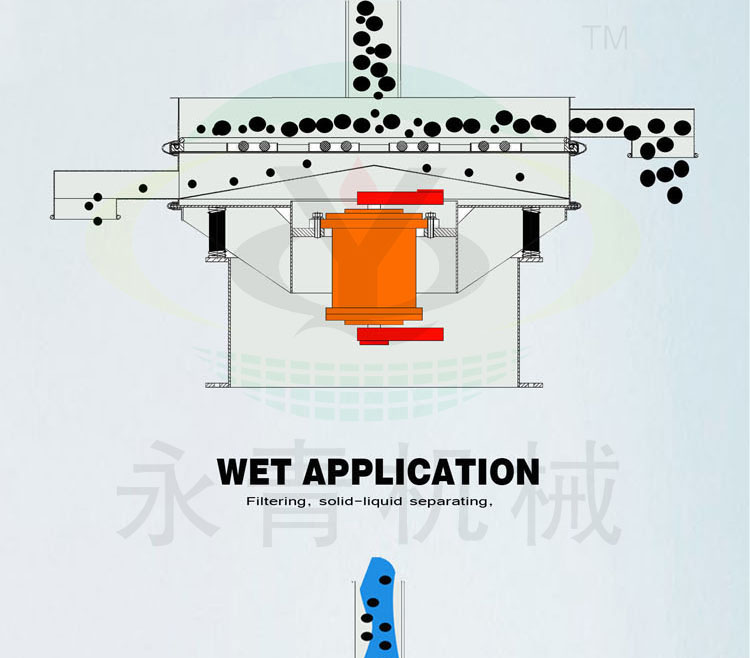

Working Principle
Our circular vibro sieve, as a piece of powdery material screening equipment, uses vertical vibration motor or special vibration exciter as its vibration source. The vibration motor and vibration exciter have an eccentric block at the both upper and lower sides. The eccentric blocks can generate a three-dimensional movement in horizontal, vertical and inclined direction. By adjusting the phase angles of the upper and lower eccentric blocks, the material on the screen can change the movement locus, achieving suitable screening performance.

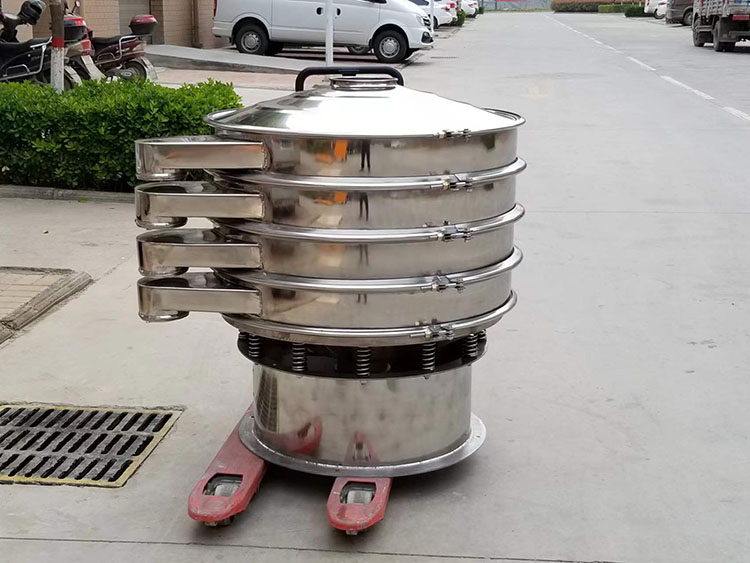

Take a popular model for clients:
Product name: Vibro Sieve
Application: black soldier fly larvae
Model: XZS-1000-3 (3 layers, 4 outlets)
Diameter: 1000mm
Mesh size: 1mm, 2mm, 3mm
Material: all stainless steel 304
Motor: 0.75kw (vertical vibration motor)
Voltage: 380V, 50Hz, 3 phase, 1460rpm
Package: 1150*1150*1250mm
Gross weight: 330KG
Delivery time: 7 days after receiving prepayment
Parameters
Model | XZS- 450 | XZS- 500 | XZS- 600 | XZS- 800 | XZS- 1000 | XZS- 1200 | XZS- 1500 | XZS- 1800 | XZS- 2000 |
Diameter (mm) | 450 | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Screen Dia.(mm) | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 | |
Layer | 1 | 1-5 | |||||||
Mesh (mm) | 0.025-20 | ||||||||
RPM | 1460 | ||||||||
Feeding size(mm) | <20 | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
Power (kw) | 0.25 | 0.25 | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 |
Applications
Technical Specifications
Certificates
COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD (www.yongqingtech.com) | ||
Establishing time | 2006 | |
Company nature | China 0EM, factory. | |
Quality certificate | CCC, ISO9001-2008, CE 37-year industry experience 17-year china manufacturer 14-year Alibaba golden supplier 4 field patents | |
Main products | Vibration screen, Conveyor system, Vibration motor, Vibration feeder, lab test sieve, Vibration table, etc. | |
Exporting countries | More than 120 countries |
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
Circular Black Soldier Fly Larvae Vibro Sieve
Introduction
XZS series vibro sieve is a high efficiency screening machine manufactured with advanced technologies and designs. It features eco-friendliness, conveninent sifter changing process, low working noise, enclosed structure, high safety and efficiency. It can be used for screening and filtering granular, powdery and serous materials.
Working Principle
Our circular vibro sieve, as a piece of powdery material screening equipment, uses vertical vibration motor or special vibration exciter as its vibration source. The vibration motor and vibration exciter have an eccentric block at the both upper and lower sides. The eccentric blocks can generate a three-dimensional movement in horizontal, vertical and inclined direction. By adjusting the phase angles of the upper and lower eccentric blocks, the material on the screen can change the movement locus, achieving suitable screening performance.
Take a popular model for clients:
Product name: Vibro Sieve
Application: black soldier fly larvae
Model: XZS-1000-3 (3 layers, 4 outlets)
Diameter: 1000mm
Mesh size: 1mm, 2mm, 3mm
Material: all stainless steel 304
Motor: 0.75kw (vertical vibration motor)
Voltage: 380V, 50Hz, 3 phase, 1460rpm
Package: 1150*1150*1250mm
Gross weight: 330KG
Delivery time: 7 days after receiving prepayment
Parameters
Model | XZS- 450 | XZS- 500 | XZS- 600 | XZS- 800 | XZS- 1000 | XZS- 1200 | XZS- 1500 | XZS- 1800 | XZS- 2000 |
Diameter (mm) | 450 | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Screen Dia.(mm) | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 | |
Layer | 1 | 1-5 | |||||||
Mesh (mm) | 0.025-20 | ||||||||
RPM | 1460 | ||||||||
Feeding size(mm) | <20 | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
Power (kw) | 0.25 | 0.25 | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 |
Applications
Technical Specifications
Certificates
COMPANY---XINXIANG YONGQING SCREEN MACHINE CO., LTD (www.yongqingtech.com) | ||
Establishing time | 2006 | |
Company nature | China 0EM, factory. | |
Quality certificate | CCC, ISO9001-2008, CE 37-year industry experience 17-year china manufacturer 14-year Alibaba golden supplier 4 field patents | |
Main products | Vibration screen, Conveyor system, Vibration motor, Vibration feeder, lab test sieve, Vibration table, etc. | |
Exporting countries | More than 120 countries |
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
