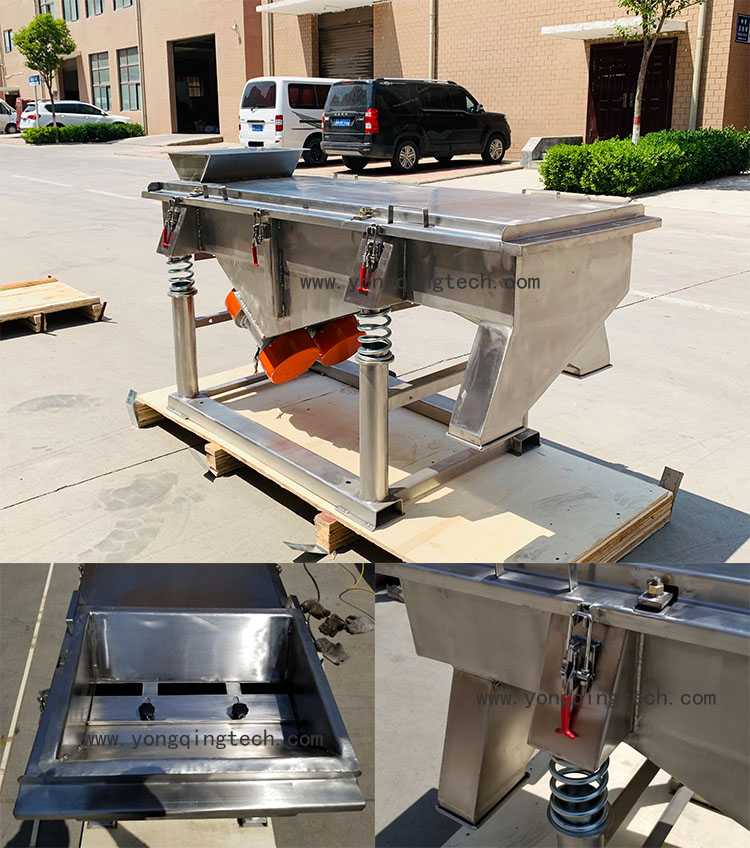

Black Soldier Fly Larvae Linear Vibro Sifter
Product name: Vibro Sieve
Application: remove the impurities in black soldier fly larvae
Model: DZSF-520
Screening Area: 500*2000mm
Layer: 2 layers, 3 outlets
Mesh size: 2mm, 3mm
Mesh material: stainless steel woven wire mesh
Machine Material: all stainless steel except for legs
Motor: 0.4KW * 2 motors (horizontal vibration motor)
Voltage: 380V, 50Hz, 3 phase, 960rpm
Package: 2600*800*1200mm
Gross weight: 420KG
Delivery time: 7 days after receiving prepayment
Applications
Parameters
Layer | Screening Area(mm) | Mesh (mm) | Particle Size(mm) | Capacity (t/h) | Power (kw) | Dual Amplitude | |
DZSF-612 | 1-5 | 600*1200 | 0.074 -20 | ≤20 | ≤3 | 0.25×2 | 6-8 mm |
DZSF-520 | 500*2000 | ≤5 | 0.37×2 | ||||
DZSF-525 | 500*2500 | ≤8 | 0.37×2 | ||||
DZSF-1020 | 1000*2000 | ≤12 | 0.75×2 | ||||
DZSF-1025 | 1000*2500 | ≤16 | 0.75×2 | ||||
DZSF-1030 | 1000*3000 | ≤20 | 1.1×2 | ||||
DZSF-1224 | 1200*2400 | ≤23 | 1.5×2 | ||||
DZSF-1525 | 1500*2500 | ≤28 | 1.5×2 | ||||
DZSF-1530 | 1500*3000 | ≤32 | 2.2×2 | ||||
DZSF-1540 | 1500*4000 | ≤36 | 3×2 |
Note: the data above refers to bulk density 1.5t/m3, 1 layer, mesh size 5mm.

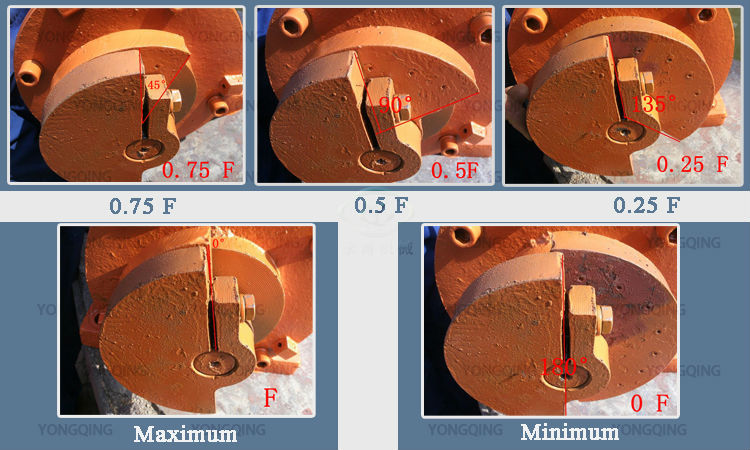

The adjustment of exciting force(F)
1. Exciting force is a main factor that affects the linear vibrating sieve’s productivity. Productivity and exciting force make exponential relationship.
2. The increasing of the vibrating force will arouse the rapid increasing of productivity. While, the blockage rate fell rapidly with the increasing of excitation force.
3. Increasing exciting force will cause increased vibration intensity. Vibrating motor’s exciting force is centrifugal force generated by the eccentric block's high rotating speed.
4. By adjusting the eccentric distance, thus changing the amplitude of the exciting force in order to achieve adjusting the excitation force. By adjusting the size of the exciting force, so as to achieve the highest productivity effect, extend the life of the vibrating motor.
Technical Specifications
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
Black Soldier Fly Larvae Linear Vibro Sifter
Product name: Vibro Sieve
Application: remove the impurities in black soldier fly larvae
Model: DZSF-520
Screening Area: 500*2000mm
Layer: 2 layers, 3 outlets
Mesh size: 2mm, 3mm
Mesh material: stainless steel woven wire mesh
Machine Material: all stainless steel except for legs
Motor: 0.4KW * 2 motors (horizontal vibration motor)
Voltage: 380V, 50Hz, 3 phase, 960rpm
Package: 2600*800*1200mm
Gross weight: 420KG
Delivery time: 7 days after receiving prepayment
Applications
Parameters
Layer | Screening Area(mm) | Mesh (mm) | Particle Size(mm) | Capacity (t/h) | Power (kw) | Dual Amplitude | |
DZSF-612 | 1-5 | 600*1200 | 0.074 -20 | ≤20 | ≤3 | 0.25×2 | 6-8 mm |
DZSF-520 | 500*2000 | ≤5 | 0.37×2 | ||||
DZSF-525 | 500*2500 | ≤8 | 0.37×2 | ||||
DZSF-1020 | 1000*2000 | ≤12 | 0.75×2 | ||||
DZSF-1025 | 1000*2500 | ≤16 | 0.75×2 | ||||
DZSF-1030 | 1000*3000 | ≤20 | 1.1×2 | ||||
DZSF-1224 | 1200*2400 | ≤23 | 1.5×2 | ||||
DZSF-1525 | 1500*2500 | ≤28 | 1.5×2 | ||||
DZSF-1530 | 1500*3000 | ≤32 | 2.2×2 | ||||
DZSF-1540 | 1500*4000 | ≤36 | 3×2 |
Note: the data above refers to bulk density 1.5t/m3, 1 layer, mesh size 5mm.
The adjustment of exciting force(F)
1. Exciting force is a main factor that affects the linear vibrating sieve’s productivity. Productivity and exciting force make exponential relationship.
2. The increasing of the vibrating force will arouse the rapid increasing of productivity. While, the blockage rate fell rapidly with the increasing of excitation force.
3. Increasing exciting force will cause increased vibration intensity. Vibrating motor’s exciting force is centrifugal force generated by the eccentric block's high rotating speed.
4. By adjusting the eccentric distance, thus changing the amplitude of the exciting force in order to achieve adjusting the excitation force. By adjusting the size of the exciting force, so as to achieve the highest productivity effect, extend the life of the vibrating motor.
Technical Specifications
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
