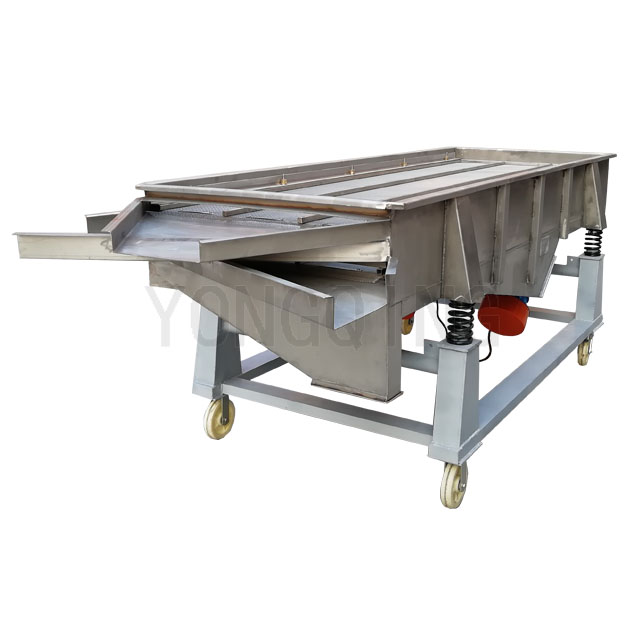

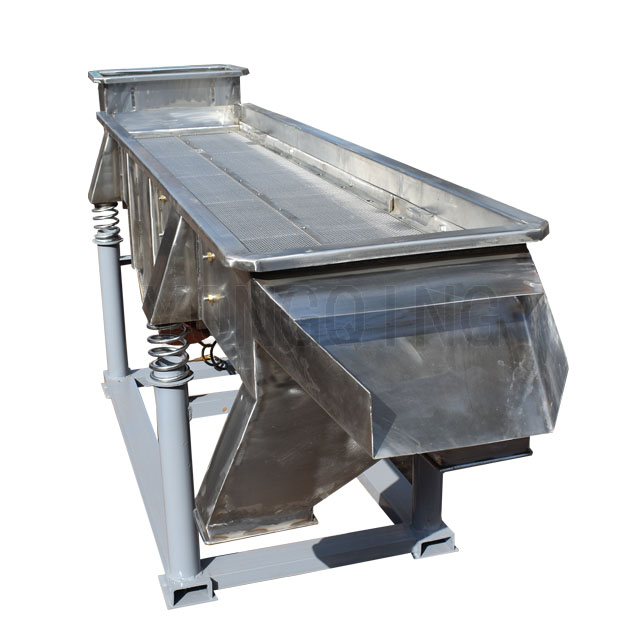

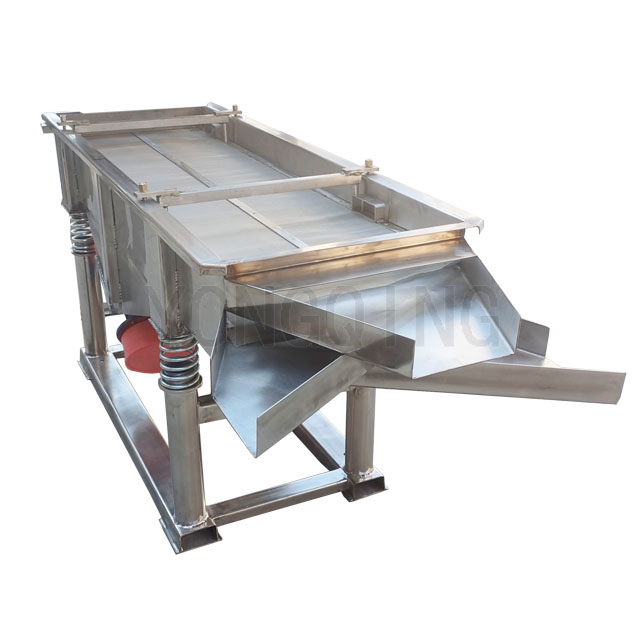

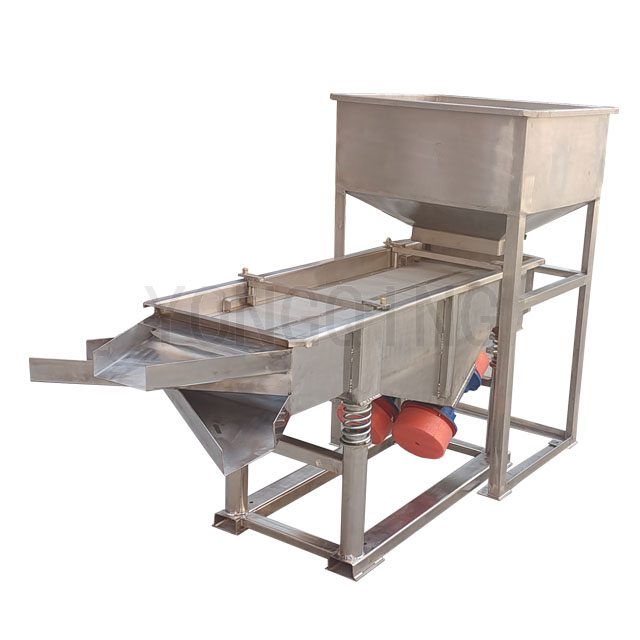

BSF Larvae vibro screen separator
YongQing DZSF series linear vibrating screen machine is a electric vibrating machine with sieves. this vibrating screen mainly used for sizing/sorting different size of particles, to remove fine dust, to separate oversize impurities ,to sorting sizes etc.

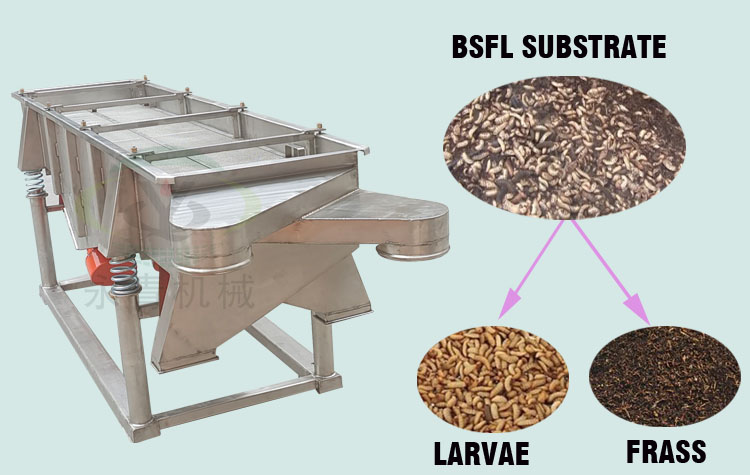

The DZSF series vibro screen separator is widely used for black sodier fly (BSF) larvae separation process. to separate bsfl from frass or substrate. the linear vibrator screen separator keep the larvae and frass move forward on the screen and separate them by screen vibration, then discharge from individual outlets
Mostly we make the bsf larvae screen separator stainless steel 304 structure materail, or at least contact part stainless steel 304 structure material, to make it long service life, especially for moist processed raw materials.

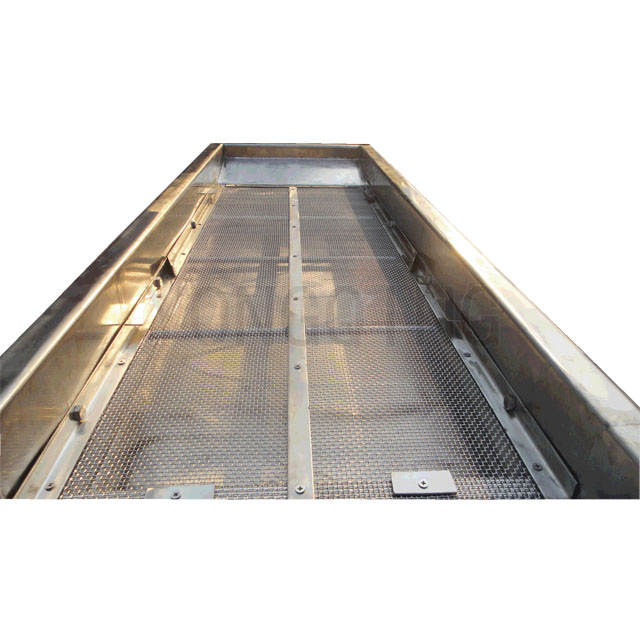

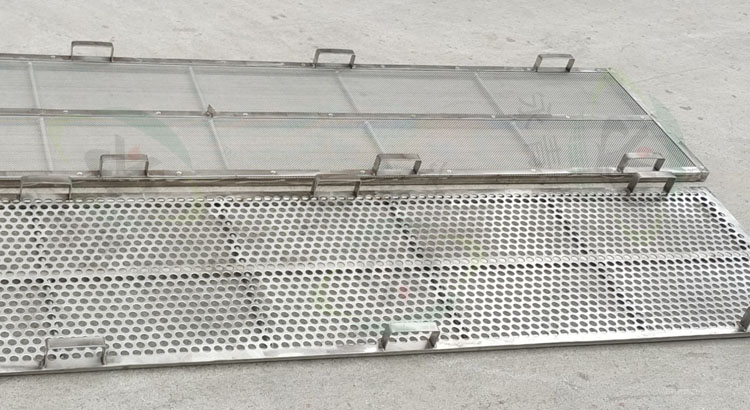

To separate black soldier fly larvae from the feedstock, customers usually use round perforated hole mesh screens or woven wire square mesh screens.
Plywood case package
There are various size models of the BSFL vibro screen for different process capacities, please contact to get suitable screen separator machine.
Model | Layer | Power (KW) | Screen size (mm) | Mesh size | rotate speed (rpm) |
double amplitude (mm) | inclined angle (°) |
DZSF-612 | 1—5 | 0.37*2 | 600×1200 | #2—#325 | 1460/960 | 6-10 | 0—10 |
DZSF—520 | 1—5 | 0.37*2 | 500×2000 | ||||
DZSF—525 | 1—5 | 0.37*2 | 500×2500 | ||||
DZSF-1020 | 1—5 | 0.75*2 | 1000×2000 | ||||
DZSF—1025 | 1—5 | 0.75*2 | 1000×2500 | ||||
DZSF—1030 | 1—5 | 1.1*2 | 1000×3000 | ||||
DZSF—1224 | 1—4 | 1.5*2 | 1200×2400 | ||||
DZSF—1525 | 1—3 | 1.5*2 | 1500×2500 | ||||
DZSF—1530 | 1—3 | 2.2*2 | 1500×3000 |
BSF Larvae vibro screen separator
YongQing DZSF series linear vibrating screen machine is a electric vibrating machine with sieves. this vibrating screen mainly used for sizing/sorting different size of particles, to remove fine dust, to separate oversize impurities ,to sorting sizes etc.
The DZSF series vibro screen separator is widely used for black sodier fly (BSF) larvae separation process. to separate bsfl from frass or substrate. the linear vibrator screen separator keep the larvae and frass move forward on the screen and separate them by screen vibration, then discharge from individual outlets
Mostly we make the bsf larvae screen separator stainless steel 304 structure materail, or at least contact part stainless steel 304 structure material, to make it long service life, especially for moist processed raw materials.
To separate black soldier fly larvae from the feedstock, customers usually use round perforated hole mesh screens or woven wire square mesh screens.
Plywood case package
There are various size models of the BSFL vibro screen for different process capacities, please contact to get suitable screen separator machine.
Model | Layer | Power (KW) | Screen size (mm) | Mesh size | rotate speed (rpm) |
double amplitude (mm) | inclined angle (°) |
DZSF-612 | 1—5 | 0.37*2 | 600×1200 | #2—#325 | 1460/960 | 6-10 | 0—10 |
DZSF—520 | 1—5 | 0.37*2 | 500×2000 | ||||
DZSF—525 | 1—5 | 0.37*2 | 500×2500 | ||||
DZSF-1020 | 1—5 | 0.75*2 | 1000×2000 | ||||
DZSF—1025 | 1—5 | 0.75*2 | 1000×2500 | ||||
DZSF—1030 | 1—5 | 1.1*2 | 1000×3000 | ||||
DZSF—1224 | 1—4 | 1.5*2 | 1200×2400 | ||||
DZSF—1525 | 1—3 | 1.5*2 | 1500×2500 | ||||
DZSF—1530 | 1—3 | 2.2*2 | 1500×3000 |
