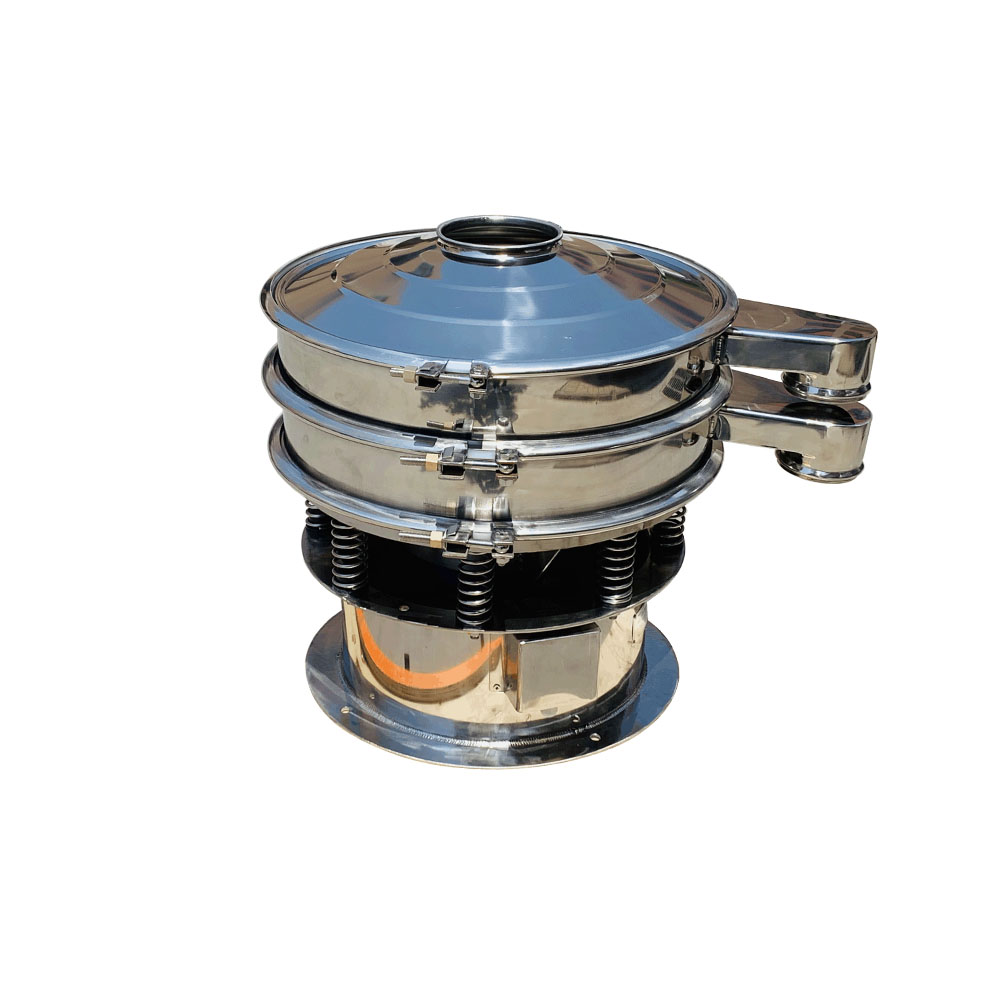

Automatic Electric Rotary Fruit Juice Vibro Sieve
Product name: Vibro Sieve
Application: orange juice, pineapple juice, apple juice, etc.
Model: XZS-600-1(1 layer)
Diameter: 600mm
Mesh size: 0.15mm
Material: all stainless steel 304
Motor: 0.25kw (vertical vibration motor)
Voltage: 380V, 50Hz, 3 phase, 1460rpm

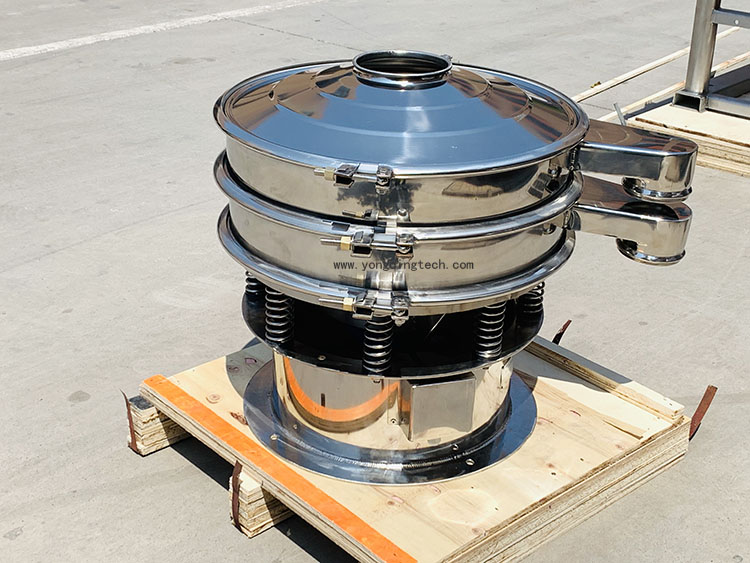

Package: 750*750*720mm
Gross weight: 130KG
Delivery time: 7 days after receiving prepayment
Introduction
XZS series rotary vibro sieve is a high efficiency screening machine manufactured with advanced technologies and designs. It features eco-friendliness, conveninent sifter changing process, low working noise, enclosed structure, high safety and efficiency. It can be used for screening and filtering granular, powdery and serous materials.
It has 3 kinds of material and 1-5 layers for choice.
a. Full stainless steel
b. Contact part stainless steel
c. Full carbon steel
Applications
A. Dry separation
- Separation of different materials on the basis of their particle shape
- Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
B. Dry classification
- Separation of solid particles into precise sized fractions
- Food, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives.
C. Solid/Liquid separation
- Dewatering of solids and clarification of liquids
- Foods, chemicals, pulp
D. Solids classification in liquid medium
- Separation of solids into sized fraction in a liquid medium
- Chemicals, minerals, pulp and paper, ceramics, waste disposal
Parameters
XZS- 450 | XZS- 500 | XZS- 600 | XZS- 800 | XZS- 1000 | XZS- 1200 | XZS- 1500 | XZS- 1800 | XZS- 2000 | |
Diameter (mm) |
450 | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Screen Dia.(mm) | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 | |
Layer | 1 | 1-5 | |||||||
Mesh (mm) | 0.025-20 | ||||||||
RPM | 1460 | ||||||||
Feeding size(mm) | <20 | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
Power (kw) | 0.25 | 0.25 | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 |
Technical Specifications
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
Automatic Electric Rotary Fruit Juice Vibro Sieve
Product name: Vibro Sieve
Application: orange juice, pineapple juice, apple juice, etc.
Model: XZS-600-1(1 layer)
Diameter: 600mm
Mesh size: 0.15mm
Material: all stainless steel 304
Motor: 0.25kw (vertical vibration motor)
Voltage: 380V, 50Hz, 3 phase, 1460rpm
Package: 750*750*720mm
Gross weight: 130KG
Delivery time: 7 days after receiving prepayment
Introduction
XZS series rotary vibro sieve is a high efficiency screening machine manufactured with advanced technologies and designs. It features eco-friendliness, conveninent sifter changing process, low working noise, enclosed structure, high safety and efficiency. It can be used for screening and filtering granular, powdery and serous materials.
It has 3 kinds of material and 1-5 layers for choice.
a. Full stainless steel
b. Contact part stainless steel
c. Full carbon steel
Applications
A. Dry separation
- Separation of different materials on the basis of their particle shape
- Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
B. Dry classification
- Separation of solid particles into precise sized fractions
- Food, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives.
C. Solid/Liquid separation
- Dewatering of solids and clarification of liquids
- Foods, chemicals, pulp
D. Solids classification in liquid medium
- Separation of solids into sized fraction in a liquid medium
- Chemicals, minerals, pulp and paper, ceramics, waste disposal
Parameters
XZS- 450 | XZS- 500 | XZS- 600 | XZS- 800 | XZS- 1000 | XZS- 1200 | XZS- 1500 | XZS- 1800 | XZS- 2000 | |
Diameter (mm) |
450 | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
Screen Dia.(mm) | φ430 | φ530 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 | |
Layer | 1 | 1-5 | |||||||
Mesh (mm) | 0.025-20 | ||||||||
RPM | 1460 | ||||||||
Feeding size(mm) | <20 | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
Power (kw) | 0.25 | 0.25 | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 |
Technical Specifications
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
