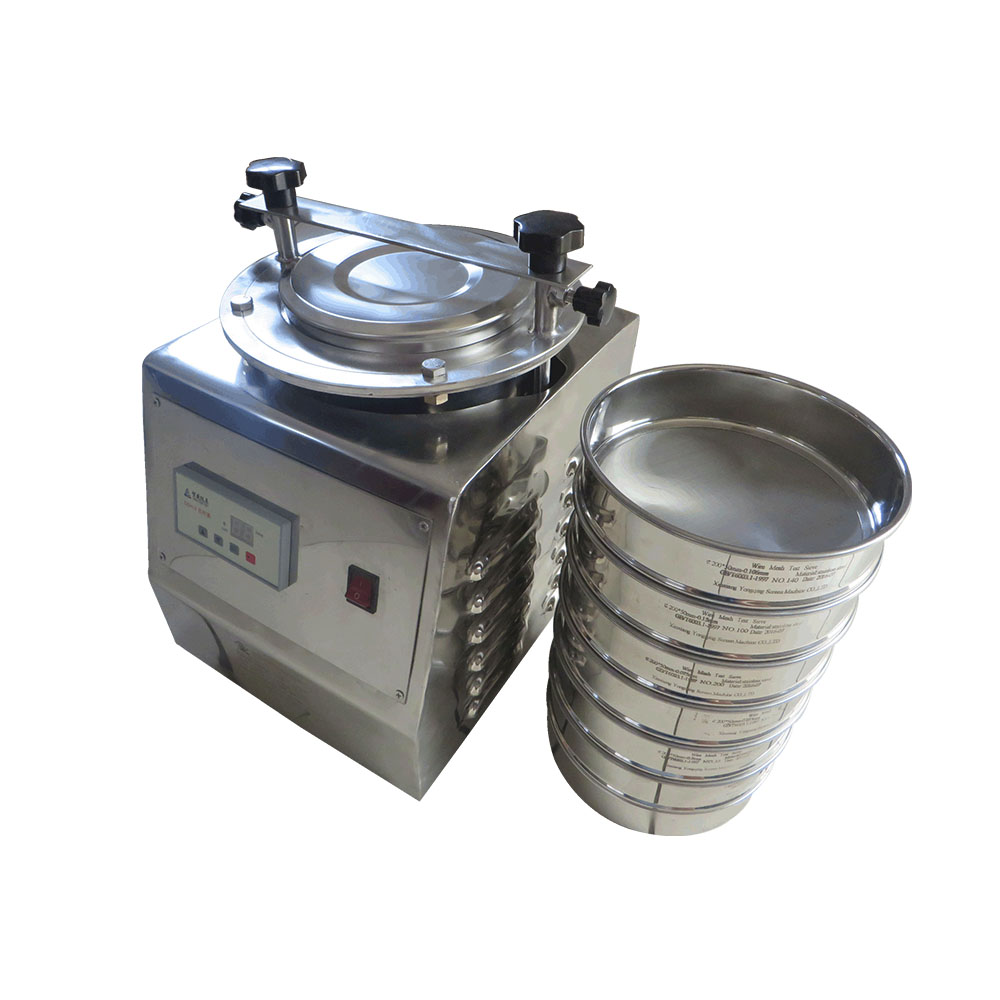

8 Inch Lab Standard Test Vibro Sieve Shaker
Introduction
Our SY-200/SY-300 test vibro sieve shaker, as a standard lab sieving machine, can be used for grading powder and granule, and filtering fluid in laboratories and testing rooms. With this filtering device, you can precisely analyze the granularity and powdery materials, and determine the solid content and impurity content in fluids.
Product name: Test vibro sieve shaker
Application: powder/granule analysis, grading, sizing
Model: SY-200
Diameter: 200mm

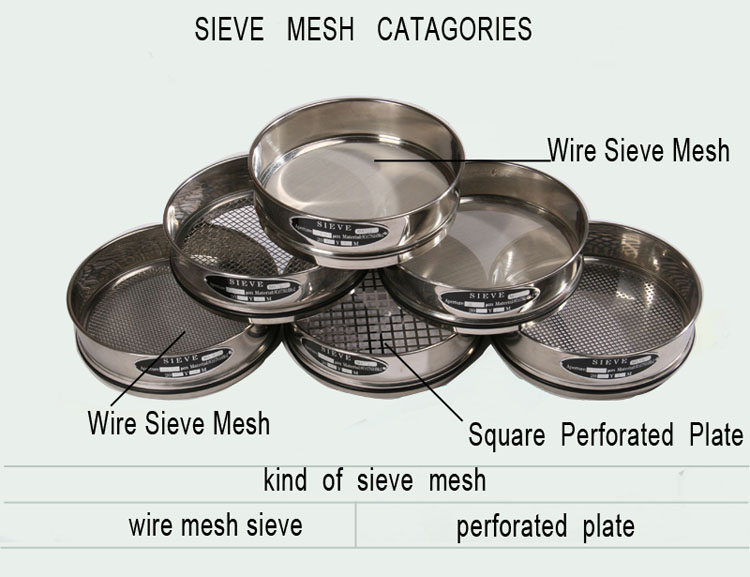

Mesh size:

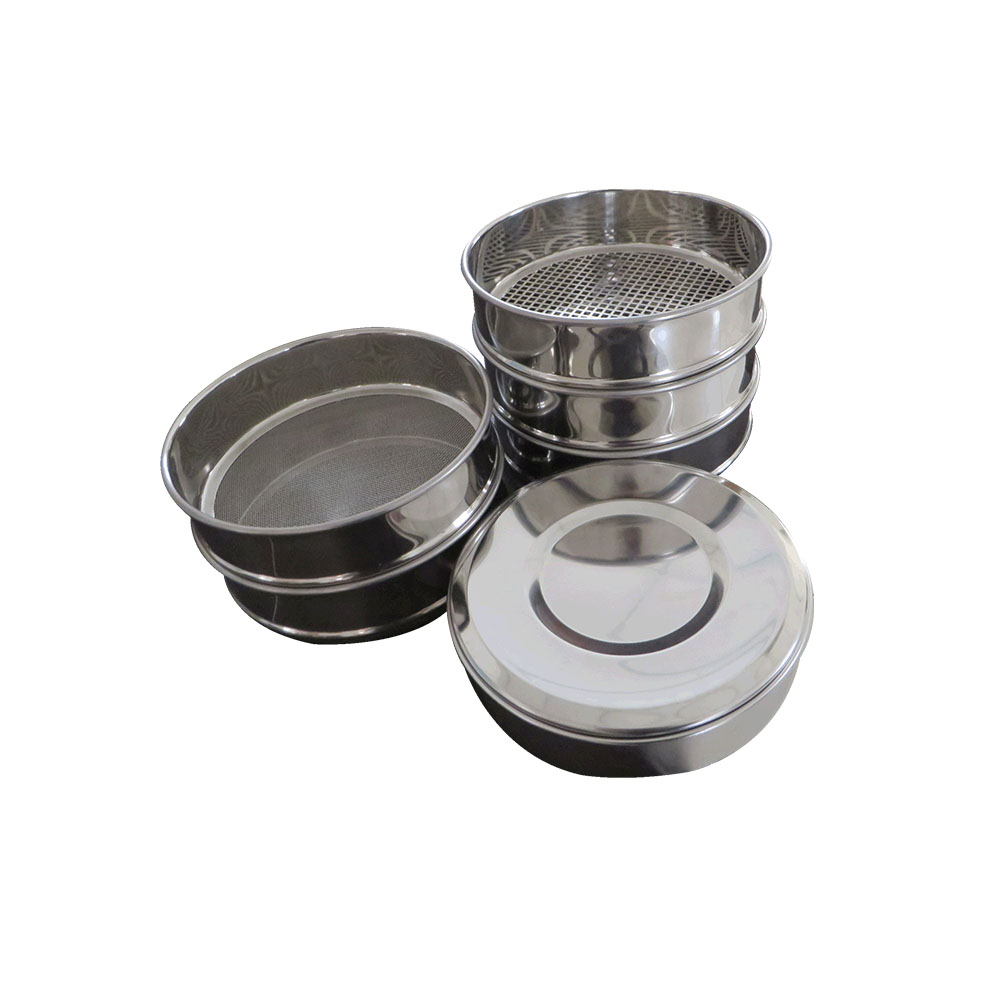

1. Stainless steel woven wire mesh from 3 microns to 4mm
2. Punched hole from 1mm to 63mm
Material: all stainless steel 304
Motor: 0.12kw
Voltage: 380V, 50Hz, 3 phase, 1460rpm
Package: 600*500*450mm
Gross weight: 60KG
Delivery time: 7 days after receiving prepayment
Parameters
Commodity | Units | Specification | ||
1 | Sieves | Layer | 5 | |
2 | Sieve dimension | mm | 200*50 | |
3 | Feeding size | mm | 0.02~30 | |
4 | Noise | dB | ≤50 | |
5 | Feeding batch | g/time | ≤200 | |
6 | Amplitude | mm | ≤5 | |
7 |
Motor | Voltage | V | 220V |
Rotating | rpm | 1460 | ||
Power | kw | 0.12 | ||
8 | Dimension | mm | 360*300*470 | |
9 | Weight | Kg | 42 | |
